Tool Holders / High Feed Milling Tools (ARBOR Type)
AHFMC-JD1204-D100-A32-Z07-H
AHFMC-JD series · see all 7 sizes
Insert compatibility
This size is built for the insert designation JDMW 1204 (as listed in the catalogue data).

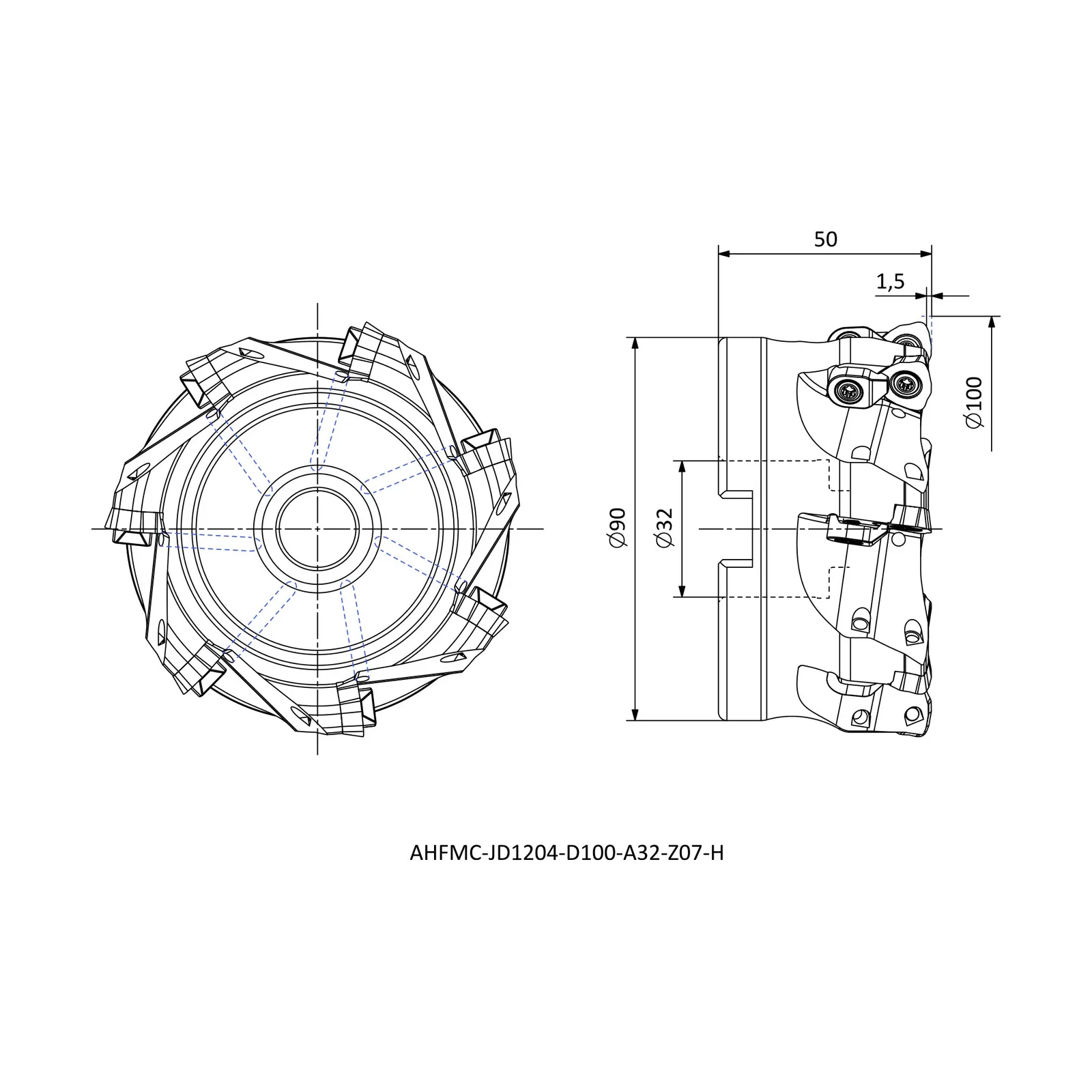

Specifications — AHFMC-JD1204-D100-A32-Z07-H
| Insert Code | Insert designation | JDMW 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 50 |
| DCX | Maximum diameter (mm) | 100 |
| ZEFP | Effective cutting edges | 7 |
| APMX | Depth of cut, maximum (mm) | 1.5 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 7 sizes in AHFMC-JD
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AHFMC-JD1204-D052-A22-Z03-H | R | 22 | 50 | 52 |
| AHFMC-JD1204-D052-A22-Z04-H | R | 22 | 50 | 52 |
| AHFMC-JD1204-D063-A22-Z05-H | R | 22 | 50 | 63 |
| AHFMC-JD1204-D080-A27-Z06-H | R | 27 | 50 | 80 |
| AHFMC-JD1204-D100-A32-Z07-H | R | 32 | 50 | 100 |
| AHFMC-JD1405-D052-A22-Z03-H | R | 22 | 40 | 52 |
| AHFMC-JD1405-D063-A22-Z04-H | R | 22 | 40 | 63 |
