Tool Holders / High Feed Milling Tools (ARBOR Type)
AHFMC-WD1205-D052-A22-Z04-H
AHFMC-WD series · see all 6 sizes
Insert compatibility
This size is built for the insert designation WDMT 1205 (as listed in the catalogue data).

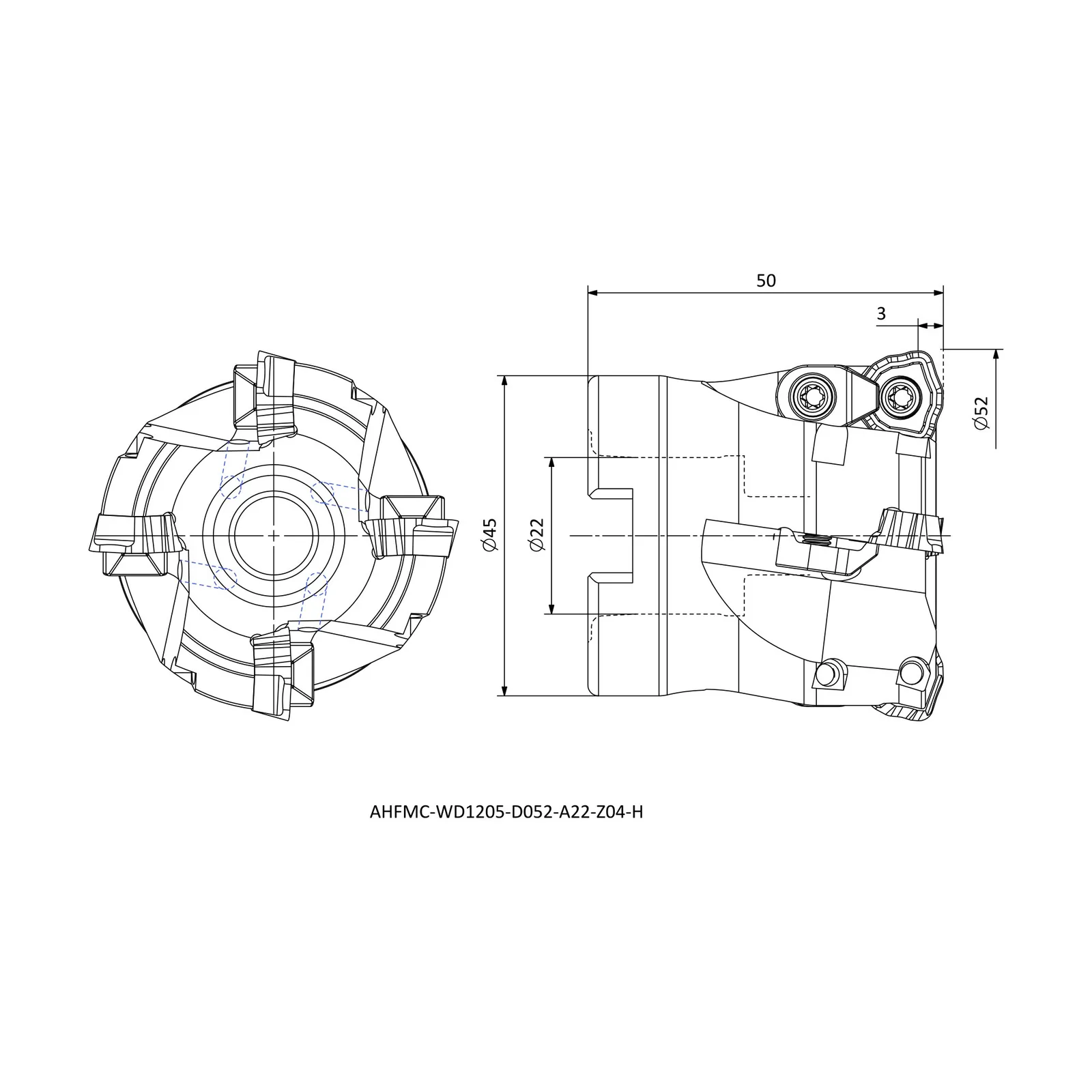

Specifications — AHFMC-WD1205-D052-A22-Z04-H
| Insert Code | Insert designation | WDMT 1205.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 22 |
| LF | Functional length (mm) | 50 |
| DCX | Maximum diameter (mm) | 52 |
| ZEFP | Effective cutting edges | 4 |
| APMX | Depth of cut, maximum (mm) | 3 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in AHFMC-WD
