Tool Holders / Internal Threading Toolholders

SIL A16X13M 16

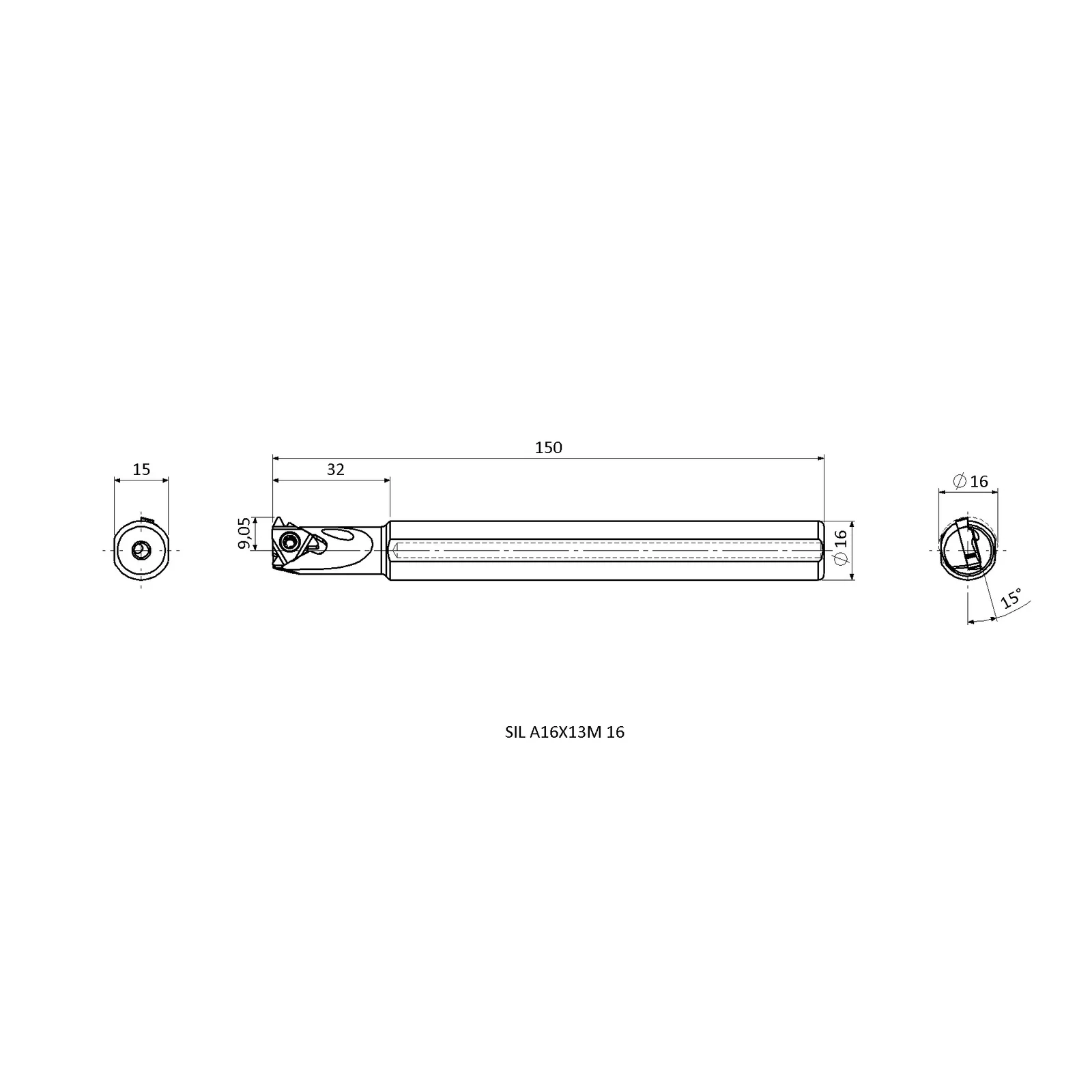

Name: SIL A16X13M 16
Brand: Axior
SKU: SIL A16X13M 16

SIR/L series · see all 58 sizes

This size is built for the insert designation 16 (as listed in the catalogue data).

Specifications — SIL A16X13M 16

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Connection diameter (mm)	Bore diameter (mm)	Functional length (mm)
SIL A12K 11	L	12	12	125
SIR A12K 11	R	12	12	125
SIL A10H 11	L	10	10	100
SIR A10H 11	R	10	10	100
SIL S12X05H 06	L	12	5	100
SIR S12X05H 06	R	12	5	100
SIL S16X05H 06	L	16	5	100
SIR S16X05H 06	R	16	5	100
SIL S16X07M 08	L	16	7	150
SIR S16X07M 08	R	16	7	150
SIL S10H 11	L	10	10	100
SIR S10H 11	R	10	10	100
SIL S12K 11	L	12	12	125
SIR S12K 11	R	12	12	125
SIL S16X10M 11	L	16	10	150
SIR S16X10M 11	R	16	10	150
SIL S16X13M 11	L	16	13	150
SIR S16X13M 11	R	16	13	150
SIL S16M 11	L	16	16	150
SIR S16M 11	R	16	16	150
SIL A16X13M 16	L	16	12.8	150
SIR A16X13M 16	R	16	12.8	150
SIL S16X13M 16	L	16	13	150
SIR S16X13M 16	R	16	13	150
SIL S16M 16	L	16	16	150
SIR S16M 16	R	16	16	150
SIL S20X16P 16	L	20	16	170
SIR S20X16P 16	R	20	16	170
SIL A20X16P 16	L	20	16	170
SIR A20X16P 16	R	20	16	170
SIL S20P 16	L	20	20	170
SIR S20P 16	R	20	20	170
SIL S25R 16C	L	25	25	200
SIR S25R 16C	R	25	25	200
SIL S32S 16C	L	32	32	250
SIR S32S 16C	R	32	32	250
SIL S40T 16C	L	40	40	300
SIR S40T 16C	R	40	40	300
SIL S50U 16C	L	50	50	350
SIR S50U 16C	R	50	50	350
SIL S20P 22	L	20	20	170
SIR S20P 22	R	20	20	170
SIL S25R 22C	L	25	25	200
SIR S25R 22C	R	25	25	200
SIL S32S 22C	L	32	32	250
SIR S32S 22C	R	32	32	250
SIL S40T 22C	L	40	40	300
SIR S40T 22C	R	40	40	300
SIL S50U 22C	L	50	50	350
SIR S50U 22C	R	50	50	350
SIL S25R 16C-T	L	25	25	200
SIR S25R 16C-T	R	25	25	200
SIL S32S 16C-T	L	32	32	250
SIR S32S 16C-T	R	32	32	250
SIL S25R 22C-T	L	25	25	200
SIR S25R 22C-T	R	25	25	200
SIL S32S 22C-T	L	32	32	250
SIR S32S 22C-T	R	32	32	250
