Tool Holders / Internal Threading Toolholders
TIL S50U 16
TIR/L series · see all 30 sizes
Insert compatibility
This size is built for the insert designation 16 (as listed in the catalogue data).

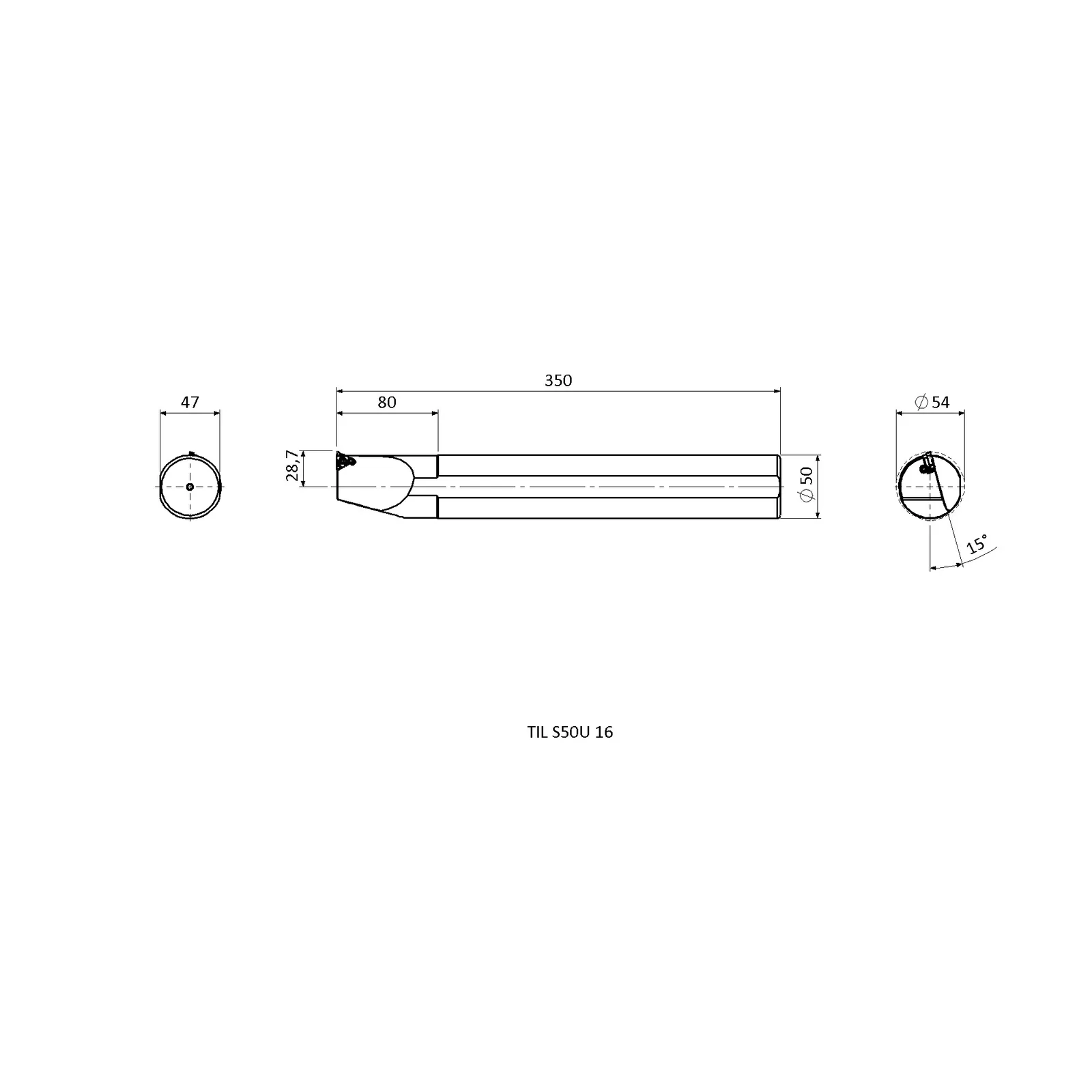

Specifications — TIL S50U 16
| Insert Code | Insert designation | 16 IL |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| DCON | Connection diameter (mm) | 50 |
| LF | Functional length (mm) | 350 |
| WF | Functional width (mm) | 28.7 |
| H | Shank height (mm) | 47 |
| D min | Minimum working diameter (mm) | 54 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 30 sizes in TIR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| TIL S25R 16 | L | 25 | 200 | 16.2 |
| TIR S25R 16 | R | 25 | 200 | 16.2 |
| TIL S32S 16 | L | 32 | 250 | 19.7 |
| TIR S32S 16 | R | 32 | 250 | 19.7 |
| TIL S40T 16 | L | 40 | 300 | 23.7 |
| TIR S40T 16 | R | 40 | 300 | 23.7 |
| TIL S50U 16 | L | 50 | 350 | 28.7 |
| TIR S50U 16 | R | 50 | 350 | 28.7 |
| TIL S25R 22 | L | 25 | 200 | 18.1 |
| TIR S25R 22 | R | 25 | 200 | 18.1 |
| TIL S32S 22 | L | 32 | 250 | 21.5 |
| TIR S32S 22 | R | 32 | 250 | 21.6 |
| TIL S40T 22 | L | 40 | 300 | 25.6 |
| TIR S40T 22 | R | 40 | 300 | 25.6 |
| TIL S50U 22 | L | 50 | 350 | 30.6 |
| TIR S50U 22 | R | 50 | 350 | 30.6 |
| TIL S32S 27 | L | 32 | 250 | 22.6 |
| TIR S32S 27 | R | 32 | 250 | 22.6 |
| TIL S40T 27 | L | 40 | 300 | 26.6 |
| TIR S40T 27 | R | 40 | 300 | 26.6 |
| TIL S50U 27 | L | 50 | 350 | 31.6 |
| TIR S50U 27 | R | 50 | 350 | 31.6 |
| TIL A20P 16 | L | 20 | 170 | 18 |
| TIR A20P 16 | R | 20 | 170 | 18 |
| TIL A25R 16 | L | 25 | 200 | 16.2 |
| TIR A25R 16 | R | 25 | 200 | 16.2 |
| TIL A32S 16 | L | 32 | 250 | 19.7 |
| TIR A32S 16 | R | 32 | 250 | 19.7 |
| TIL A40T 16 | L | 40 | 300 | 23.9 |
| TIR A40T 16 | R | 40 | 300 | 23.9 |
