Tool Holders / M-System Boring Bars
S50V MDUNL 15
MDUNR/L series · see all 14 sizes
Insert compatibility
This size is built for the insert designation DNM. 1506 (as listed in the catalogue data).

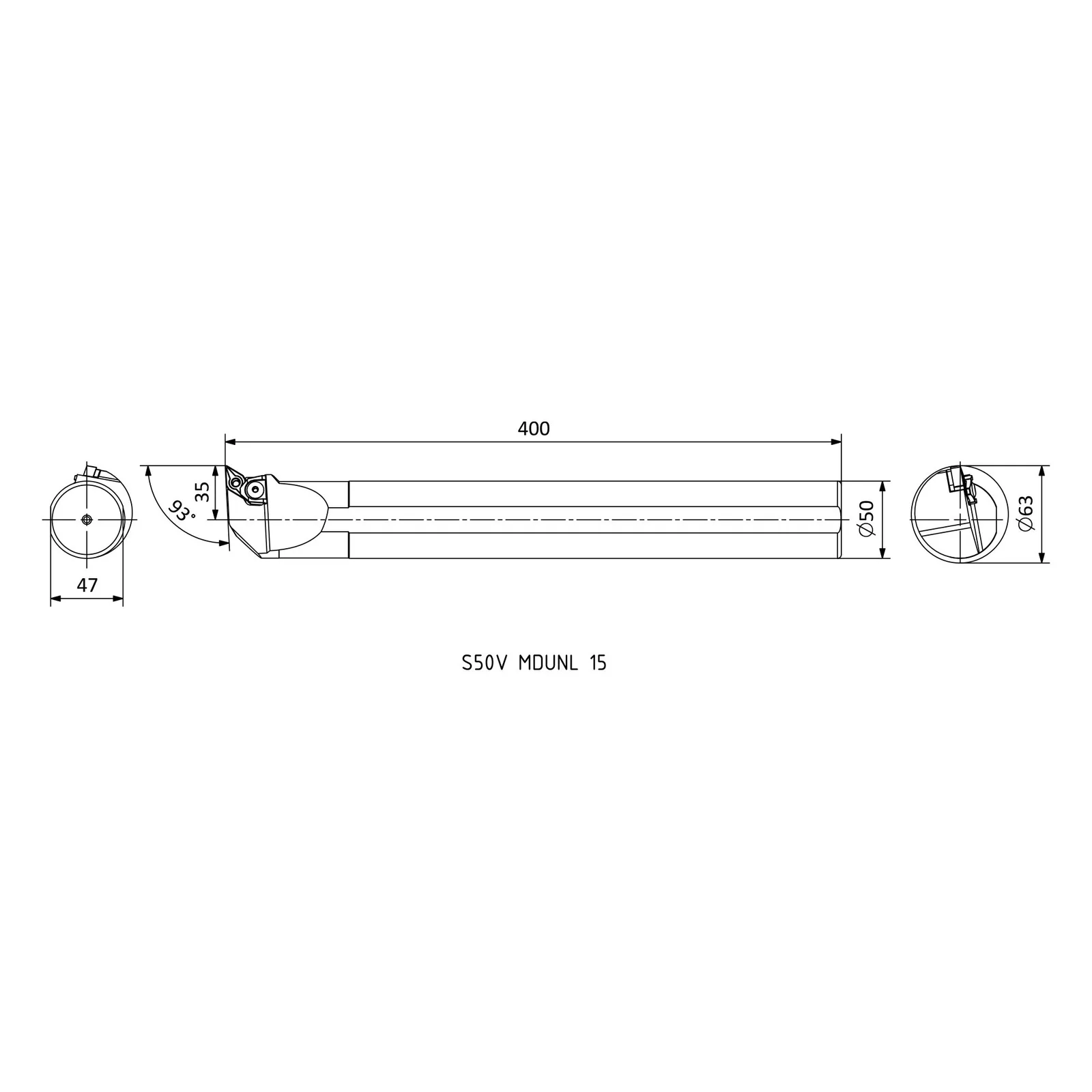

Specifications — S50V MDUNL 15
| Insert Code | Insert designation | DNM. 1506.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| DCON | Connection diameter (mm) | 50 |
| LF | Functional length (mm) | 400 |
| WF | Functional width (mm) | 35 |
| H | Shank height (mm) | 47 |
| D min | Minimum working diameter (mm) | ≥63 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 14 sizes in MDUNR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S20R MDUNL 11 | L | 20 | 200 | 13 |
| S20R MDUNR 11 | R | 20 | 200 | 13 |
| S25S MDUNL 11 | L | 25 | 250 | 17 |
| S25S MDUNR 11 | R | 25 | 250 | 17 |
| S32T MDUNL 11 | L | 32 | 300 | 22 |
| S32T MDUNR 11 | R | 32 | 300 | 22 |
| S25S MDUNL 15 | L | 25 | 250 | 17 |
| S25S MDUNR 15 | R | 25 | 250 | 17 |
| S32T MDUNL 15 | L | 32 | 300 | 22 |
| S32T MDUNR 15 | R | 32 | 300 | 22 |
| S40U MDUNL 15 | L | 40 | 350 | 27 |
| S40U MDUNR 15 | R | 40 | 350 | 27 |
| S50V MDUNL 15 | L | 50 | 400 | 35 |
| S50V MDUNR 15 | R | 50 | 400 | 35 |
