Tool Holders / M-System External Turning Toolholders
MTJNR 3232 P22
MTJNR/L series · see all 12 sizes
Insert compatibility
This size is built for the insert designation TNM. 2204 (as listed in the catalogue data).

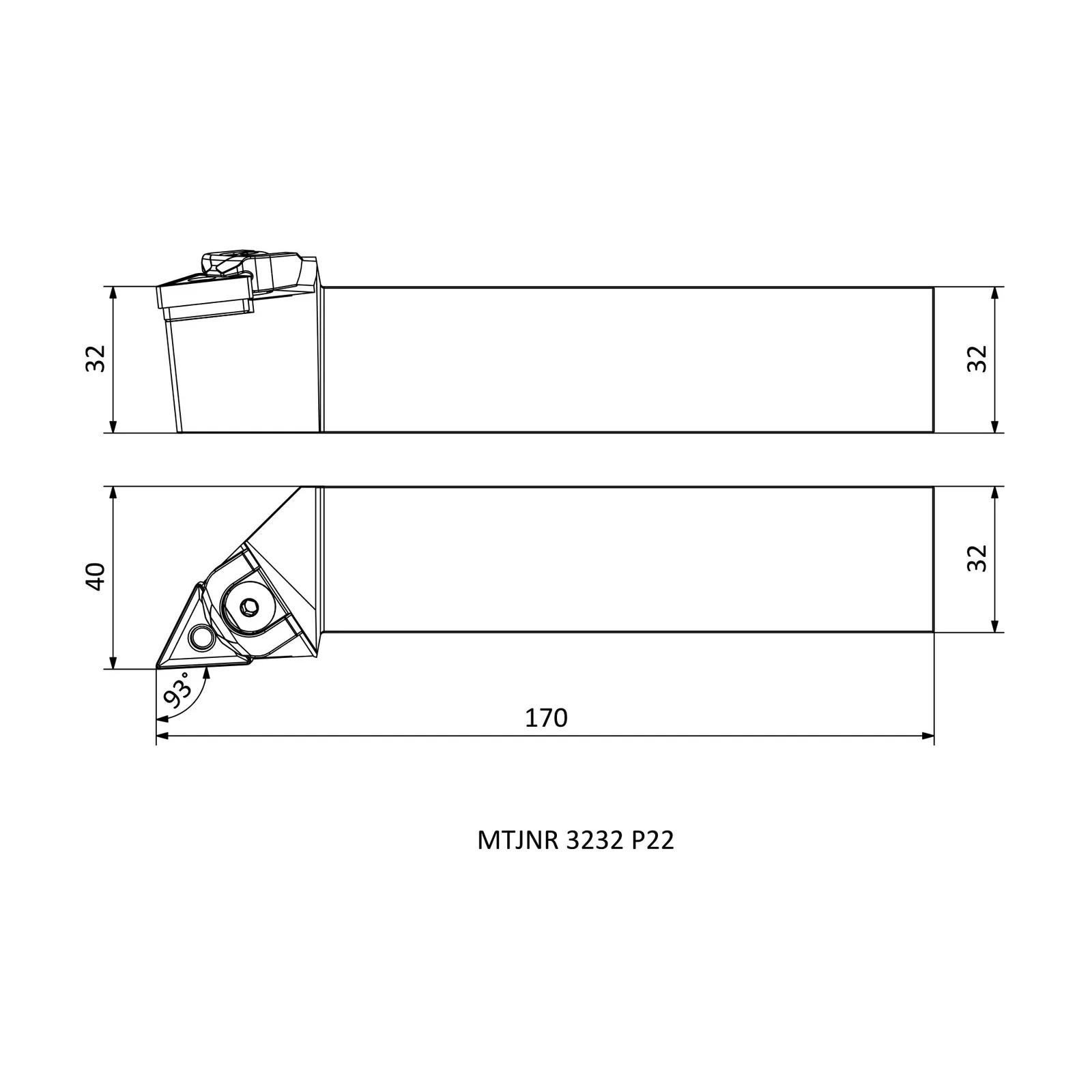

Specifications — MTJNR 3232 P22
| Insert Code | Insert designation | TNM. 2204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 170 |
| WF | Functional width (mm) | 40 |
| HF=H | Functional height (mm) | 32 |
| B | Shank width (mm) | 32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 12 sizes in MTJNR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| MTJNL 2020 K16 | L | 125 | 25 | 20 |
| MTJNR 2020 K16 | R | 125 | 25 | 20 |
| MTJNL 2525 M16 | L | 150 | 32 | 25 |
| MTJNR 2525 M16 | R | 150 | 32 | 25 |
| MTJNL 3232 P16 | L | 170 | 40 | 32 |
| MTJNR 3232 P16 | R | 170 | 40 | 32 |
| MTJNL 2525 M22 | L | 150 | 32 | 25 |
| MTJNR 2525 M22 | R | 150 | 32 | 25 |
| MTJNL 3232 P22 | L | 170 | 40 | 32 |
| MTJNR 3232 P22 | R | 170 | 40 | 32 |
| MTJNL 4040 S22 | L | 250 | 50 | 40 |
| MTJNR 4040 S22 | R | 250 | 50 | 40 |
