Tool Holders / M-System External Turning Toolholders
MWMNN 3232 P08
MWMNN series · see all 6 sizes
Insert compatibility
This size is built for the insert designation WNM. 0804 (as listed in the catalogue data).

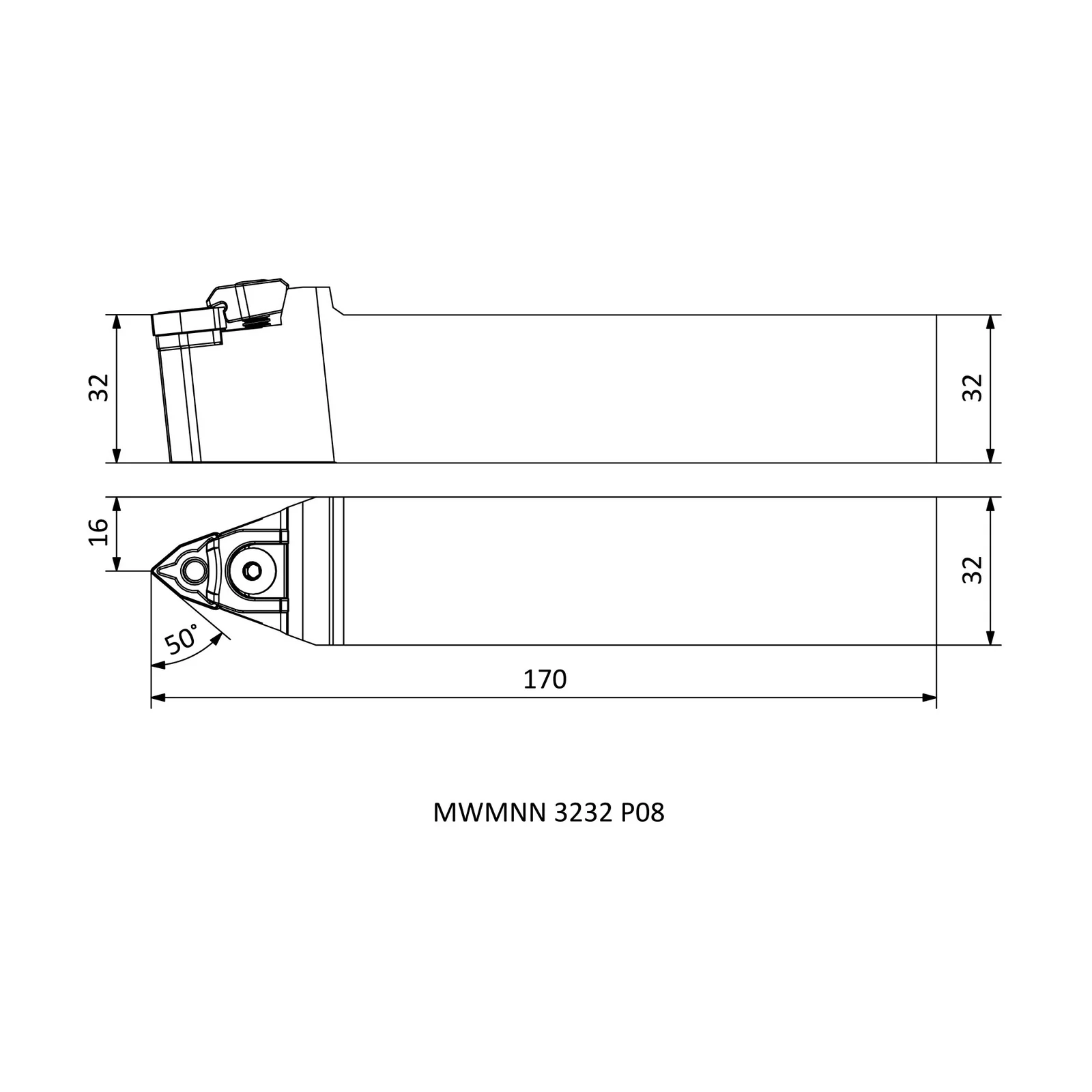

Specifications — MWMNN 3232 P08
| Insert Code | Insert designation | WNM. 0804.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | N |
| LF | Functional length (mm) | 170 |
| WF | Functional width (mm) | 16 |
| HF=H | Functional height (mm) | 32 |
| B | Shank width (mm) | 32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in MWMNN
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| MWMNN 1616 H06 | N | 100 | 8 | 16 |
| MWMNN 2020 K06 | N | 125 | 10 | 20 |
| MWMNN 2525 M06 | N | 150 | 12.5 | 25 |
| MWMNN 2020 K08 | N | 125 | 10 | 20 |
| MWMNN 2525 M08 | N | 150 | 12.5 | 25 |
| MWMNN 3232 P08 | N | 170 | 16 | 32 |
