Tool Holders / P-System Boring Bars

S25S PCLNL 09

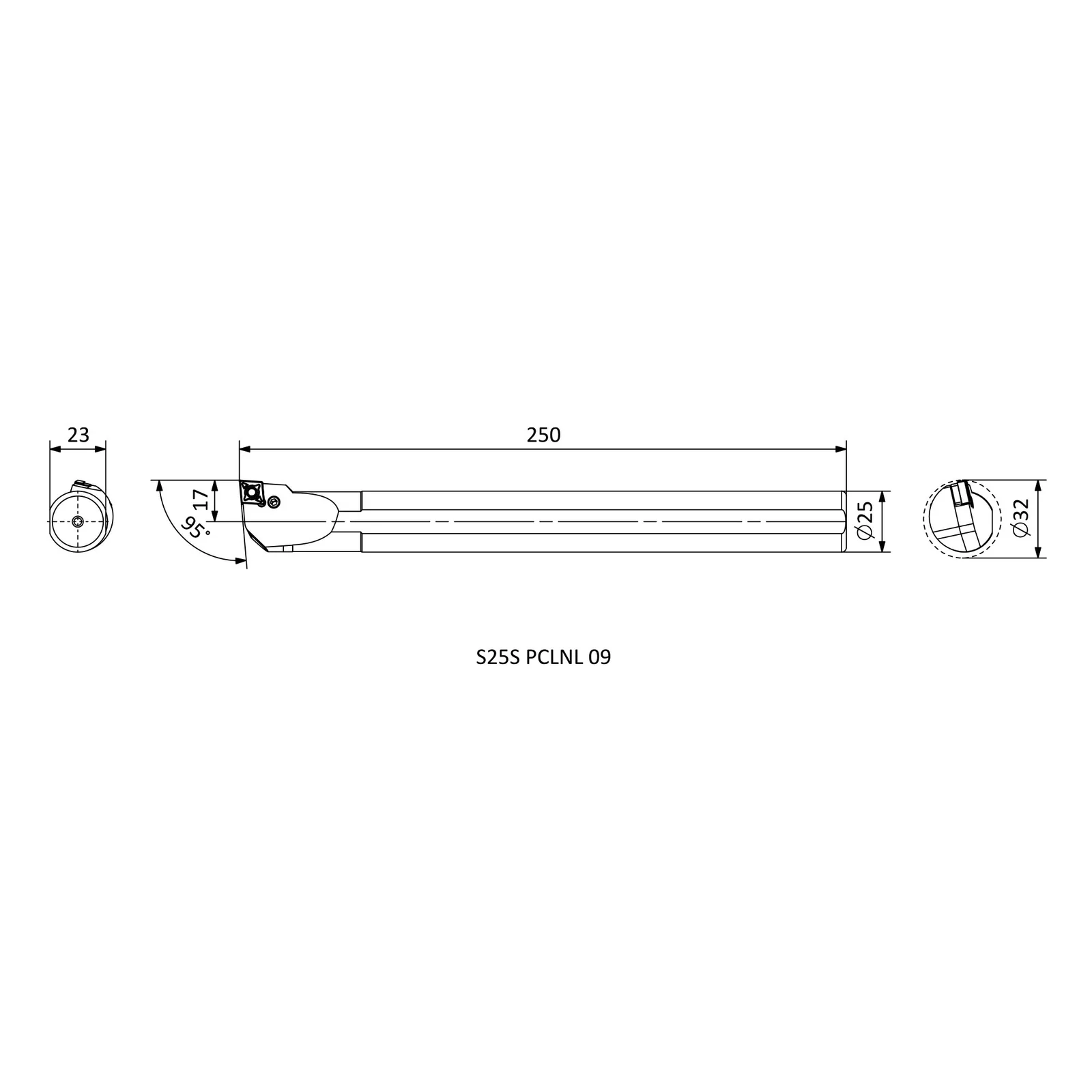

Name: S25S PCLNL 09
Brand: Axior
SKU: S25S PCLNL 09

PCLNR/L series · see all 52 sizes

This size is built for the insert designation CNM. 0903 (as listed in the catalogue data).

Specifications — S25S PCLNL 09

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Connection diameter (mm)	Functional length (mm)	Functional width (mm)
A16R PCLNR 09	R	16	200	11
A16R PCLNL 09	L	16	200	11
S32U PCLNL 12C	L	32	350	22
S32U PCLNR 12C	R	32	350	22
S16P PCLNL 09	L	16	170	11
S16P PCLNR 09	R	16	170	11
S20R PCLNL 09	L	20	200	13
S20R PCLNR 09	R	20	200	13
S25S PCLNL 09	L	25	250	17
S25S PCLNR 09	R	25	250	17
S25S PCLNL 12C	L	25	250	17
S25S PCLNR 12C	R	25	250	17
S32T PCLNL 12C	L	32	300	22
S32T PCLNR 12C	R	32	300	22
S40U PCLNL 12C	L	40	350	27
S40U PCLNR 12C	R	40	350	27
S50V PCLNL 12C	L	50	400	35
S50V PCLNR 12C	R	50	400	35
S32T PCLNL 16C	L	32	300	22
S32T PCLNR 16C	R	32	300	22
S40U PCLNL 16C	L	40	350	27
S40U PCLNR 16C	R	40	350	27
S50V PCLNL 16C	L	50	400	35
S50V PCLNR 16C	R	50	400	35
S40U PCLNL 19C	L	40	350	27
S40U PCLNR 19C	R	40	350	27
S50V PCLNL 19C	L	50	400	35
S50V PCLNR 19C	R	50	400	35
A20P PCLNL 09	L	20	170	13
A20P PCLNR 09	R	20	170	13
A25R PCLNL 12C	L	25	200	17
A25R PCLNR 12C	R	25	200	17
A25S PCLNL 12C	L	25	250	17
A25S PCLNR 12C	R	25	250	17
A32S PCLNL 12C	L	32	250	22
A32S PCLNR 12C	R	32	250	22
A32T PCLNL 12C	L	32	300	22
A32T PCLNR 12C	R	32	300	22
A40T PCLNL 12C	L	40	300	27
A40T PCLNR 12C	R	40	300	27
A50U PCLNL 12C	L	50	350	35
A50U PCLNR 12C	R	50	350	35
A32S PCLNL 16C	L	32	250	22
A32S PCLNR 16C	R	32	250	22
A40T PCLNL 16C	L	40	300	27
A40T PCLNR 16C	R	40	300	27
A50U PCLNL 16C	L	50	350	35
A50U PCLNR 16C	R	50	350	35
A40T PCLNL 19C	L	40	300	27
A40T PCLNR 19C	R	40	300	27
A50U PCLNL 19C	L	50	350	35
A50U PCLNR 19C	R	50	350	35
