Tool Holders / P-System Boring Bars
A50U PDQNL 15
PDQNR/L series · see all 30 sizes
Insert compatibility
This size is built for the insert designation DNM. 1506 (as listed in the catalogue data).

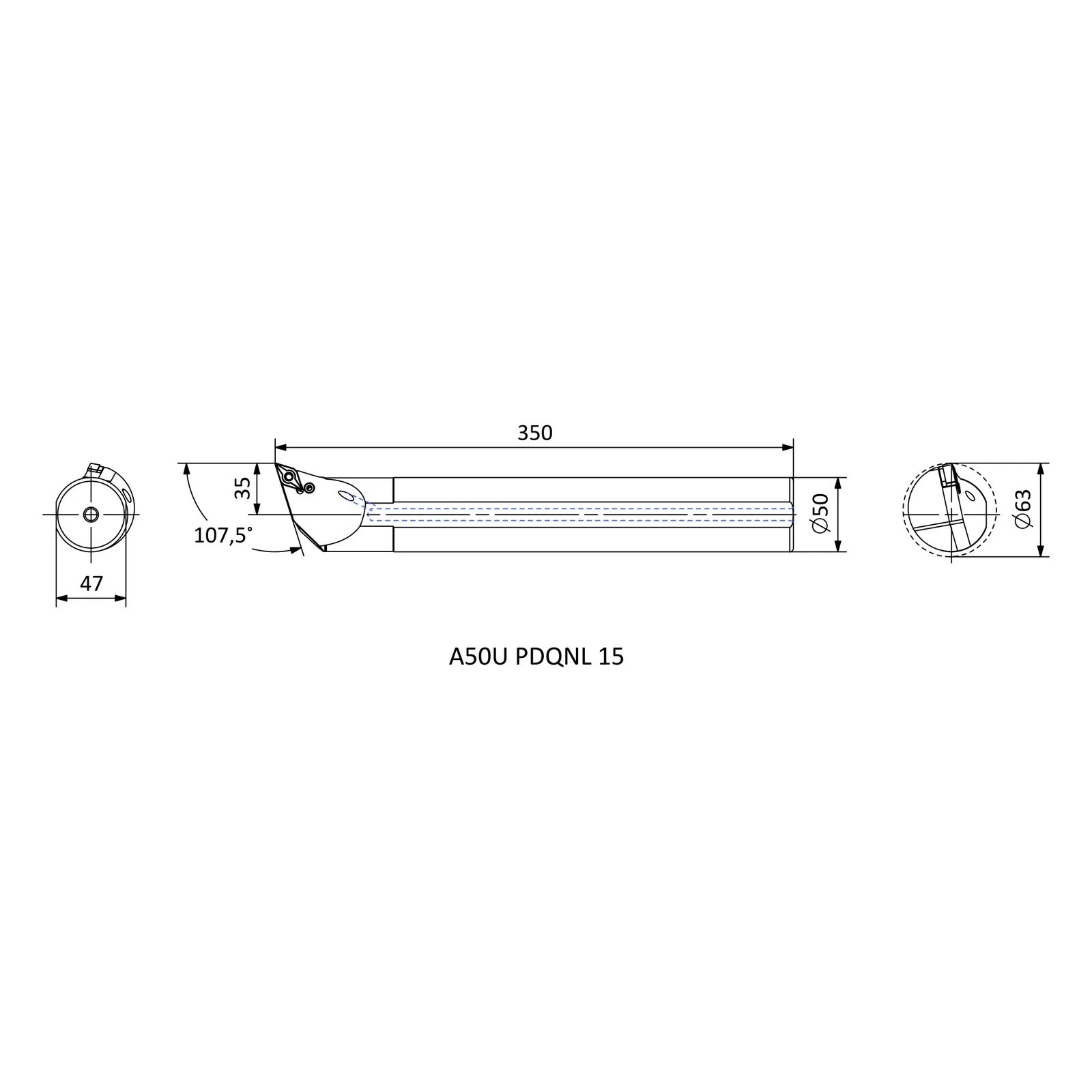

Specifications — A50U PDQNL 15
| Insert Code | Insert designation | DNM. 1506.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| DCON | Connection diameter (mm) | 50 |
| LF | Functional length (mm) | 350 |
| WF | Functional width (mm) | 35 |
| H | Shank height (mm) | 47 |
| D min | Minimum working diameter (mm) | ≥63 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 30 sizes in PDQNR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S20R PDQNL 11 | L | 20 | 200 | 13 |
| S20R PDQNR 11 | R | 20 | 200 | 13 |
| S25S PDQNL 11 | L | 25 | 250 | 17 |
| S25S PDQNR 11 | R | 25 | 250 | 17 |
| S32T PDQNL 15 | L | 32 | 300 | 22 |
| S32T PDQNR 15 | R | 32 | 300 | 22 |
| S40U PDQNL 15 | L | 40 | 350 | 27 |
| S40U PDQNR 15 | R | 40 | 350 | 27 |
| S50V PDQNL 15 | L | 50 | 400 | 35 |
| S50V PDQNR 15 | R | 50 | 400 | 35 |
| S32T PDQNL 1504 | L | 32 | 300 | 22 |
| S32T PDQNR 1504 | R | 32 | 300 | 22 |
| S40U PDQNL 1504 | L | 40 | 350 | 27 |
| S40U PDQNR 1504 | R | 40 | 350 | 27 |
| S50V PDQNL 1504 | L | 50 | 400 | 35 |
| S50V PDQNR 1504 | R | 50 | 400 | 35 |
| A20P PDQNL 11 | L | 20 | 170 | 13 |
| A20P PDQNR 11 | R | 20 | 170 | 13 |
| A25R PDQNL 11 | L | 25 | 200 | 17 |
| A25R PDQNR 11 | R | 25 | 200 | 17 |
| A32S PDQNL 15 | L | 32 | 250 | 22 |
| A32S PDQNR 15 | R | 32 | 250 | 22 |
| A40T PDQNL 15 | L | 40 | 300 | 27 |
| A40T PDQNR 15 | R | 40 | 300 | 27 |
| A50U PDQNL 15 | L | 50 | 350 | 35 |
| A50U PDQNR 15 | R | 50 | 350 | 35 |
| A32S PDQNL 1504 | L | 32 | 250 | 22 |
| A32S PDQNR 1504 | R | 32 | 250 | 22 |
| A40T PDQNL 1504 | L | 40 | 300 | 27 |
| A40T PDQNR 1504 | R | 40 | 300 | 27 |
