Tool Holders / P-System Boring Bars
S25S PDUNR 11
PDUNR/L series · see all 26 sizes
Insert compatibility
This size is built for the insert designation DNM. 1104 (as listed in the catalogue data).

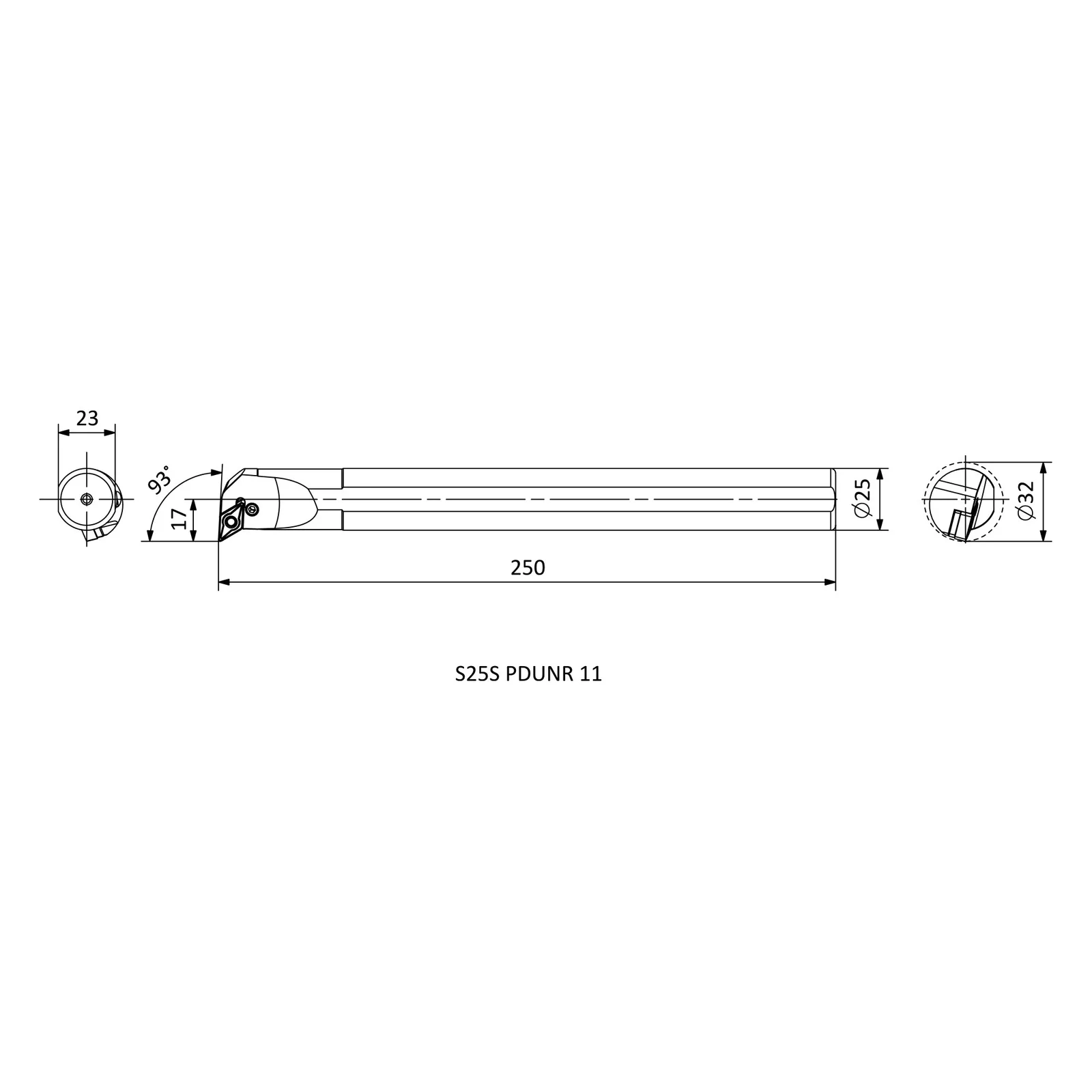

Specifications — S25S PDUNR 11
| Insert Code | Insert designation | DNM. 1104.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 250 |
| WF | Functional width (mm) | 17 |
| H | Shank height (mm) | 23 |
| D min | Minimum working diameter (mm) | ≥32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 26 sizes in PDUNR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| A25S PDUNR 11 | R | 25 | 250 | 17 |
| A25S PDUNL 11 | L | 25 | 250 | 17 |
| S20R PDUNL 11 | L | 20 | 200 | 13 |
| S20R PDUNR 11 | R | 20 | 200 | 13 |
| S25S PDUNL 11 | L | 25 | 250 | 17 |
| S25S PDUNR 11 | R | 25 | 250 | 17 |
| S25S PDUNL 15 | L | 25 | 250 | 19 |
| S25S PDUNR 15 | R | 25 | 250 | 19 |
| S32T PDUNL 15 | L | 32 | 300 | 22 |
| S32T PDUNR 15 | R | 32 | 300 | 22 |
| S40U PDUNL 15 | L | 40 | 350 | 27 |
| S40U PDUNR 15 | R | 40 | 350 | 27 |
| S50V PDUNL 15 | L | 50 | 400 | 35 |
| S50V PDUNR 15 | R | 50 | 400 | 35 |
| A20P PDUNL 11 | L | 20 | 170 | 13 |
| A20P PDUNR 11 | R | 20 | 170 | 13 |
| A25R PDUNL 11 | L | 25 | 200 | 17 |
| A25R PDUNR 11 | R | 25 | 200 | 17 |
| A32S PDUNL 11 | L | 32 | 250 | 22 |
| A32S PDUNR 11 | R | 32 | 250 | 22 |
| A32S PDUNL 15 | L | 32 | 250 | 22 |
| A32S PDUNR 15 | R | 32 | 250 | 22 |
| A40T PDUNL 15 | L | 40 | 300 | 27 |
| A40T PDUNR 15 | R | 40 | 300 | 27 |
| A50U PDUNL 15 | L | 50 | 350 | 35 |
| A50U PDUNR 15 | R | 50 | 350 | 35 |
