Tool Holders / P-System Boring Bars
A50U PDXNR 15
PDXNR/L series · see all 12 sizes
Insert compatibility
This size is built for the insert designation DNM. 1506 (as listed in the catalogue data).

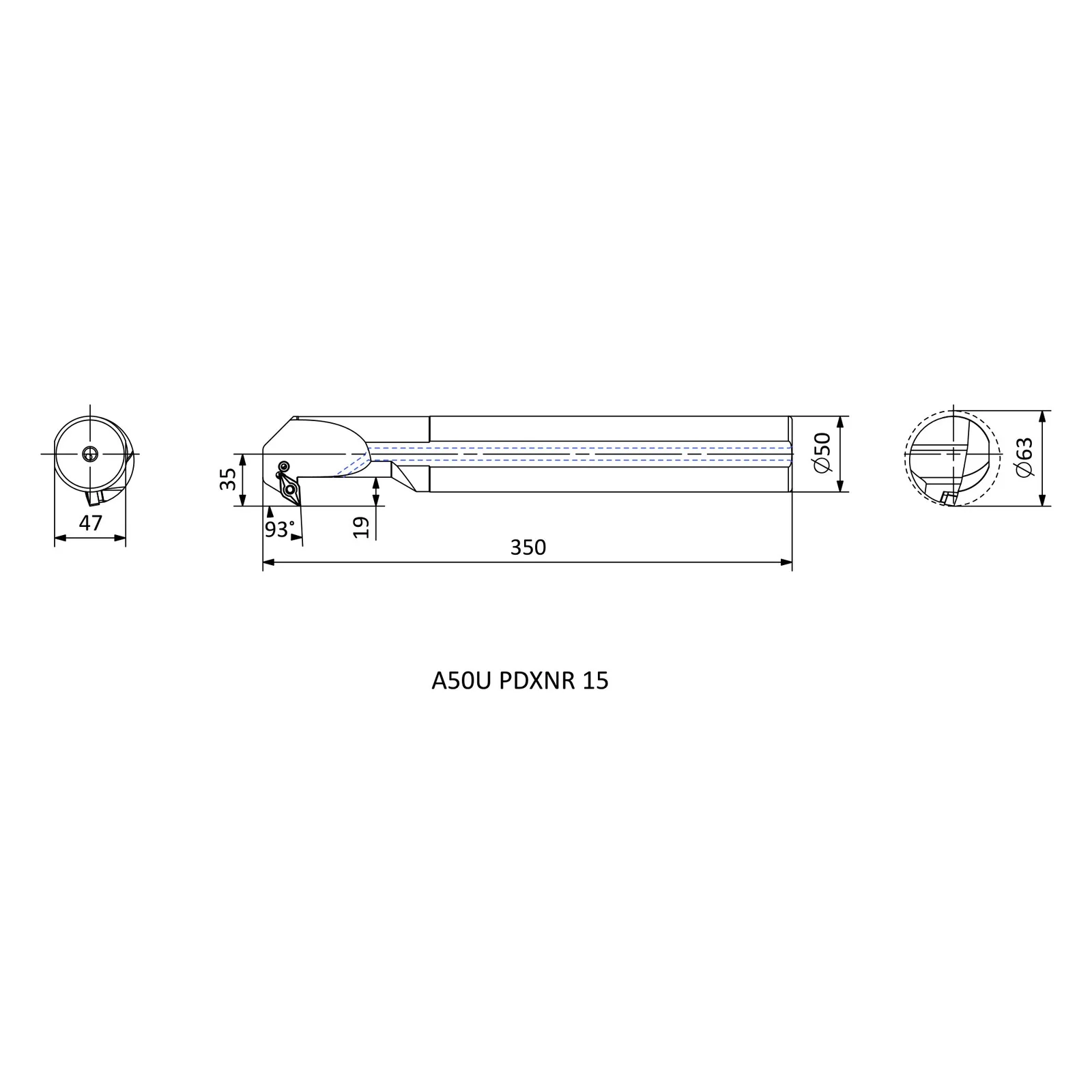

Specifications — A50U PDXNR 15
| Insert Code | Insert designation | DNM. 1506.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 50 |
| LPR | Protruding / projection length (mm) | 350 |
| WF | Functional width (mm) | 35 |
| APMX | Depth of cut, maximum (mm) | 19 |
| H | Shank height (mm) | 47 |
| D min | Minimum working diameter (mm) | ≥63 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 12 sizes in PDXNR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Protruding / projection length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S32T PDXNL 15 | L | 32 | 300 | 22 |
| S40U PDXNL 15 | L | 40 | 350 | 27 |
| S32T PDXNR 15 | R | 32 | 300 | 22 |
| S40U PDXNR 15 | R | 40 | 350 | 27 |
| S50V PDXNL 15 | L | 50 | 400 | 35 |
| S50V PDXNR 15 | R | 50 | 400 | 35 |
| A32S PDXNL 15 | L | 32 | 250 | 22 |
| A32S PDXNR 15 | R | 32 | 250 | 22 |
| A40T PDXNL 15 | L | 40 | 300 | 27 |
| A40T PDXNR 15 | R | 40 | 300 | 27 |
| A50U PDXNL 15 | L | 50 | 350 | 35 |
| A50U PDXNR 15 | R | 50 | 350 | 35 |
