Tool Holders / P-System Boring Bars

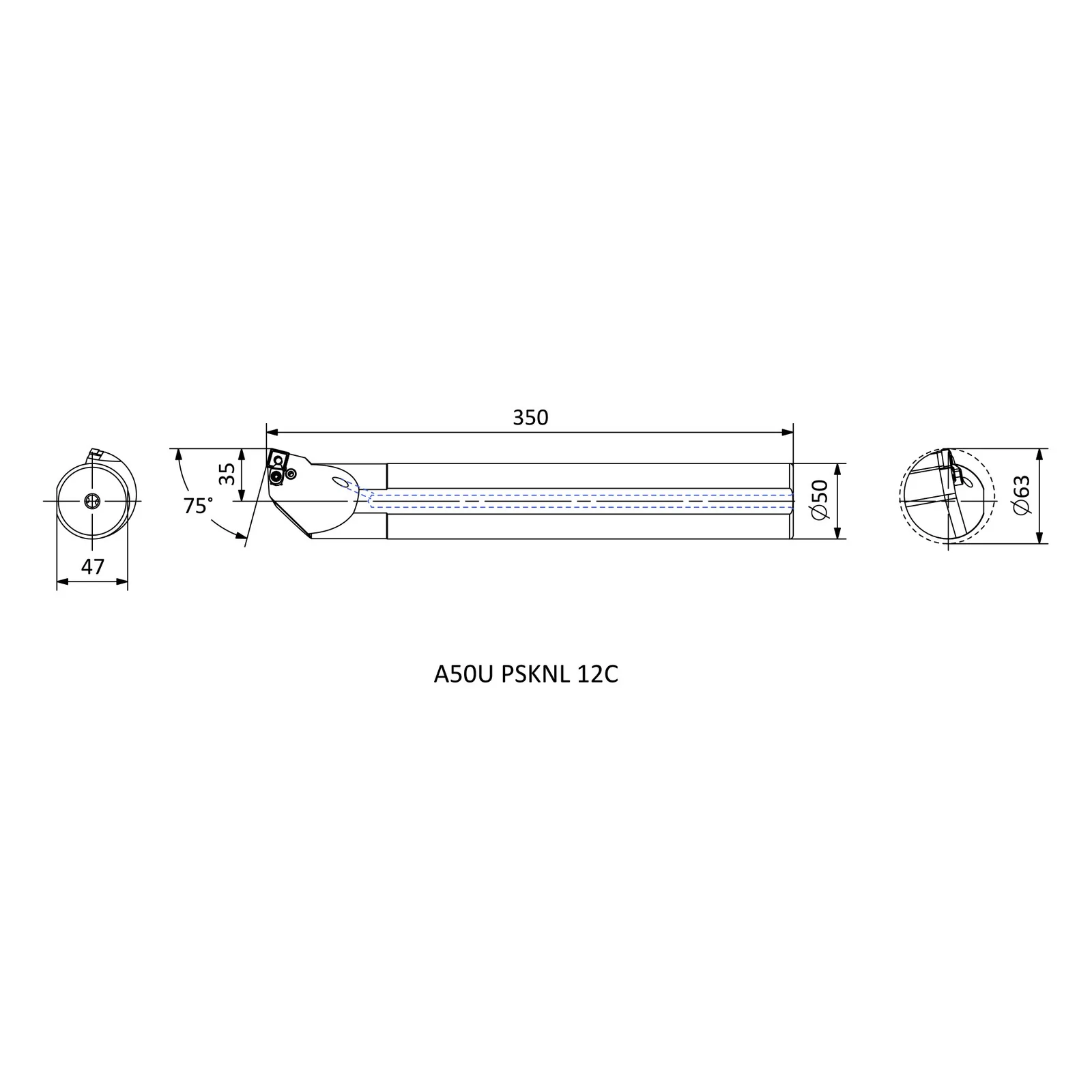

A50U PSKNL 12C
PSKNR/L series · see all 28 sizes
Insert compatibility
This size is built for the insert designation SNM. 1204 (as listed in the catalogue data).
Specifications — A50U PSKNL 12C
| Insert Code | Insert designation | SNM. 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| DCON | Connection diameter (mm) | 50 |
| LF | Functional length (mm) | 350 |
| WF | Functional width (mm) | 35 |
| H | Shank height (mm) | 47 |
| D min | Minimum working diameter (mm) | ≥63 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 28 sizes in PSKNR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S25S PSKNL 12C | L | 25 | 250 | 17 |
| S25S PSKNR 12C | R | 25 | 250 | 17 |
| S32T PSKNL 12C | L | 32 | 300 | 22 |
| S32T PSKNR 12C | R | 32 | 300 | 22 |
| S40U PSKNL 12C | L | 40 | 350 | 27 |
| S40U PSKNR 12C | R | 40 | 350 | 27 |
| S50V PSKNL 12C | L | 50 | 400 | 35 |
| S50V PSKNR 12C | R | 50 | 400 | 35 |
| S32T PSKNL 15C | L | 32 | 300 | 22 |
| S32T PSKNR 15C | R | 32 | 300 | 22 |
| S40U PSKNL 15C | L | 40 | 350 | 27 |
| S40U PSKNR 15C | R | 40 | 350 | 27 |
| S50V PSKNL 15C | L | 50 | 400 | 35 |
| S50V PSKNR 15C | R | 50 | 400 | 35 |
| A25R PSKNL 12C | L | 25 | 200 | 17 |
| A25R PSKNR 12C | R | 25 | 200 | 17 |
| A32S PSKNL 12C | L | 32 | 250 | 22 |
| A32S PSKNR 12C | R | 32 | 250 | 22 |
| A40T PSKNL 12C | L | 40 | 300 | 27 |
| A40T PSKNR 12C | R | 40 | 300 | 27 |
| A50U PSKNL 12C | L | 50 | 350 | 35 |
| A50U PSKNR 12C | R | 50 | 350 | 35 |
| A32S PSKNL 15C | L | 32 | 250 | 22 |
| A32S PSKNR 15C | R | 32 | 250 | 22 |
| A40T PSKNL 15C | L | 40 | 300 | 27 |
| A40T PSKNR 15C | R | 40 | 300 | 27 |
| A50U PSKNL 15C | L | 50 | 350 | 35 |
| A50U PSKNR 15C | R | 50 | 350 | 35 |
