Tool Holders / P-System Boring Bars
A32S PTFNL 16C
PTFNR/L series · see all 4 sizes
Insert compatibility
This size is built for the insert designation TNM. 1604 (as listed in the catalogue data).

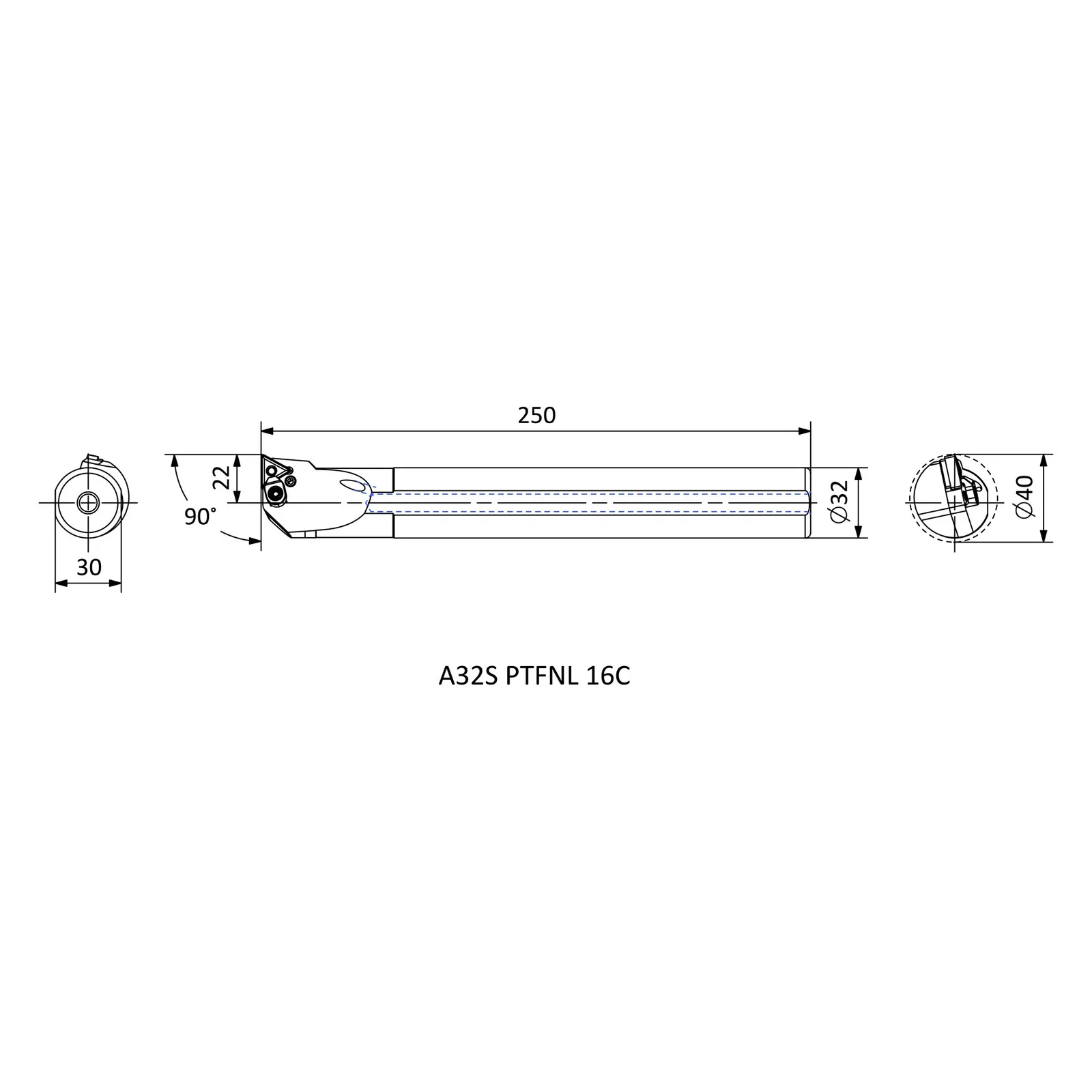

Specifications — A32S PTFNL 16C
| Insert Code | Insert designation | TNM. 1604.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 250 |
| WF | Functional width (mm) | 22 |
| H | Shank height (mm) | 30 |
| D min | Minimum working diameter (mm) | ≥40 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 4 sizes in PTFNR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| A25R PTFNL 16C | L | 25 | 200 | 17 |
| A25R PTFNR 16C | R | 25 | 200 | 17 |
| A32S PTFNL 16C | L | 32 | 250 | 22 |
| A32S PTFNR 16C | R | 32 | 250 | 22 |
