Tool Holders / P-System Boring Bars

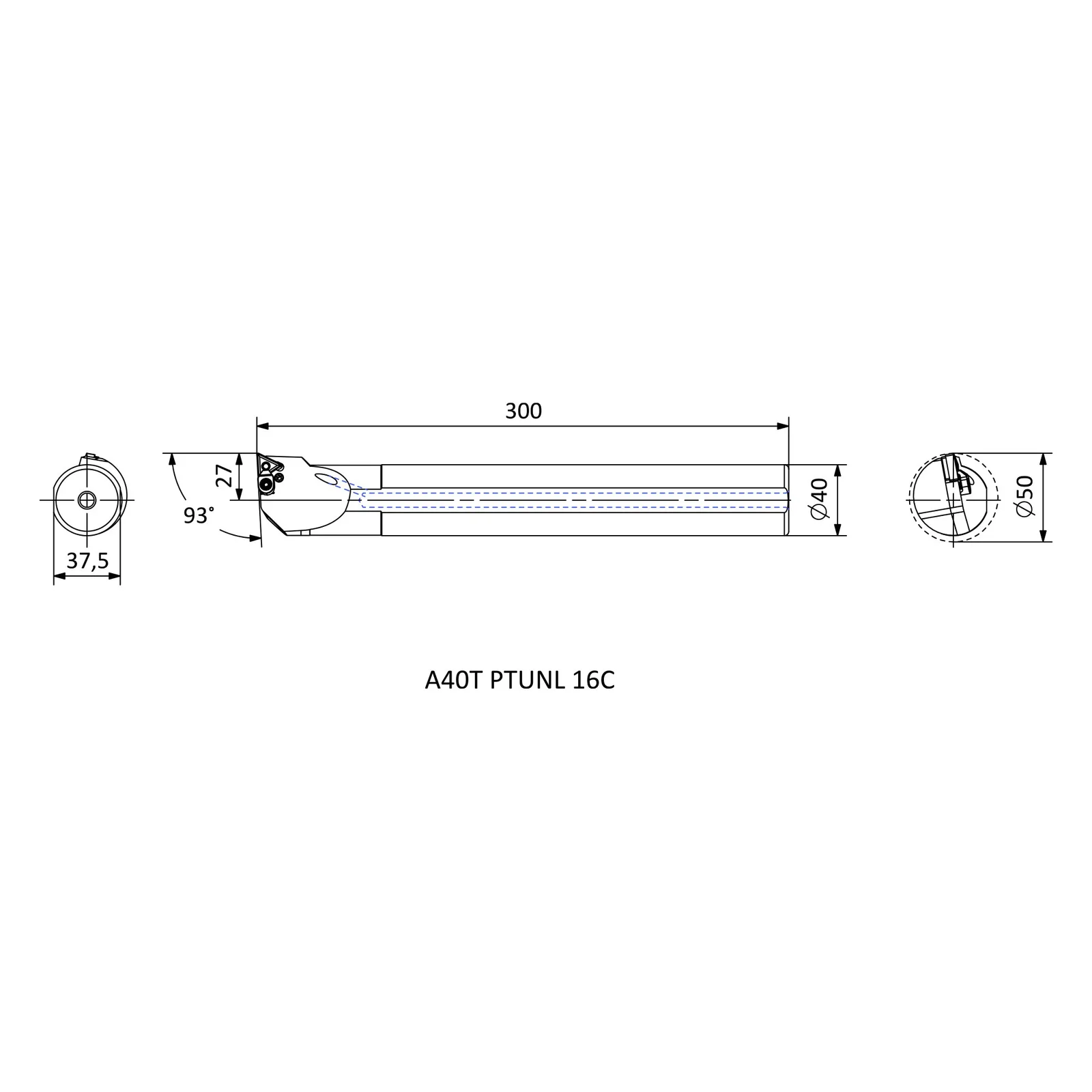

A40T PTUNL 16C
PTUNR/L series · see all 30 sizes
Insert compatibility
This size is built for the insert designation TNM. 1604 (as listed in the catalogue data).
Specifications — A40T PTUNL 16C
| Insert Code | Insert designation | TNM. 1604.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| DCON | Connection diameter (mm) | 40 |
| LF | Functional length (mm) | 300 |
| WF | Functional width (mm) | 27 |
| H | Shank height (mm) | 37.5 |
| D min | Minimum working diameter (mm) | ≥50 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 30 sizes in PTUNR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S16P PTUNL 16 | L | 16 | 170 | 11 |
| S16P PTUNR 16 | R | 16 | 170 | 11 |
| S20R PTUNL 16 | L | 20 | 200 | 13 |
| S20R PTUNR 16 | R | 20 | 200 | 13 |
| S25S PTUNL 16C | L | 25 | 250 | 17 |
| S25S PTUNR 16C | R | 25 | 250 | 17 |
| S32T PTUNL 16C | L | 32 | 300 | 22 |
| S32T PTUNR 16C | R | 32 | 300 | 22 |
| S40U PTUNL 16C | L | 40 | 350 | 27 |
| S40U PTUNR 16C | R | 40 | 350 | 27 |
| S32T PTUNL 22C | L | 32 | 300 | 22 |
| S32T PTUNR 22C | R | 32 | 300 | 22 |
| S40U PTUNL 22C | L | 40 | 350 | 27 |
| S40U PTUNR 22C | R | 40 | 350 | 27 |
| S50V PTUNL 22C | L | 50 | 400 | 35 |
| S50V PTUNR 22C | R | 50 | 400 | 35 |
| A16M PTUNL 16 | L | 16 | 150 | 11 |
| A16M PTUNR 16 | R | 16 | 150 | 11 |
| A20P PTUNL 16 | L | 20 | 170 | 13 |
| A20P PTUNR 16 | R | 20 | 170 | 13 |
| A25R PTUNL 16C | L | 25 | 200 | 17 |
| A25R PTUNR 16C | R | 25 | 200 | 17 |
| A32S PTUNL 16C | L | 32 | 250 | 22 |
| A32S PTUNR 16C | R | 32 | 250 | 22 |
| A40T PTUNL 16C | L | 40 | 300 | 27 |
| A40T PTUNR 16C | R | 40 | 300 | 27 |
| A32S PTUNL 22C | L | 32 | 250 | 22 |
| A32S PTUNR 22C | R | 32 | 250 | 22 |
| A40T PTUNL 22C | L | 40 | 300 | 27 |
| A40T PTUNR 22C | R | 40 | 300 | 27 |
