Tool Holders / P-System Boring Bars
A20P PWLNR 06
PWLNR/L series · see all 32 sizes
Insert compatibility
This size is built for the insert designation WNM. 0604 (as listed in the catalogue data).

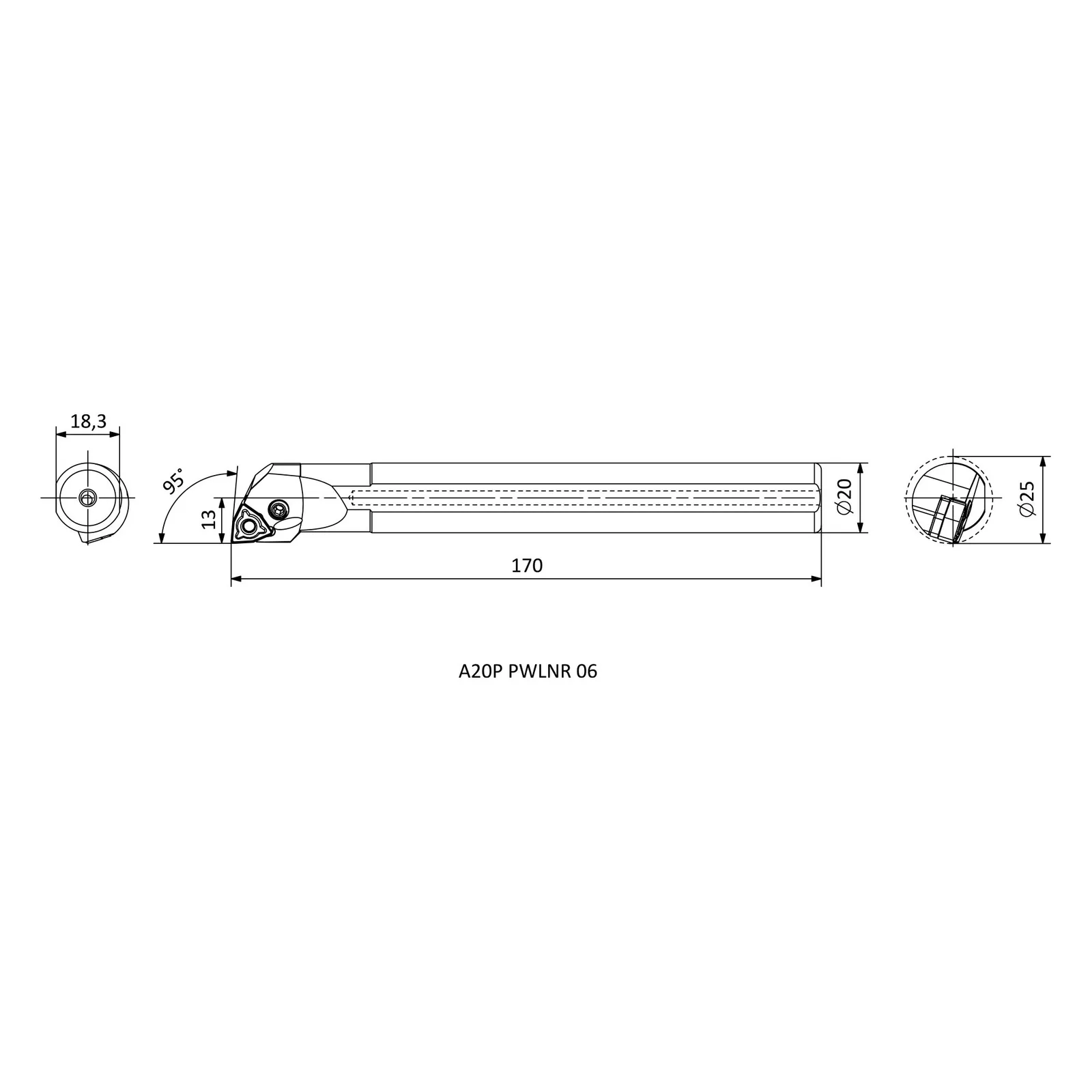

Specifications — A20P PWLNR 06
| Insert Code | Insert designation | WNM. 0604.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 170 |
| WF | Functional width (mm) | 13 |
| H | Shank height (mm) | 18.3 |
| D min | Minimum working diameter (mm) | ≥25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 32 sizes in PWLNR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S20R PWLNL 06 | L | 20 | 200 | 13 |
| S20R PWLNR 06 | R | 20 | 200 | 13 |
| S25S PWLNL 06 | L | 25 | 250 | 17 |
| S25S PWLNR 06 | R | 25 | 250 | 17 |
| S32T PWLNL 06 | L | 32 | 300 | 22 |
| S32T PWLNR 06 | R | 32 | 300 | 22 |
| S25S PWLNL 08C | L | 25 | 250 | 17 |
| S25S PWLNR 08C | R | 25 | 250 | 17 |
| S32T PWLNL 08C | L | 32 | 300 | 22 |
| S32T PWLNR 08C | R | 32 | 300 | 22 |
| S40U PWLNL 08C | L | 40 | 350 | 27 |
| S40U PWLNR 08C | R | 40 | 350 | 27 |
| S50V PWLNL 08C | L | 50 | 400 | 35 |
| S50V PWLNR 08C | R | 50 | 400 | 35 |
| A16M PWLNL 06 | L | 16 | 150 | 11 |
| A16M PWLNR 06 | R | 16 | 150 | 11 |
| A20P PWLNL 06 | L | 20 | 170 | 13 |
| A20P PWLNR 06 | R | 20 | 170 | 13 |
| A25R PWLNL 06 | L | 25 | 200 | 17 |
| A25R PWLNR 06 | R | 25 | 200 | 17 |
| A32S PWLNL 06 | L | 32 | 250 | 22 |
| A32S PWLNR 06 | R | 32 | 250 | 22 |
| A40T PWLNR 06 | R | 40 | 300 | 27 |
| A40T PWLNL 06 | L | 40 | 300 | 27 |
| A25R PWLNL 08C | L | 25 | 200 | 17 |
| A25R PWLNR 08C | R | 25 | 200 | 17 |
| A32S PWLNL 08C | L | 32 | 250 | 22 |
| A32S PWLNR 08C | R | 32 | 250 | 22 |
| A40T PWLNL 08C | L | 40 | 300 | 27 |
| A40T PWLNR 08C | R | 40 | 300 | 27 |
| A50U PWLNL 08C | L | 50 | 350 | 35 |
| A50U PWLNR 08C | R | 50 | 350 | 35 |
