Tool Holders / P-System Cartridge
PSRNR 16CA 12
PSRNR/L series · see all 2 sizes
Insert compatibility
This size is built for the insert designation SNM. 1204 (as listed in the catalogue data).

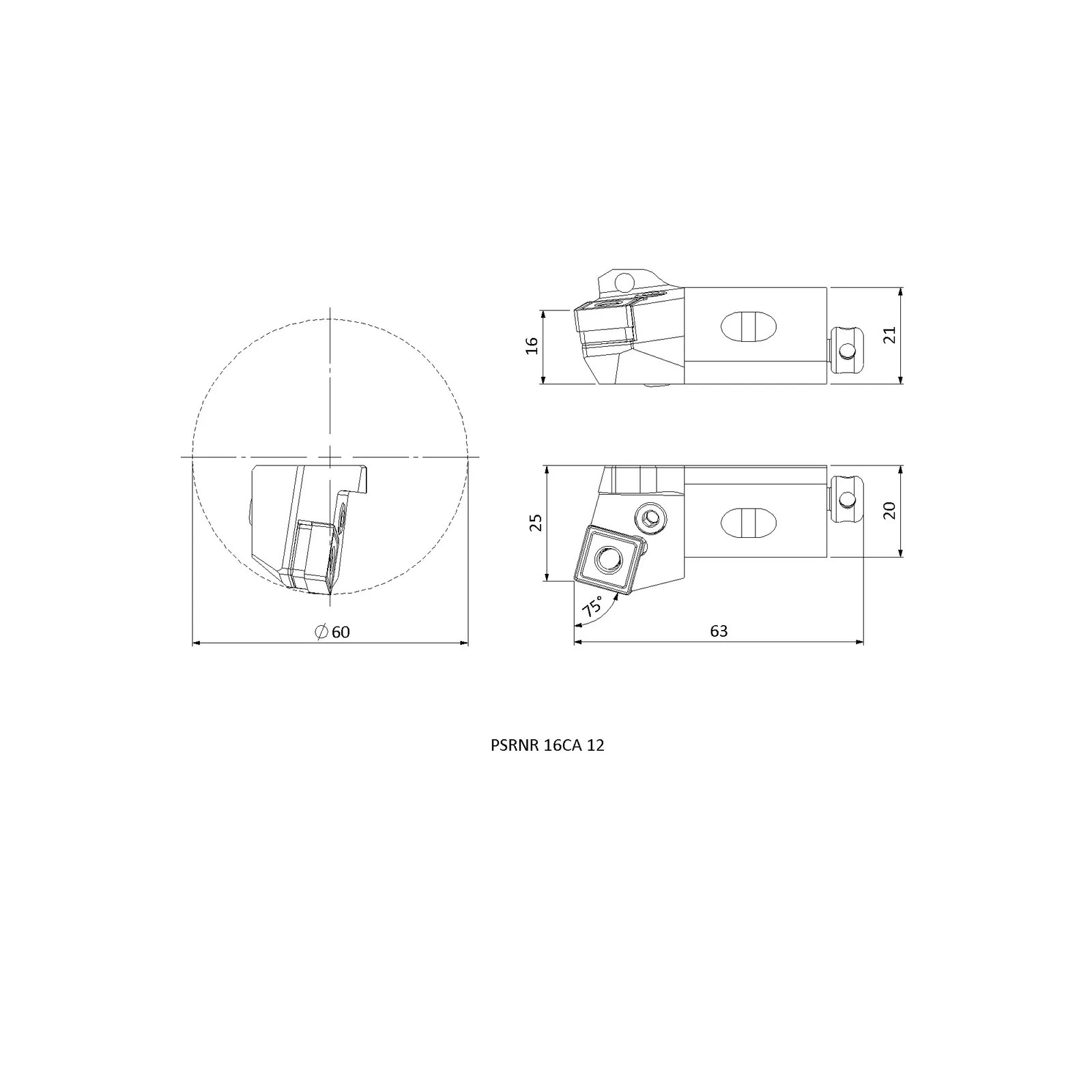

Specifications — PSRNR 16CA 12
| Insert Code | Insert designation | SNM. 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 63 |
| WF | Functional width (mm) | 25 |
| B | Shank width (mm) | 20 |
| H | Shank height (mm) | 21 |
| HF | Functional height (mm) | 16 |
| D min | Minimum working diameter (mm) | ≥60 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in PSRNR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Shank width (mm) |
|---|---|---|---|---|
| PSRNL 16CA 12 | L | 63 | 25 | 20 |
| PSRNR 16CA 12 | R | 63 | 25 | 20 |
