Tool Holders / P-System Cartridge
PTFNL 16CA 16
PTFNR/L series · see all 8 sizes
Insert compatibility
This size is built for the insert designation TNM. 1604 (as listed in the catalogue data).

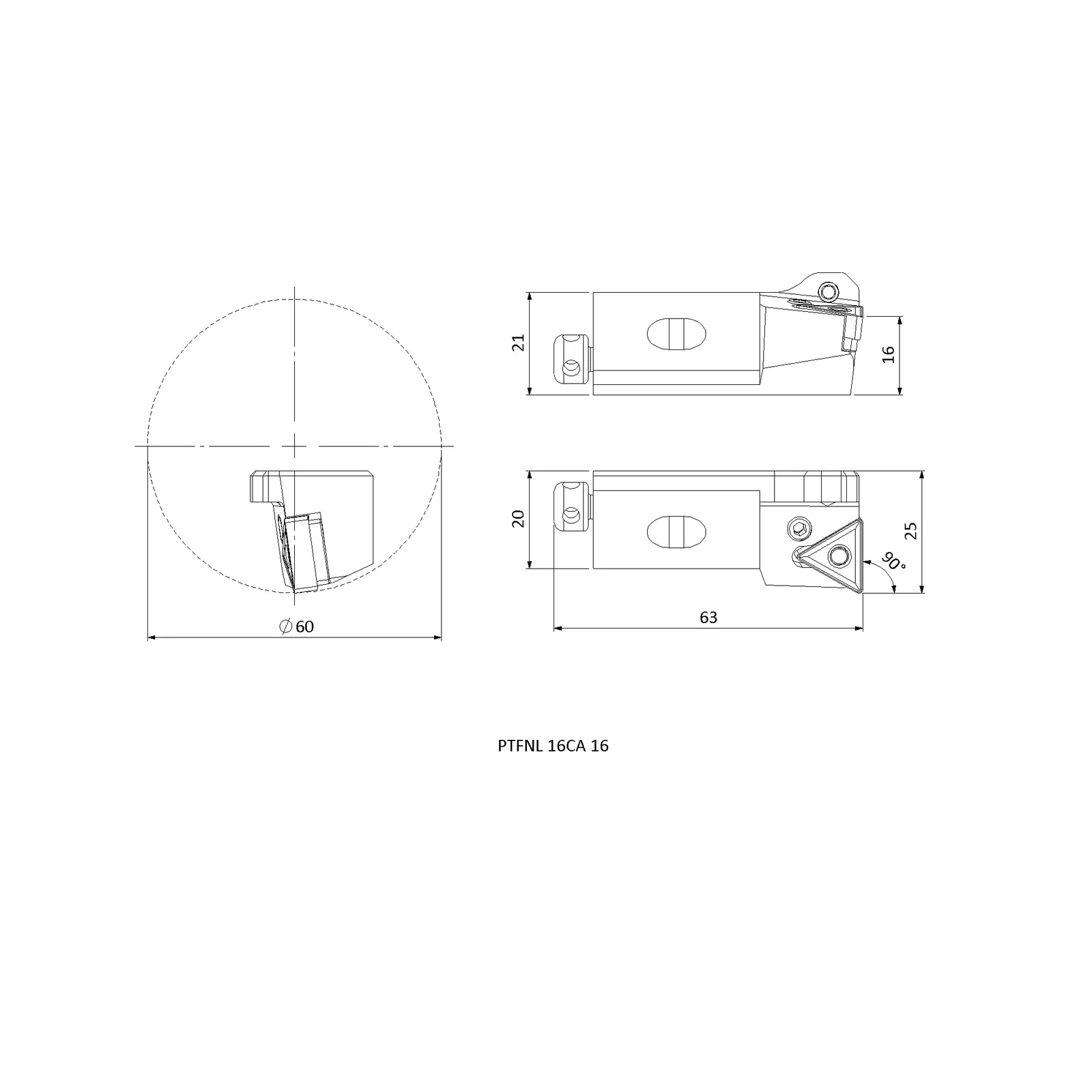

Specifications — PTFNL 16CA 16
| Insert Code | Insert designation | TNM. 1604.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 63 |
| WF | Functional width (mm) | 25 |
| B | Shank width (mm) | 20 |
| H | Shank height (mm) | 21 |
| HF | Functional height (mm) | 16 |
| D min | Minimum working diameter (mm) | ≥60 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 8 sizes in PTFNR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Shank width (mm) |
|---|---|---|---|---|
| PTFNL 12CA 16 | L | 47 | 20 | 15 |
| PTFNR 12CA 16 | R | 47 | 20 | 15 |
| PTFNL 16CA 16 | L | 63 | 25 | 20 |
| PTFNR 16CA 16 | R | 63 | 25 | 20 |
| PTFNL 16CA 22 | L | 63 | 25 | 20 |
| PTFNR 16CA 22 | R | 63 | 25 | 20 |
| PTFNL 20CA 22 | L | 63 | 25 | 20 |
| PTFNR 20CA 22 | R | 63 | 25 | 20 |
