Tool Holders / P-System External Turning Toolholders
PCLNR/L
30 sizes available · 7 specification fields · standard: ISO

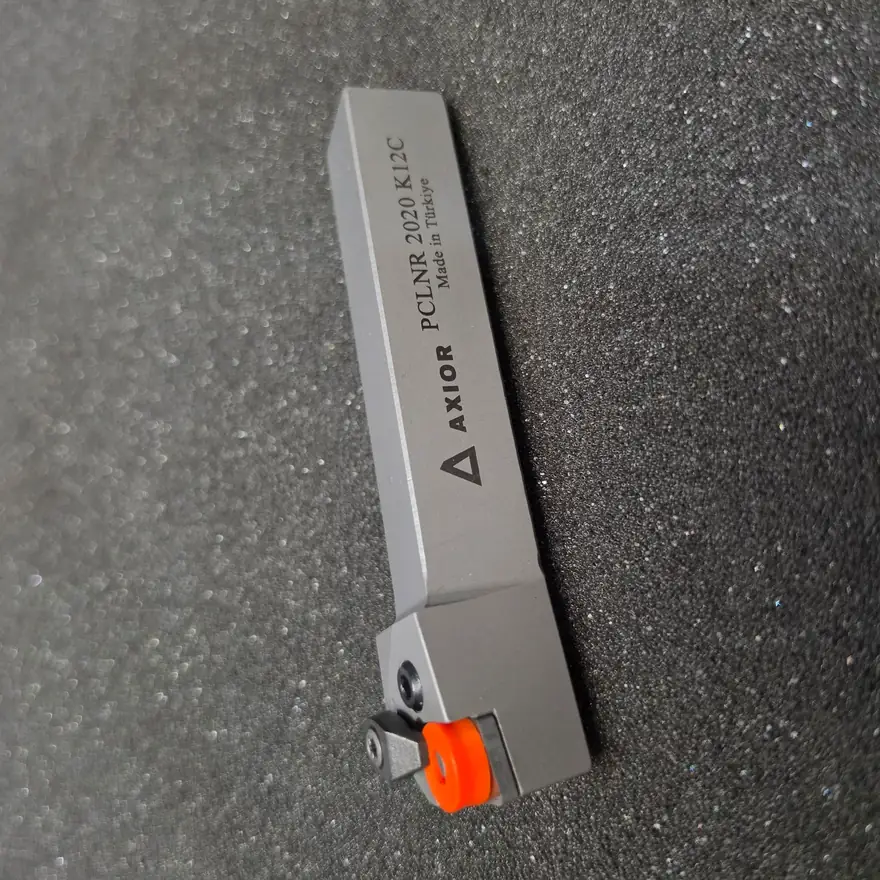

PCLNR/L is an external turning tool holder that takes negative 80° rhombic (C-type) inserts. It is listed here in 30 sizes, 16–50 × 16–50 mm shank, right- and left-hand versions, each with full specifications and a dimensioned drawing. Typical use: external turning, facing and profiling.
Insert compatibility
This family is built for the following insert designations (as listed in the catalogue data). The exact size in each row of the table below is in the Insert designation column.
- CN.. 1906..
- CNM. 0903..
- CNM. 1204..
- CNM. 1606..
- CNM. 1906..
- CNM. 2509..
Specifications
| Product code | Insert designation | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) | Shank width (mm) |
|---|---|---|---|---|---|---|
| PCLNL 5050 S19C | CN.. 1906.. | L | 250 | 60 | 50 | 50 |
| PCLNR 5050 S19C | CN.. 1906.. | R | 250 | 60 | 50 | 50 |
| PCLNL 1616 H09 | CNM. 0903.. | L | 100 | 20 | 16 | 16 |
| PCLNR 1616 H09 | CNM. 0903.. | R | 100 | 20 | 16 | 16 |
| PCLNR 2020 K09 | CNM. 0903.. | R | 125 | 25 | 20 | 20 |
| PCLNL 2020 K09 | CNM. 0903.. | L | 125 | 25 | 20 | 20 |
| PCLNL 2525 M09 | CNM. 0903.. | L | 150 | 32 | 25 | 25 |
| PCLNR 2525 M09 | CNM. 0903.. | R | 150 | 32 | 25 | 25 |
| PCLNL 1616 H12 | CNM. 1204.. | L | 100 | 20 | 16 | 16 |
| PCLNR 1616 H12 | CNM. 1204.. | R | 100 | 20 | 16 | 16 |
| PCLNL 2020 K12C | CNM. 1204.. | L | 125 | 25 | 20 | 20 |
| PCLNR 2020 K12C | CNM. 1204.. | R | 125 | 25 | 20 | 20 |
| PCLNL 2525 M12C | CNM. 1204.. | L | 150 | 32 | 25 | 25 |
| PCLNR 2525 M12C | CNM. 1204.. | R | 150 | 32 | 25 | 25 |
| PCLNL 3232 P12C | CNM. 1204.. | L | 170 | 40 | 32 | 32 |
| PCLNR 3232 P12C | CNM. 1204.. | R | 170 | 40 | 32 | 32 |
| PCLNL 2525 M16C | CNM. 1606.. | L | 150 | 32 | 25 | 25 |
| PCLNR 2525 M16C | CNM. 1606.. | R | 150 | 32 | 25 | 25 |
| PCLNL 3232 P16C | CNM. 1606.. | L | 170 | 40 | 32 | 32 |
| PCLNR 3232 P16C | CNM. 1606.. | R | 170 | 40 | 32 | 32 |
| PCLNL 2525 M19C | CNM. 1906.. | L | 150 | 32 | 25 | 25 |
| PCLNR 2525 M19C | CNM. 1906.. | R | 150 | 32 | 25 | 25 |
| PCLNL 3232 P19C | CNM. 1906.. | L | 170 | 40 | 32 | 32 |
| PCLNR 3232 P19C | CNM. 1906.. | R | 170 | 40 | 32 | 32 |
| PCLNL 4040 S19C | CNM. 1906.. | L | 250 | 50 | 40 | 40 |
| PCLNR 4040 S19C | CNM. 1906.. | R | 250 | 50 | 40 | 40 |
| PCLNL 4040 S25C | CNM. 2509.. | L | 250 | 50 | 40 | 40 |
| PCLNR 4040 S25C | CNM. 2509.. | R | 250 | 50 | 40 | 40 |
| PCLNL 5050 S25C | CNM. 2509.. | L | 250 | 60 | 50 | 50 |
| PCLNR 5050 S25C | CNM. 2509.. | R | 250 | 60 | 50 | 50 |
Column codes
- Insert Code — Insert designation
- Product Direction — Cutting direction (hand)
- LF — Functional length (mm)
- WF — Functional width (mm)
- HF=H — Functional height (mm)
- B — Shank width (mm)
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
