Tool Holders / P-System External Turning Toolholders
PCLNR 3232 P16C
PCLNR/L series · see all 30 sizes
Insert compatibility
This size is built for the insert designation CNM. 1606 (as listed in the catalogue data).

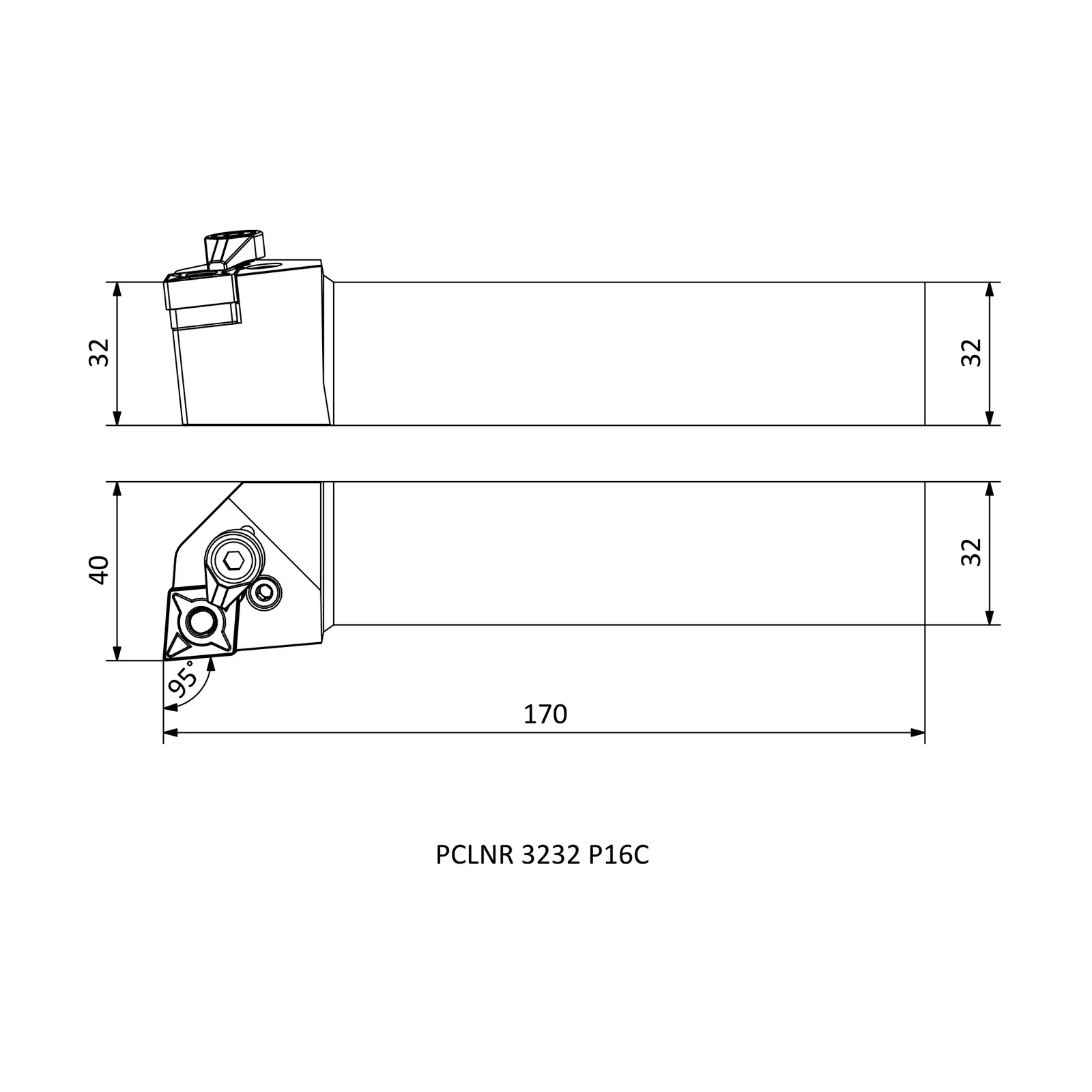

Specifications — PCLNR 3232 P16C
| Insert Code | Insert designation | CNM. 1606.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 170 |
| WF | Functional width (mm) | 40 |
| HF=H | Functional height (mm) | 32 |
| B | Shank width (mm) | 32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 30 sizes in PCLNR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| PCLNL 5050 S19C | L | 250 | 60 | 50 |
| PCLNR 5050 S19C | R | 250 | 60 | 50 |
| PCLNL 1616 H09 | L | 100 | 20 | 16 |
| PCLNR 1616 H09 | R | 100 | 20 | 16 |
| PCLNR 2020 K09 | R | 125 | 25 | 20 |
| PCLNL 2020 K09 | L | 125 | 25 | 20 |
| PCLNL 2525 M09 | L | 150 | 32 | 25 |
| PCLNR 2525 M09 | R | 150 | 32 | 25 |
| PCLNL 1616 H12 | L | 100 | 20 | 16 |
| PCLNR 1616 H12 | R | 100 | 20 | 16 |
| PCLNL 2020 K12C | L | 125 | 25 | 20 |
| PCLNR 2020 K12C | R | 125 | 25 | 20 |
| PCLNL 2525 M12C | L | 150 | 32 | 25 |
| PCLNR 2525 M12C | R | 150 | 32 | 25 |
| PCLNL 3232 P12C | L | 170 | 40 | 32 |
| PCLNR 3232 P12C | R | 170 | 40 | 32 |
| PCLNL 2525 M16C | L | 150 | 32 | 25 |
| PCLNR 2525 M16C | R | 150 | 32 | 25 |
| PCLNL 3232 P16C | L | 170 | 40 | 32 |
| PCLNR 3232 P16C | R | 170 | 40 | 32 |
| PCLNL 2525 M19C | L | 150 | 32 | 25 |
| PCLNR 2525 M19C | R | 150 | 32 | 25 |
| PCLNL 3232 P19C | L | 170 | 40 | 32 |
| PCLNR 3232 P19C | R | 170 | 40 | 32 |
| PCLNL 4040 S19C | L | 250 | 50 | 40 |
| PCLNR 4040 S19C | R | 250 | 50 | 40 |
| PCLNL 4040 S25C | L | 250 | 50 | 40 |
| PCLNR 4040 S25C | R | 250 | 50 | 40 |
| PCLNL 5050 S25C | L | 250 | 60 | 50 |
| PCLNR 5050 S25C | R | 250 | 60 | 50 |
