Tool Holders / P-System External Turning Toolholders

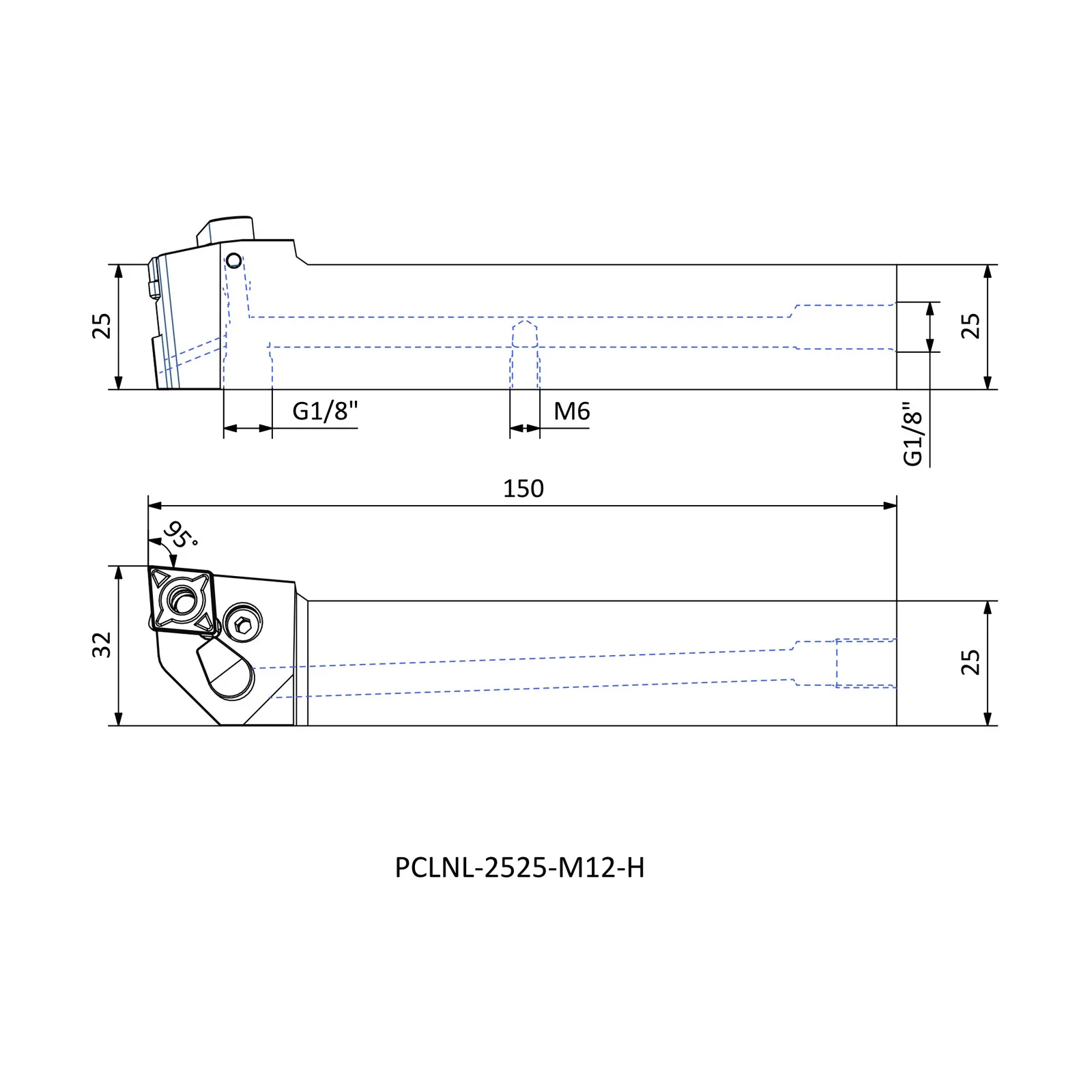

PCLNL 2525 M12-H
PCLNR/L-H series · see all 10 sizes
Insert compatibility
This size is built for the insert designation CNM. 1204 (as listed in the catalogue data).
Specifications — PCLNL 2525 M12-H
| Insert Code | Insert designation | CNM. 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 32 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 10 sizes in PCLNR/L-H
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| PCLNL 2020 K12-H | L | 125 | 25 | 20 |
| PCLNR 2020 K12-H | R | 125 | 25 | 20 |
| PCLNL 2525 M12-H | L | 150 | 32 | 25 |
| PCLNR 2525 M12-H | R | 150 | 32 | 25 |
| PCLNL 3232 P12-H | L | 170 | 40 | 32 |
| PCLNR 3232 P12-H | R | 170 | 40 | 32 |
| PCLNL 3232 P16-H | L | 170 | 40 | 32 |
| PCLNR 3232 P16-H | R | 170 | 40 | 32 |
| PCLNL 3232 P19-H | L | 170 | 40 | 32 |
| PCLNR 3232 P19-H | R | 170 | 40 | 32 |
