Tool Holders / P-System External Turning Toolholders
PCMNN 3232 P16C
PCMNN series · see all 9 sizes
Insert compatibility
This size is built for the insert designation CNM. 1606 (as listed in the catalogue data).

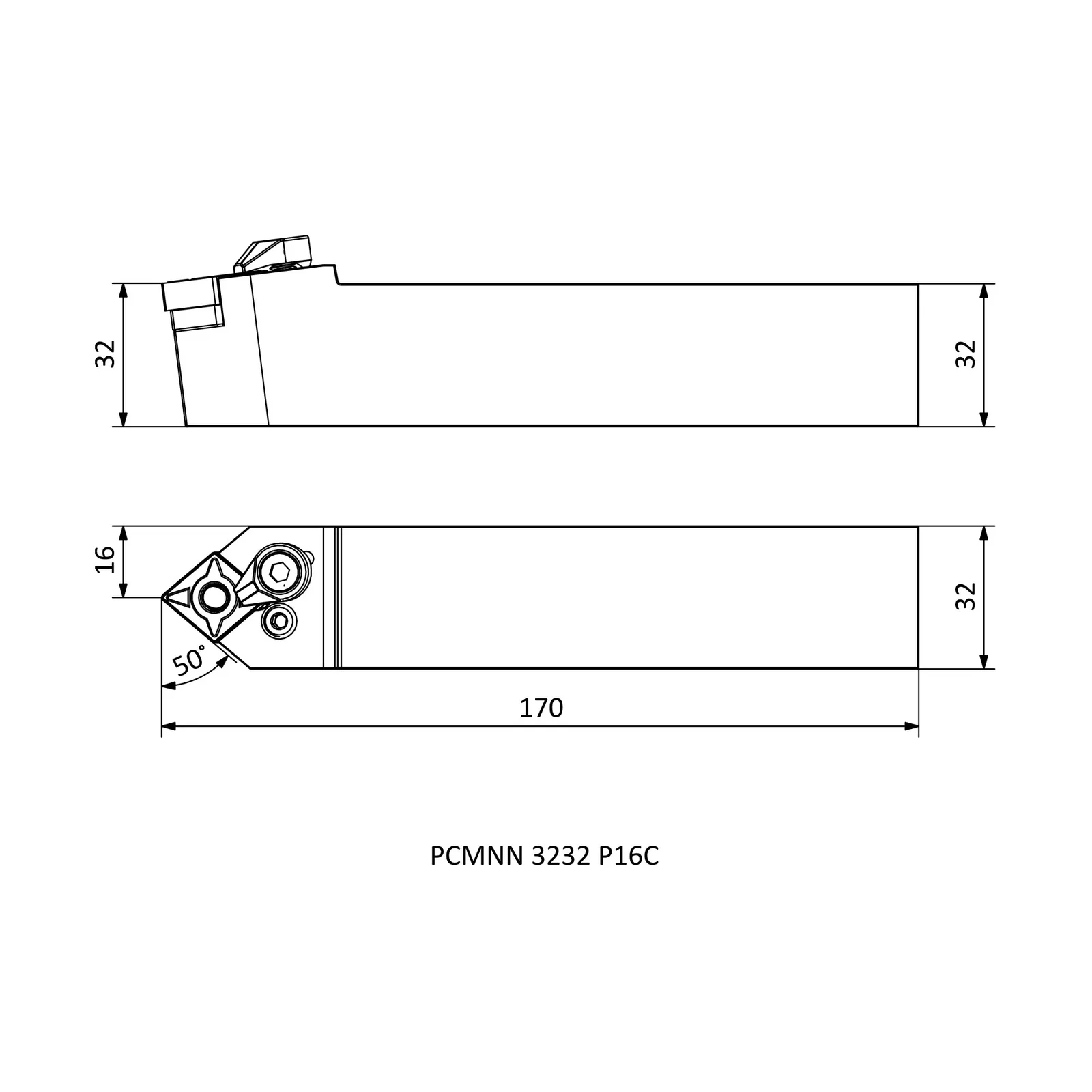

Specifications — PCMNN 3232 P16C
| Insert Code | Insert designation | CNM. 1606.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | N |
| LF | Functional length (mm) | 170 |
| WF | Functional width (mm) | 16 |
| HF=H | Functional height (mm) | 32 |
| B | Shank width (mm) | 32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
