Tool Holders / P-System External Turning Toolholders

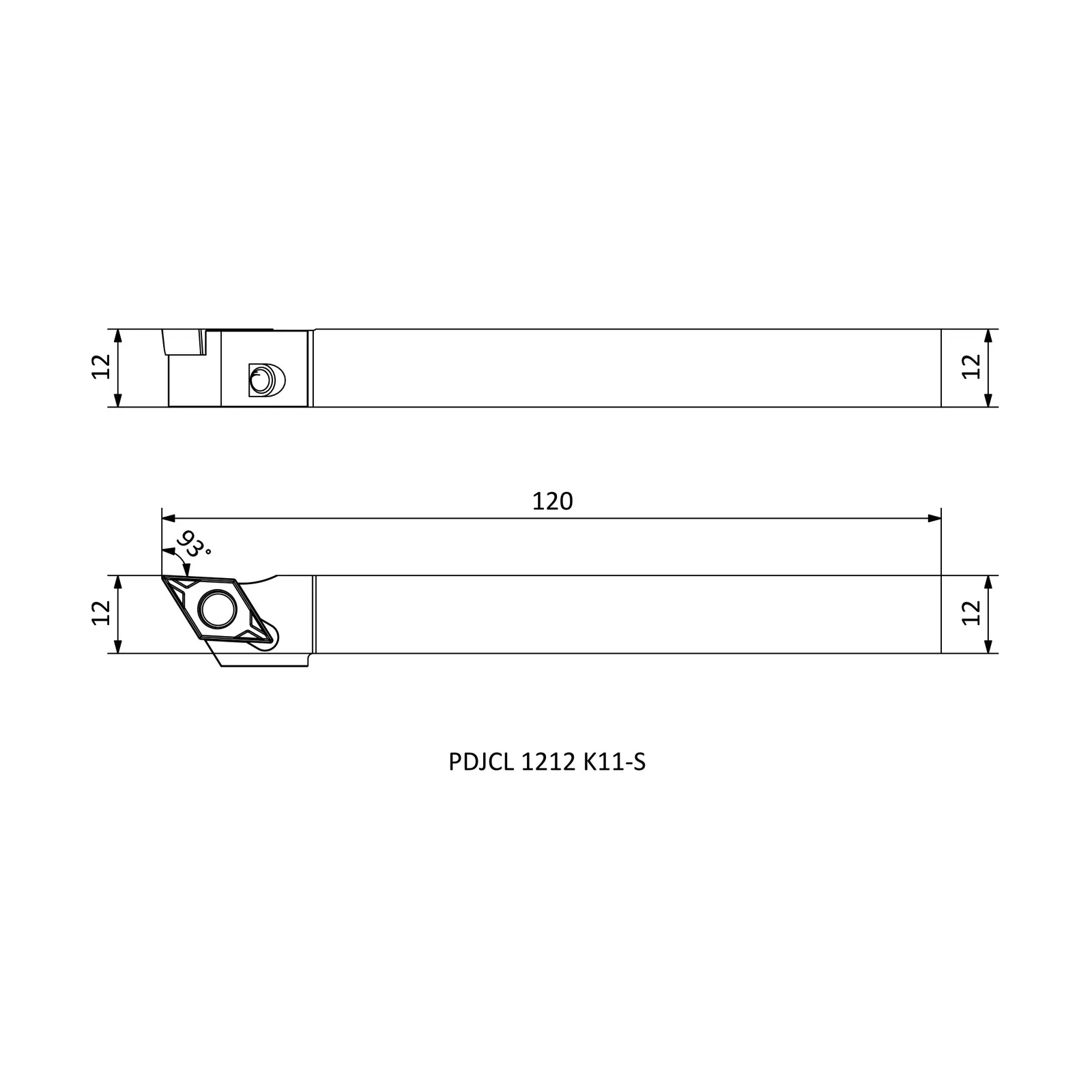

PDJCL 1212 K11-S
PDJCR/L series · see all 6 sizes
Insert compatibility
This size is built for the insert designation DC.T 11T3 (as listed in the catalogue data).
Specifications — PDJCL 1212 K11-S
| Insert Code | Insert designation | DC.T 11T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 12 |
| HF=H | Functional height (mm) | 12 |
| B | Shank width (mm) | 12 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in PDJCR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| PDJCL 1010 K11-S | L | 125 | 10 | 10 |
| PDJCR 1010 K11-S | R | 125 | 10 | 10 |
| PDJCL 1212 K11-S | L | 125 | 12 | 12 |
| PDJCR 1212 K11-S | R | 125 | 12 | 12 |
| PDJCL 1616 K11-S | L | 125 | 16 | 16 |
| PDJCR 1616 K11-S | R | 125 | 16 | 16 |
