Tool Holders / P-System External Turning Toolholders

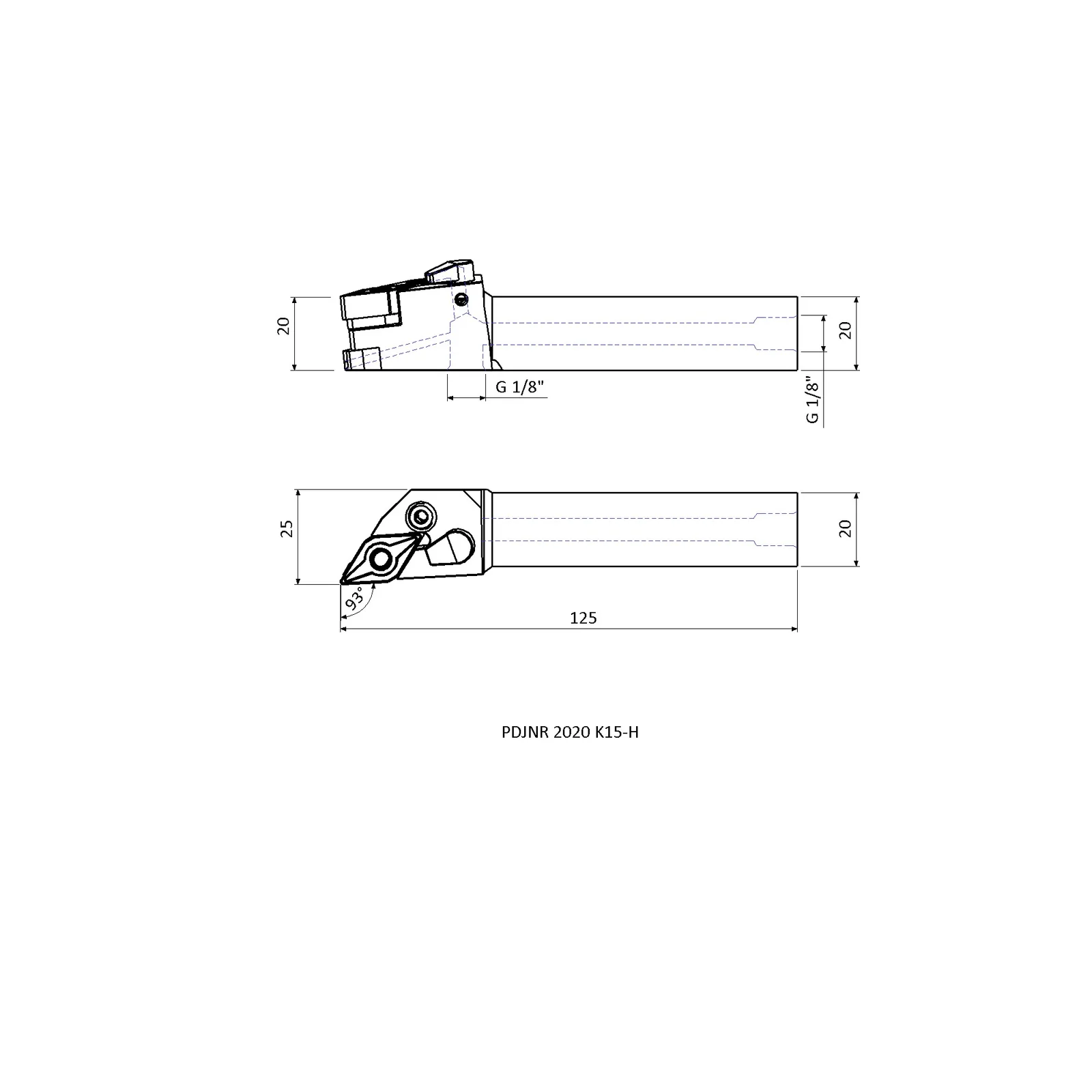

PDJNR 2020 K15-H
PDJNR/L-H series · see all 6 sizes
Insert compatibility
This size is built for the insert designation DNM. 1506 (as listed in the catalogue data).
Specifications — PDJNR 2020 K15-H
| Insert Code | Insert designation | DNM. 1506.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 25 |
| HF=H | Functional height (mm) | 20 |
| B | Shank width (mm) | 20 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in PDJNR/L-H
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| PDJNL 2020 K15-H | L | 125 | 25 | 20 |
| PDJNR 2020 K15-H | R | 125 | 25 | 20 |
| PDJNL 2525 M15-H | L | 125 | 25 | 20 |
| PDJNR 2525 M15-H | R | 150 | 32 | 25 |
| PDJNL 3232 P15-H | L | 125 | 25 | 20 |
| PDJNR 3232 P15-H | R | 170 | 40 | 32 |
