Tool Holders / P-System External Turning Toolholders
PDNNN 3232 P15C
PDNNN series · see all 6 sizes
Insert compatibility
This size is built for the insert designation DNM. 1506 (as listed in the catalogue data).

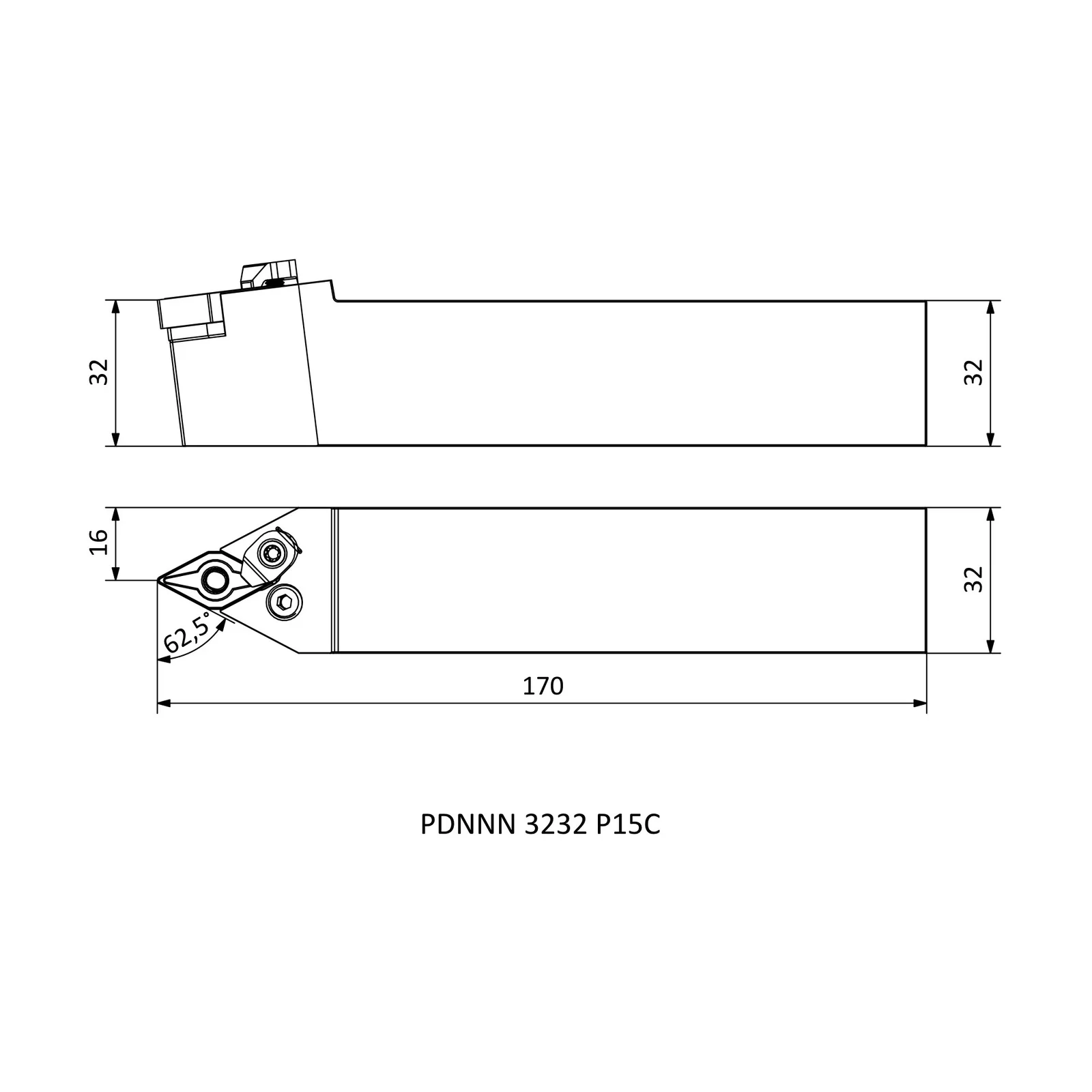

Specifications — PDNNN 3232 P15C
| Insert Code | Insert designation | DNM. 1506.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | N |
| LF | Functional length (mm) | 170 |
| WF | Functional width (mm) | 16 |
| HF=H | Functional height (mm) | 32 |
| B | Shank width (mm) | 32 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in PDNNN
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| PDNNN 1616 H11 | N | 100 | 8 | 16 |
| PDNNN 2020 K11 | N | 125 | 10 | 20 |
| PDNNN 2525 M11 | N | 150 | 12.5 | 25 |
| PDNNN 2020 K15C | N | 125 | 10 | 20 |
| PDNNN 2525 M15C | N | 150 | 12.5 | 25 |
| PDNNN 3232 P15C | N | 170 | 16 | 32 |
