Tool Holders / P-System External Turning Toolholders
PSDNN 5050 S25C
PSDNN series · see all 11 sizes
Insert compatibility
This size is built for the insert designation SNM. 2509 (as listed in the catalogue data).

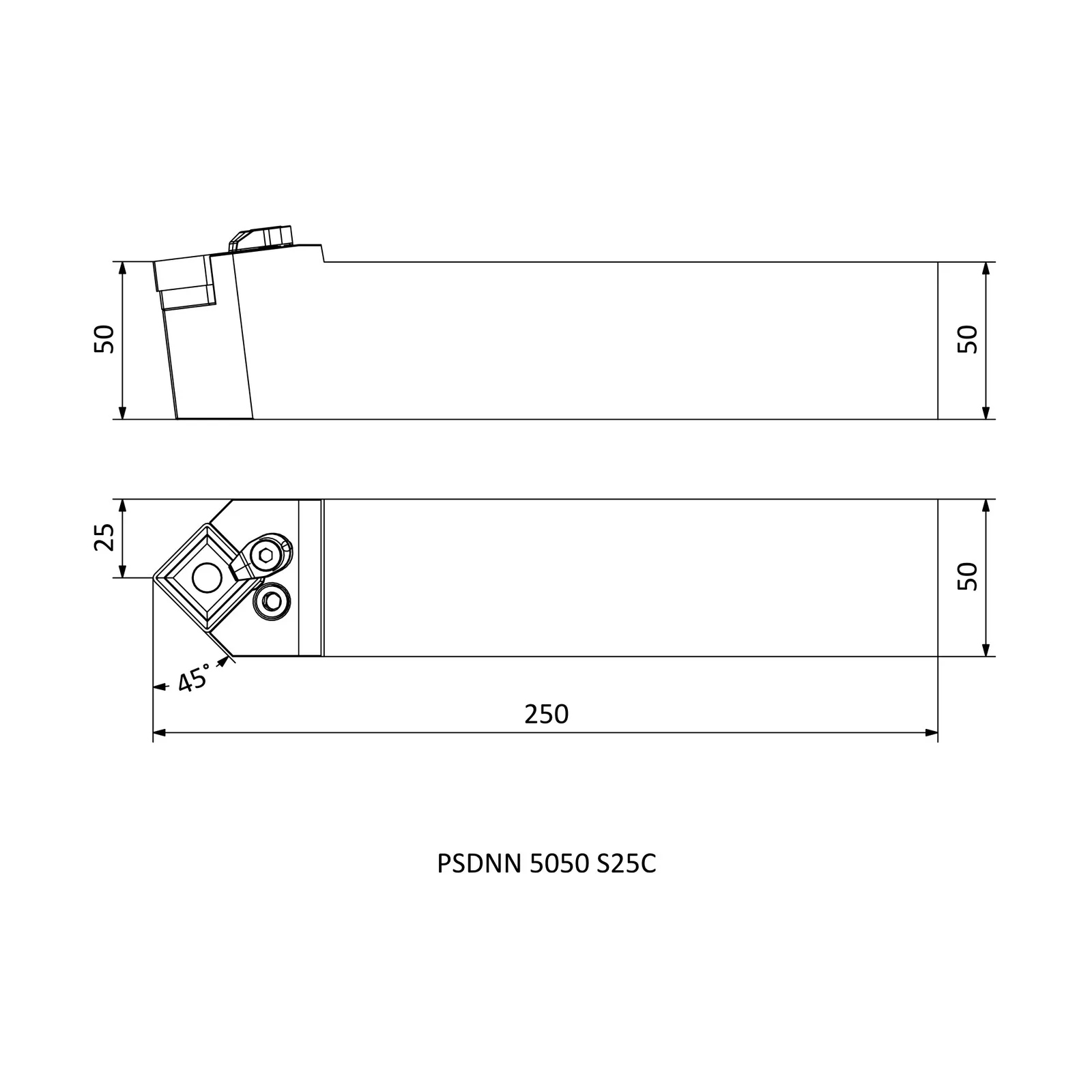

Specifications — PSDNN 5050 S25C
| Insert Code | Insert designation | SNM. 2509.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | N |
| LF | Functional length (mm) | 250 |
| WF | Functional width (mm) | 25 |
| HF=H | Functional height (mm) | 50 |
| B | Shank width (mm) | 50 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 11 sizes in PSDNN
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| PSDNN 1616 H09 | N | 100 | 8 | 16 |
| PSDNN 2020 K12C | N | 125 | 10 | 20 |
| PSDNN 2525 M12C | N | 150 | 12.5 | 25 |
| PSDNN 3232 P12C | N | 170 | 16 | 32 |
| PSDNN 2020 K15 | N | 125 | 10 | 20 |
| PSDNN 2525 M15C | N | 150 | 12.5 | 25 |
| PSDNN 3232 P19C | N | 170 | 16 | 32 |
| PSDNN 4040 S19C | N | 250 | 20 | 40 |
| PSDNN 5050 S19C | N | 250 | 25 | 50 |
| PSDNN 4040 S25C | N | 250 | 20 | 40 |
| PSDNN 5050 S25C | N | 250 | 25 | 50 |
