Tool Holders / P-System External Turning Toolholders
PSKNL 2020 K12C
PSKNR/L series · see all 20 sizes
Insert compatibility
This size is built for the insert designation SNM. 1204 (as listed in the catalogue data).

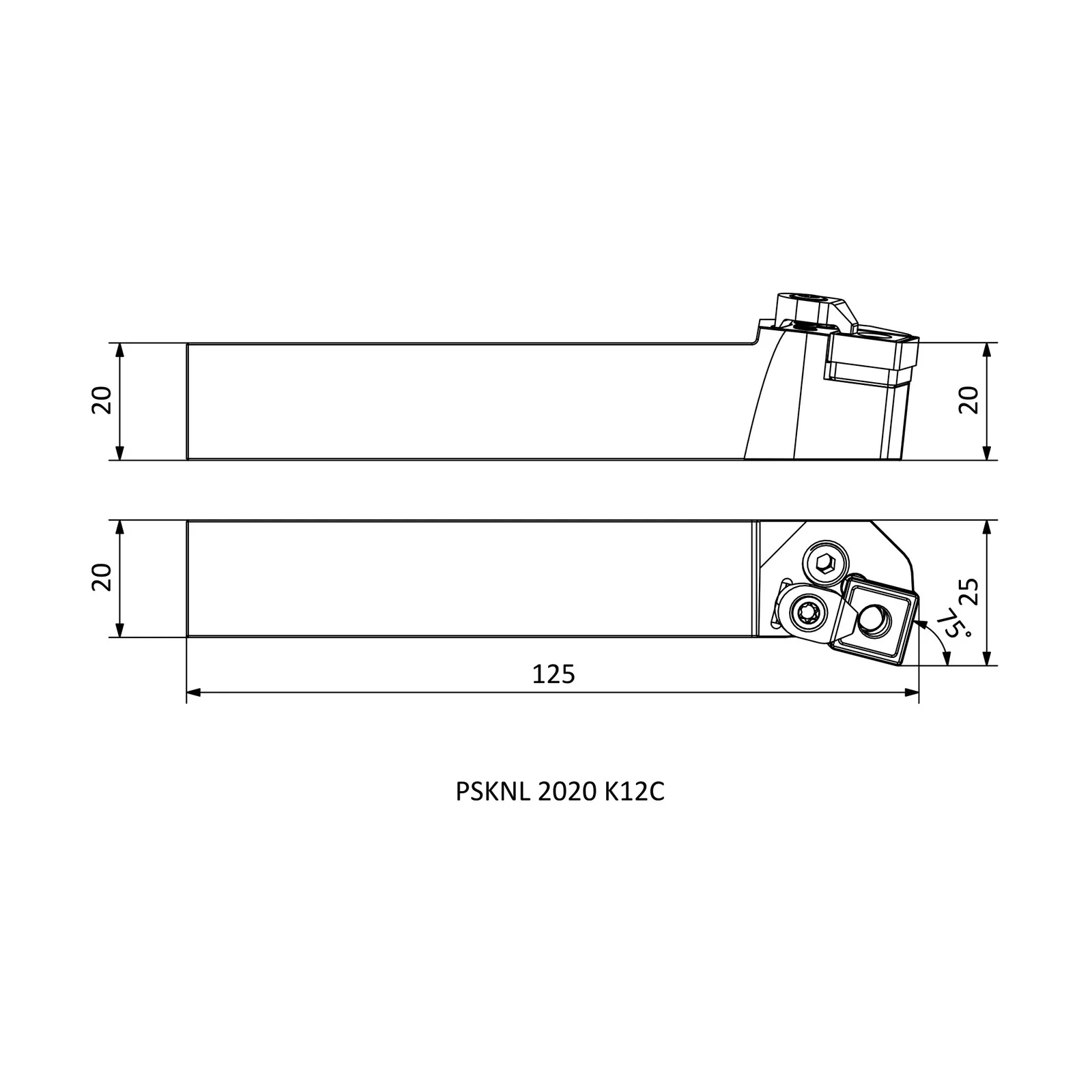

Specifications — PSKNL 2020 K12C
| Insert Code | Insert designation | SNM. 1204.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 25 |
| HF=H | Functional height (mm) | 20 |
| B | Shank width (mm) | 20 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 20 sizes in PSKNR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| PSKNL 2020 K09 | L | 125 | 25 | 20 |
| PSKNR 2020 K09 | R | 125 | 25 | 20 |
| PSKNL 2020 K12C | L | 125 | 25 | 20 |
| PSKNR 2020 K12C | R | 125 | 25 | 20 |
| PSKNL 2525 M12C | L | 150 | 32 | 25 |
| PSKNR 2525 M12C | R | 150 | 32 | 25 |
| PSKNL 3232 P12C | L | 170 | 40 | 32 |
| PSKNR 3232 P12C | R | 170 | 40 | 32 |
| PSKNL 2525 M15C | L | 150 | 32 | 25 |
| PSKNR 2525 M15C | R | 150 | 32 | 25 |
| PSKNL 3232 P15C | L | 170 | 40 | 32 |
| PSKNR 3232 P15C | R | 170 | 40 | 32 |
| PSKNL 3232 P19C | L | 170 | 40 | 32 |
| PSKNR 3232 P19C | R | 170 | 40 | 32 |
| PSKNL 4040 S19C | L | 250 | 50 | 40 |
| PSKNR 4040 S19C | R | 250 | 50 | 40 |
| PSKNL 4040 S25C | L | 250 | 50 | 40 |
| PSKNR 4040 S25C | R | 250 | 50 | 40 |
| PSKNL 5050 S25C | L | 250 | 60 | 50 |
| PSKNR 5050 S25C | R | 250 | 60 | 50 |
