PSSNR/L

18 sizes available · 7 specification fields · standard: ISO

PSSNR/L is an external turning tool holder that takes negative square (S-type) inserts. It is listed here in 18 sizes, 16–40 × 16–40 mm shank, right- and left-hand versions, each with full specifications and a dimensioned drawing. Typical use: external turning, facing and profiling.

Insert compatibility

This family is built for the following insert designations (as listed in the catalogue data). The exact size in each row of the table below is in the Insert designation column.

SNM. 0903..
SNM. 1204..
SNM. 1506..
SNM. 1906..
SNM. 2509..

Choose a size ↓ Ask about PSSNR/L

Specifications

Product code	Insert designation	Cutting direction (hand)	Functional length (mm)	Functional width (mm)	Functional height (mm)	Shank width (mm)
PSSNL 1616 H09	SNM. 0903..	L	100	20	16	16
PSSNR 1616 H09	SNM. 0903..	R	100	20	16	16
PSSNL 2020 K09	SNM. 0903..	L	125	25	20	20
PSSNR 2020 K09	SNM. 0903..	R	125	25	20	20
PSSNL 2020 K12C	SNM. 1204..	L	125	25	20	20
PSSNR 2020 K12C	SNM. 1204..	R	125	25	20	20
PSSNL 2525 M12C	SNM. 1204..	L	150	32	25	25

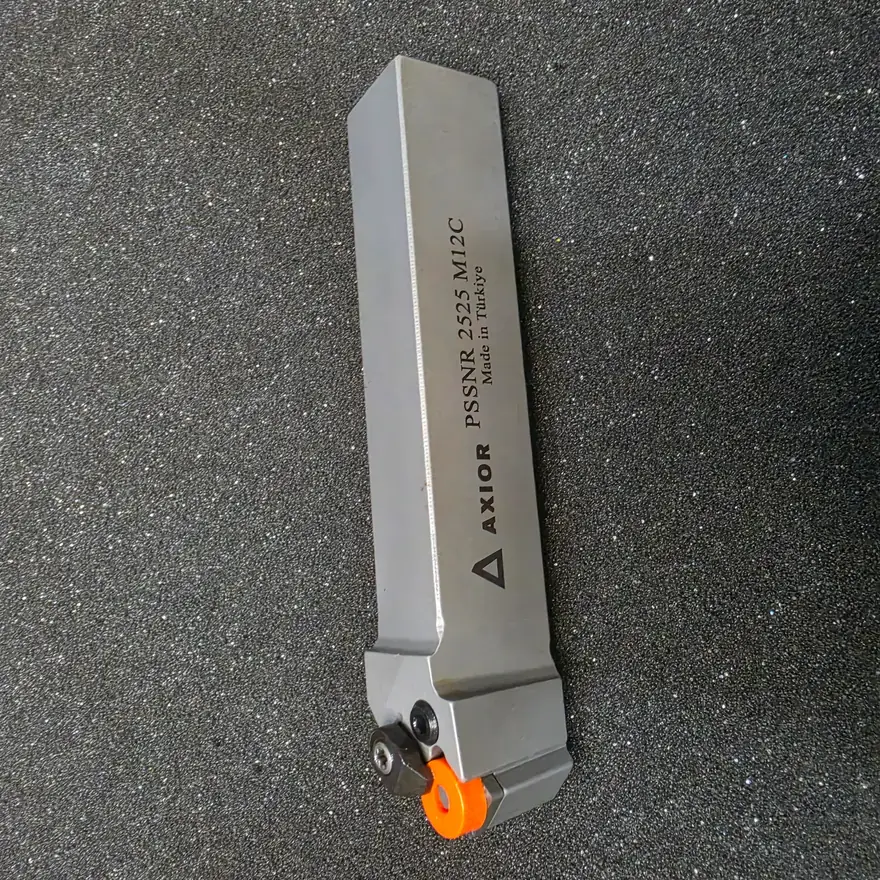

PSSNR 2525 M12C	SNM. 1204..	R	150	32	25	25
PSSNL 3232 P12C	SNM. 1204..	L	170	40	32	32
PSSNR 3232 P12C	SNM. 1204..	R	170	40	32	32
PSSNL 3232 P15C	SNM. 1506..	L	170	40	32	32
PSSNR 3232 P15C	SNM. 1506..	R	170	40	32	32
PSSNL 3232 P19C	SNM. 1906..	L	170	40	32	32
PSSNR 3232 P19C	SNM. 1906..	R	170	40	32	32
PSSNL 4040 S19C	SNM. 1906..	L	250	50	40	40
PSSNR 4040 S19C	SNM. 1906..	R	250	50	40	40
PSSNL 4040 S25C	SNM. 2509..	L	250	50	40	40
PSSNR 4040 S25C	SNM. 2509..	R	250	50	40	40
