Tool Holders / P-System External Turning Toolholders
PTTNL 2525 M16
PTTNR/L series · see all 12 sizes
Insert compatibility
This size is built for the insert designation TNM. 1604 (as listed in the catalogue data).

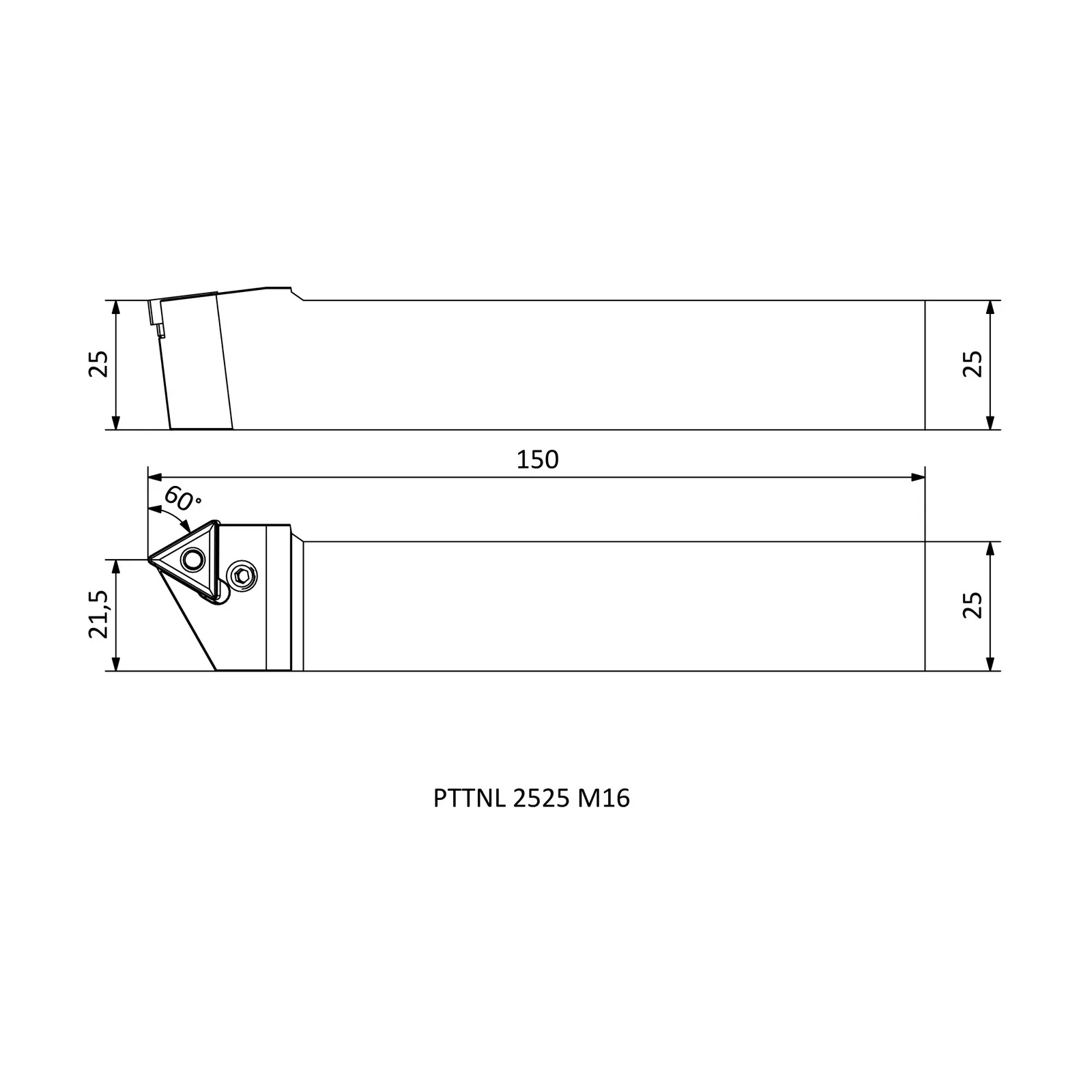

Specifications — PTTNL 2525 M16
| Insert Code | Insert designation | TNM. 1604.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| LF | Functional length (mm) | 150 |
| WF | Functional width (mm) | 21.5 |
| HF=H | Functional height (mm) | 25 |
| B | Shank width (mm) | 25 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 12 sizes in PTTNR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| PTTNL 1616 H16 | L | 100 | 13 | 16 |
| PTTNR 1616 H16 | R | 100 | 13 | 16 |
| PTTNL 2020 K16 | L | 125 | 17 | 20 |
| PTTNR 2020 K16 | R | 125 | 17 | 20 |
| PTTNL 2525 M16 | L | 150 | 21.5 | 25 |
| PTTNR 2525 M16 | R | 150 | 21.5 | 25 |
| PTTNL 3232 P16 | L | 170 | 31 | 32 |
| PTTNR 3232 P16 | R | 170 | 31 | 32 |
| PTTNL 2525 M22C | L | 150 | 20.5 | 32 |
| PTTNR 2525 M22C | R | 150 | 20.5 | 32 |
| PTTNL 3232 P22C | L | 170 | 29 | 32 |
| PTTNR 3232 P22C | R | 170 | 29 | 32 |
