Tool Holders / P-System External Turning Toolholders

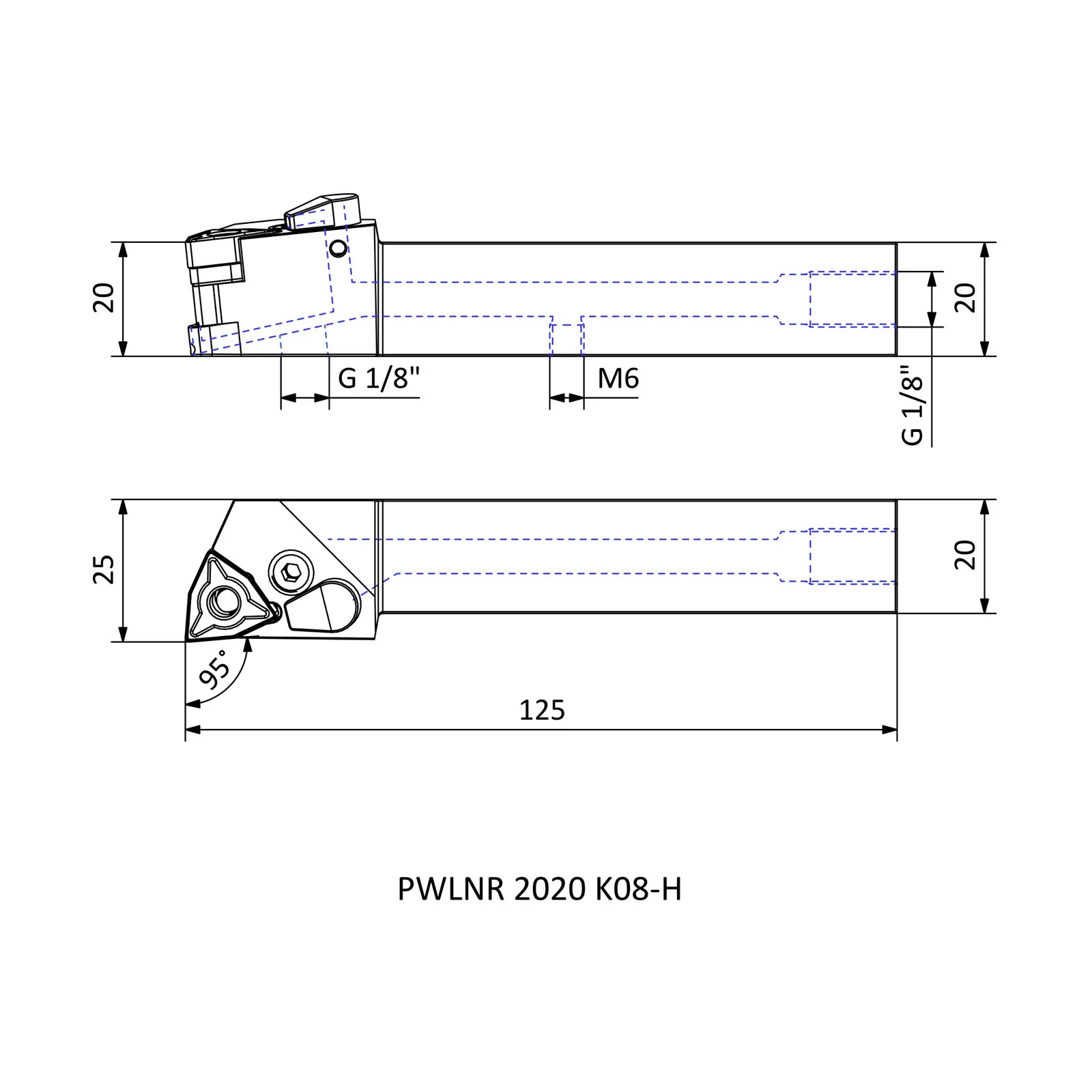

PWLNR 2020 K08-H
PWLNR/L-H series · see all 4 sizes
Insert compatibility
This size is built for the insert designation WNM. 0804 (as listed in the catalogue data).
Specifications — PWLNR 2020 K08-H
| Insert Code | Insert designation | WNM. 0804.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 125 |
| WF | Functional width (mm) | 25 |
| HF=H | Functional height (mm) | 20 |
| B | Shank width (mm) | 20 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 4 sizes in PWLNR/L-H
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Functional height (mm) |
|---|---|---|---|---|
| PWLNL 2020 K08-H | L | 125 | 25 | 20 |
| PWLNR 2020 K08-H | R | 125 | 25 | 20 |
| PWLNL 2525 M08-H | L | 150 | 32 | 25 |
| PWLNR 2525 M08-H | R | 150 | 32 | 25 |
