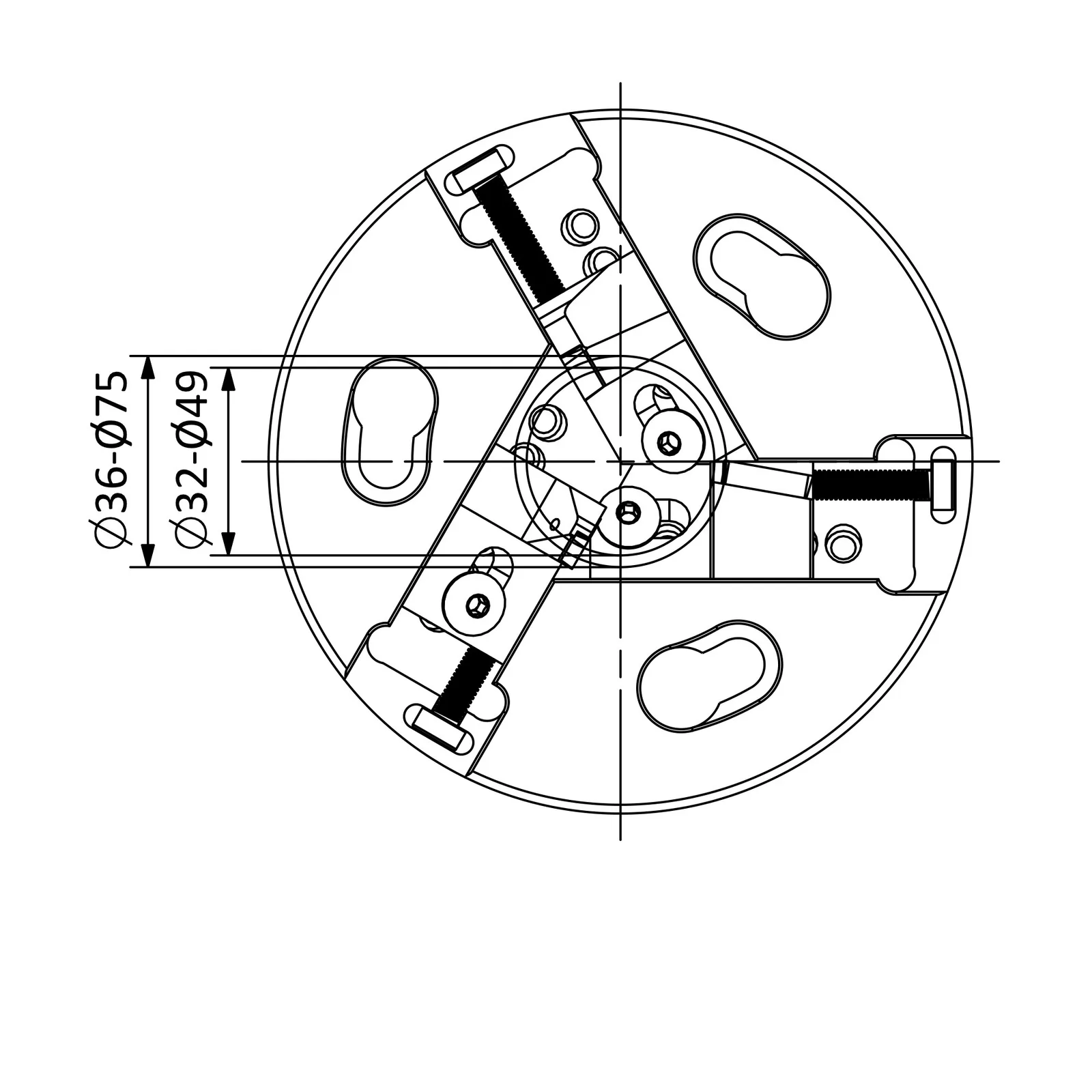

Specifications — ACPBT-7
| Product Direction | Cutting direction (hand) | R |
|---|---|---|
| D max iC | D max iC | 49-53 |
| D max dis | D max dis | 75 |
| D min iC | D min iC | 32-36 |
| D min dis | D min dis | 36 |
| Max iC dis | Max iC dis | 27 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
