Specifications — ABHRS-D40x80-W32-L140
| Product Direction | Cutting direction (hand) | R |
|---|---|---|
| DCON | Connection diameter (mm) | 32 |
| OAL | Overall length (mm) | 140 |
| LF | Functional length (mm) | 80 |
| DCN-DCX | Cutting diameter range, DCN-DCX (mm) | 50-68 |
| DCONMS | Connection diameter, machine side (mm) | 40 |

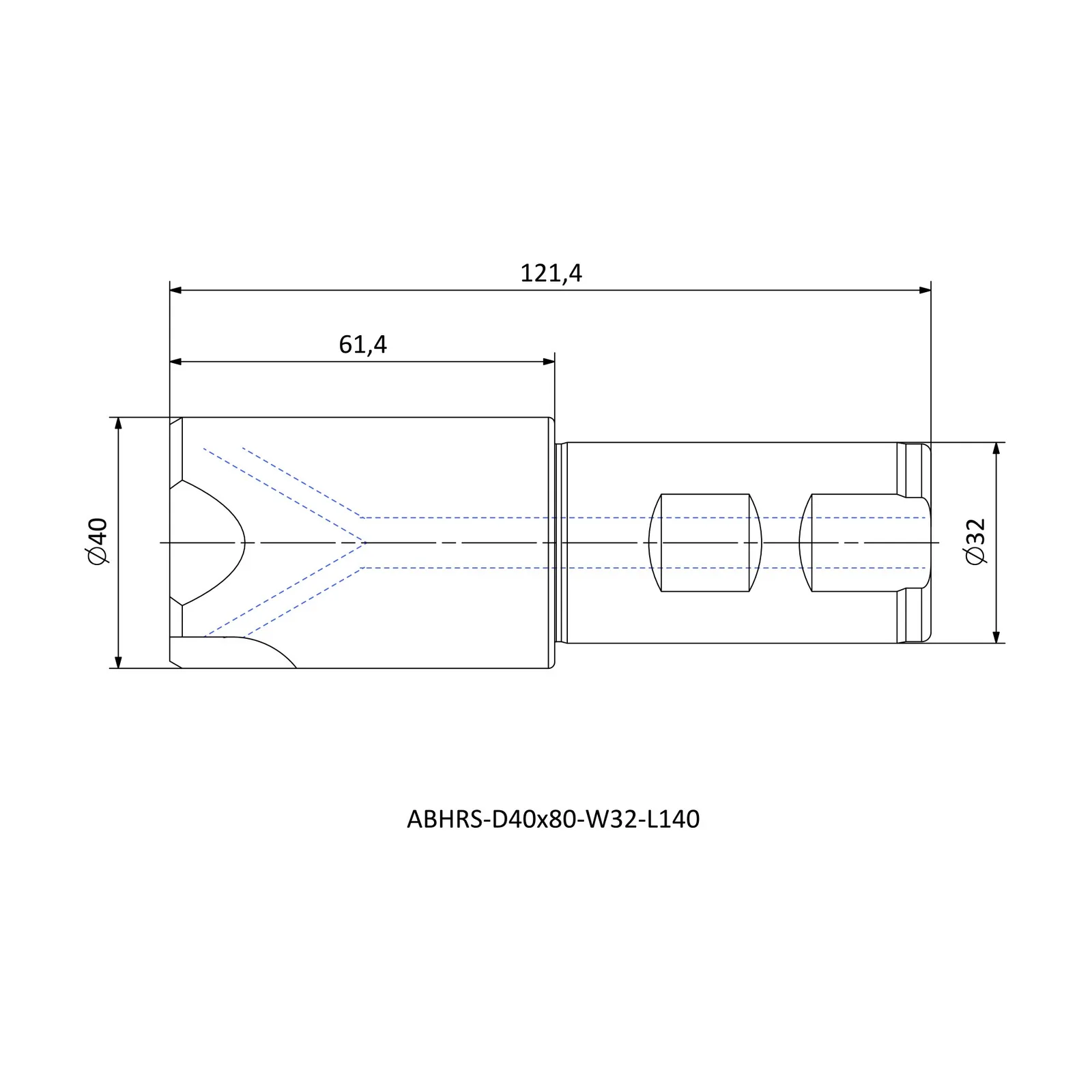

| L1 | Dimension L1 — see drawing (mm) | 0 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 24 sizes in ABHRS
| Product code | Cutting direction (hand) | Connection diameter (mm) | Overall length (mm) | Bore diameter (mm) |
|---|---|---|---|---|
| ABHRS-D25x60-W20-L110 | R | 20 | 110 | – |
| ABHRS-D50x100-W32-L160 | R | 32 | 160 | 54 |
| ABHRS-D25x110-W20-L160 | R | 20 | 160 | – |
| ABHRS-D25x180-W20-L230 | R | 20 | 230 | – |
| ABHRS-D50x220-W32-L280 | R | 32 | 280 | 54 |
| ABHRS-D63x130-W40-L200 | R | 40 | 200 | 72 |
| ABHRS-D80x230-W40-L300 | R | 40 | 300 | 95 |
| ABHR-D160x200-W40-L300-B-CC12 | R | 40 | 300 | 95 |
| ABHRS-D32X194-W25-L250 | R | 25 | 250 | – |
| ABHRS-D32X114-W25-L170 | R | 25 | 170 | – |
| ABHRS-D32X64-W25-L120 | R | 25 | 120 | – |
| ABHRS-D16x102-W16-L150 | R | 16 | 150 | – |
| ABHRS-D20x150-W20-L200 | R | 20 | 200 | – |
| ABHRS-D40x140-W32-L200 | R | 32 | 200 | – |
| ABHRS-D16x42-W16-L90 | R | 16 | 90 | – |
| ABHRS-D20x50-W20-L100 | R | 20 | 100 | – |
| ABHRS-D40x220-W32-L280 | R | 32 | 280 | – |
| ABHRS-D63x80-W32-L140 | R | 32 | 140 | 72 |
| ABHRS-D80x140-W40-L210 | R | 40 | 210 | 95 |
| ABHRS-D16x152-W16-L200 | R | 16 | 200 | – |
| ABHRS-D20x100-W20-L150 | R | 20 | 150 | – |
| ABHRS-D40x80-W32-L140 | R | 32 | 140 | – |
| ABHRS-D50x150-W32-L210 | R | 32 | 210 | 54 |
| ABHRS-D63x230-W40-L300 | R | 40 | 300 | 72 |
