SCLCR/L

10 sizes available · 10 specification fields · standard: ISO

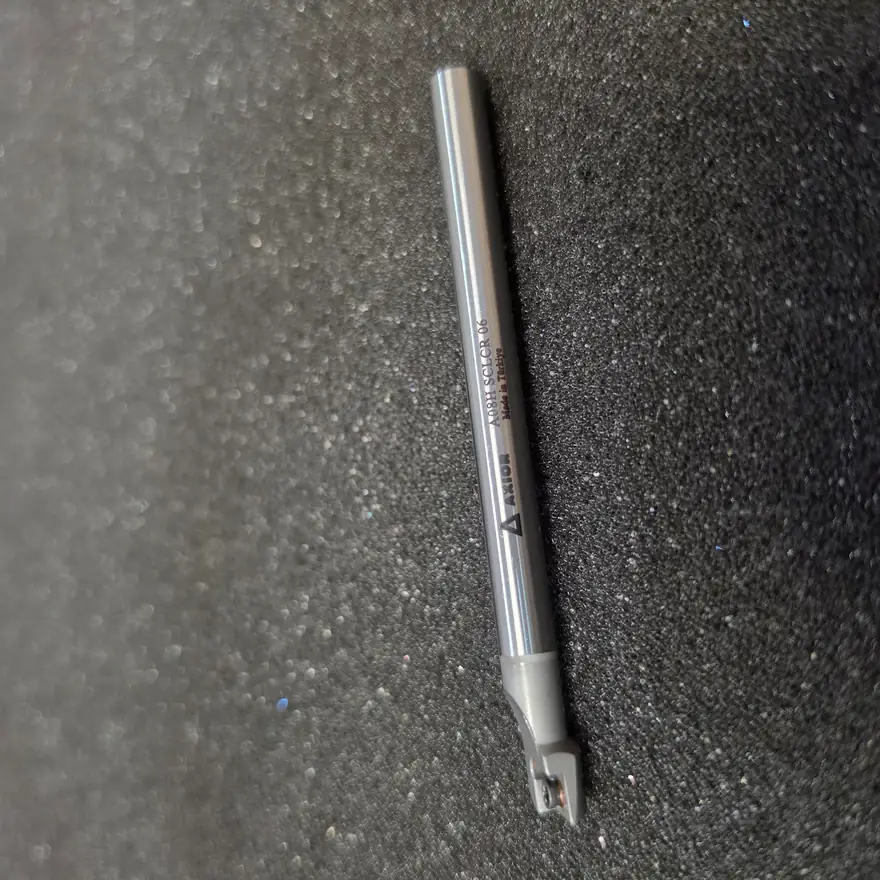

SCLCR/L is a boring bar for internal turning that takes positive 80° rhombic (C-type) inserts. It is listed here in 10 sizes, 7.3–30 mm shank height, right- and left-hand versions, each with full specifications and a dimensioned drawing. Typical use: boring, internal turning and back-facing.

Insert compatibility

This family is built for the following insert designations (as listed in the catalogue data). The exact size in each row of the table below is in the Insert designation column.

CC.. 0602..
CC.. 09T3..
CC.T 1204..

Choose a size ↓ Ask about SCLCR/L

Specifications

Product code	Insert designation	Cutting direction (hand)	Connection diameter (mm)	Bore diameter (mm)	Functional length (mm)	Functional width (mm)	Usable length (mm)	Shank height (mm)	Minimum working diameter (mm)
A08H SCLCL 06	CC.. 0602..	L	8	8	100	6	20	7.3	≥11
A10H SCLCL 06	CC.. 0602..	L	10	10	100	7	25	9	≥13
A12H SCLCL 06	CC.. 0602..	L	12	12	100	9	25	11	≥16
A16M SCLCL 09	CC.. 09T3..	L	16	16	150	11	35	14.8	≥20
A32S SCLCR 12	CC.T 1204..	R	32	32	250	22	60	30	≥40
A32S SCLCL 12	CC.T 1204..	L	32	32	250	22	60	30	≥40
A08H SCLCR 06	CC.. 0602..	R	8	8	100	6	20	7.3	≥11
A10H SCLCR 06	CC.. 0602..	R	10	10	100	7	25	9	≥13
A12H SCLCR 06	CC.. 0602..	R	12	12	100	9	25	11	≥16
A16M SCLCR 09	CC.. 09T3..	R	16	16	150	11	35	14.8	≥20
