Tool Holders / S-System Boring Bars
A12H SDQCR 07
SDQCR/L series · see all 34 sizes
Insert compatibility
This size is built for the insert designation DC.T 0702 (as listed in the catalogue data).

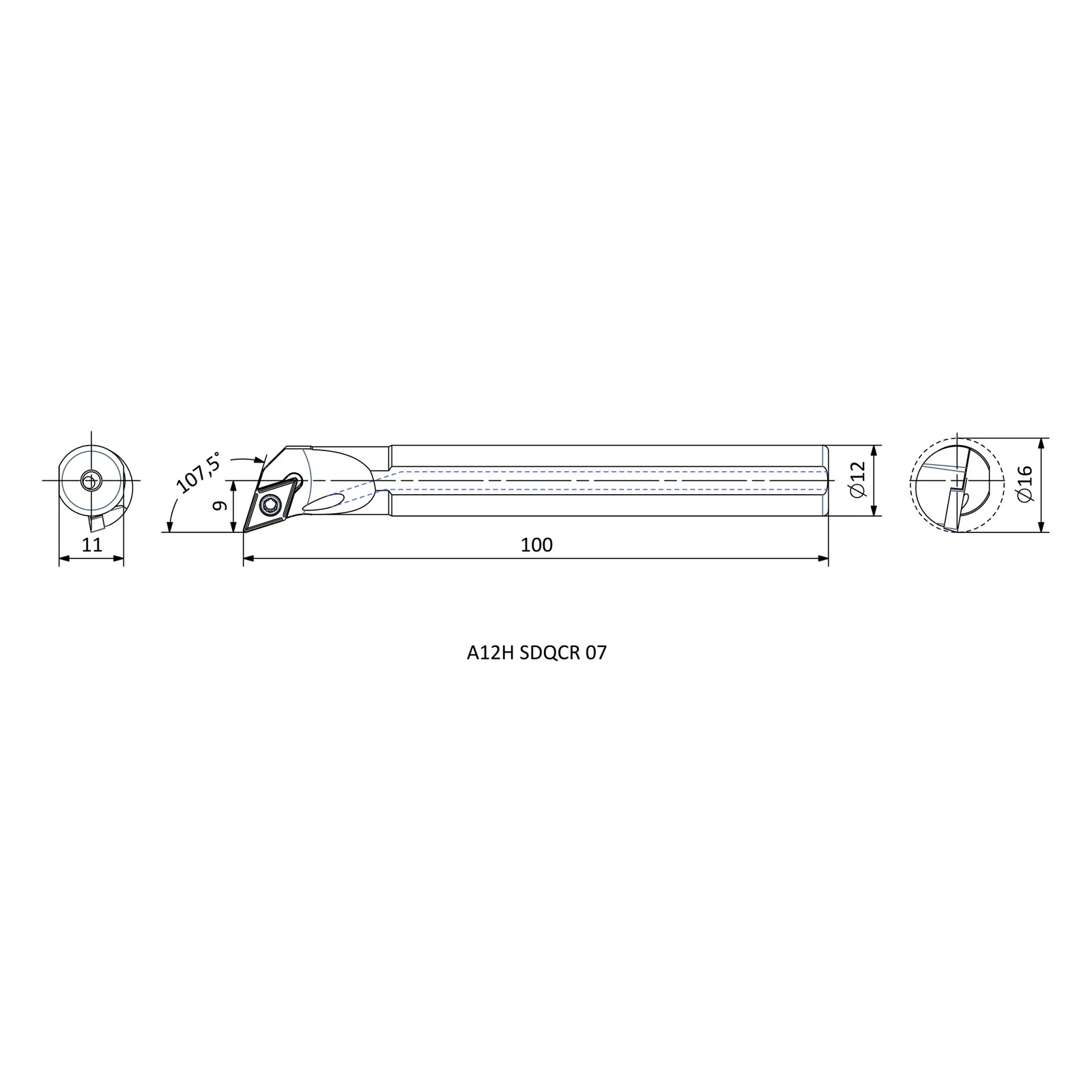

Specifications — A12H SDQCR 07
| Insert Code | Insert designation | DC.T 0702.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 12 |
| LF | Functional length (mm) | 100 |
| WF | Functional width (mm) | 9 |
| H | Shank height (mm) | 11 |
| D min | Minimum working diameter (mm) | ≥16 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 34 sizes in SDQCR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S10K SDQCR 07 | R | 10 | 125 | 7 |
| S10K SDQCL 07 | L | 10 | 125 | 7 |
| S12K SDQCR 07 | R | 12 | 125 | 9 |
| S12K SDQCL 07 | L | 12 | 125 | 9 |
| S16P SDQCR 07 | R | 16 | 170 | 11 |
| S16P SDQCL 07 | L | 16 | 170 | 11 |
| S20R SDQCR 07 | R | 20 | 200 | 13 |
| S20R SDQCL 07 | L | 20 | 200 | 13 |
| S16P SDQCR 11 | R | 16 | 170 | 11 |
| S16P SDQCL 11 | L | 16 | 170 | 11 |
| S20R SDQCR 11 | R | 20 | 200 | 13 |
| S20R SDQCL 11 | L | 20 | 200 | 13 |
| S25S SDQCR 11 | R | 25 | 250 | 17 |
| S25S SDQCL 11 | L | 25 | 250 | 17 |
| S32T SDQCR 11 | R | 32 | 300 | 22 |
| S32T SDQCL 11 | L | 32 | 300 | 22 |
| S40U SDQCR 11 | R | 40 | 350 | 27 |
| S40U SDQCL 11 | L | 40 | 350 | 27 |
| A10H SDQCR 07 | R | 10 | 100 | 7 |
| A10H SDQCL 07 | L | 10 | 100 | 7 |
| A12H SDQCR 07 | R | 12 | 100 | 9 |
| A12H SDQCL 07 | L | 12 | 100 | 9 |
| A16M SDQCR 07 | R | 16 | 150 | 11 |
| A16M SDQCL 07 | L | 16 | 150 | 11 |
| A20P SDQCR 07 | R | 20 | 170 | 13 |
| A20P SDQCL 07 | L | 20 | 170 | 13 |
| A16M SDQCR 11 | R | 16 | 150 | 11 |
| A16M SDQCL 11 | L | 16 | 150 | 11 |
| A20P SDQCR 11 | R | 20 | 170 | 13 |
| A20P SDQCL 11 | L | 20 | 170 | 13 |
| A25R SDQCR 11 | R | 25 | 200 | 17 |
| A25R SDQCL 11 | L | 25 | 200 | 17 |
| A32S SDQCR 11 | R | 32 | 250 | 22 |
| A32S SDQCL 11 | L | 32 | 250 | 22 |
