Tool Holders / S-System Boring Bars
A12H STUCL 11
STUCR/L series · see all 38 sizes
Insert compatibility
This size is built for the insert designation TC.T 1102 (as listed in the catalogue data).

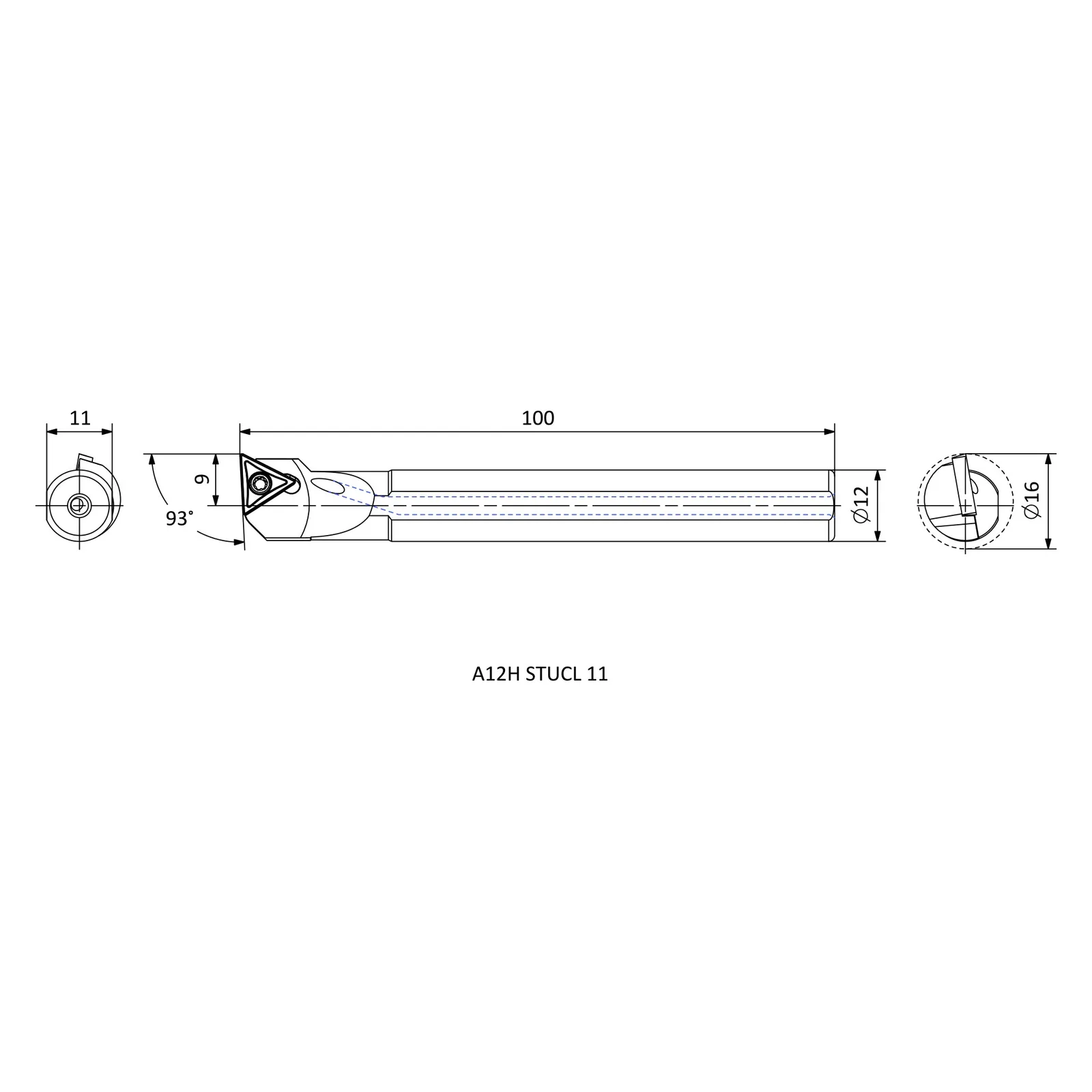

Specifications — A12H STUCL 11
| Insert Code | Insert designation | TC.T 1102.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| DCON | Connection diameter (mm) | 12 |
| LF | Functional length (mm) | 100 |
| WF | Functional width (mm) | 9 |
| H | Shank height (mm) | 11 |
| D min | Minimum working diameter (mm) | ≥16 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 38 sizes in STUCR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S20R STUCL 11 | L | 20 | 200 | 13 |
| S10K STUCL 09 | L | 10 | 125 | 7 |
| S10K STUCR 09 | R | 10 | 125 | 7 |
| S12K STUCL 09 | L | 12 | 125 | 9 |
| S12K STUCR 09 | R | 12 | 125 | 9 |
| S12K STUCL 11 | L | 12 | 125 | 9 |
| S12K STUCR 11 | R | 12 | 125 | 9 |
| S16P STUCL 11 | L | 16 | 170 | 11 |
| S16P STUCR 11 | R | 16 | 170 | 11 |
| S20R STUCR 11 | R | 20 | 200 | 13 |
| S16P STUCL 16 | L | 16 | 170 | 11 |
| S16P STUCR 16 | R | 16 | 170 | 11 |
| S20R STUCL 16 | L | 20 | 200 | 13 |
| S20R STUCR 16 | R | 20 | 200 | 13 |
| S25S STUCL 16 | L | 25 | 250 | 17 |
| S25S STUCR 16 | R | 25 | 250 | 17 |
| S32T STUCL 16 | L | 32 | 300 | 22 |
| S32T STUCR 16 | R | 32 | 300 | 22 |
| S40U STUCL 16 | L | 40 | 350 | 27 |
| S40U STUCR 16 | R | 40 | 350 | 27 |
| A10H STUCL 09 | L | 10 | 100 | 7 |
| A10H STUCR 09 | R | 10 | 100 | 7 |
| A12H STUCL 09 | L | 12 | 100 | 9 |
| A12H STUCR 09 | R | 12 | 100 | 9 |
| A12H STUCL 11 | L | 12 | 100 | 9 |
| A12H STUCR 11 | R | 12 | 100 | 9 |
| A16M STUCL 11 | L | 16 | 150 | 11 |
| A16M STUCR 11 | R | 16 | 150 | 11 |
| A20P STUCL 11 | L | 20 | 170 | 13 |
| A20P STUCR 11 | R | 20 | 170 | 13 |
| A16M STUCL 16 | L | 16 | 150 | 11 |
| A16M STUCR 16 | R | 16 | 150 | 11 |
| A20P STUCL 16 | L | 20 | 170 | 13 |
| A20P STUCR 16 | R | 20 | 170 | 13 |
| A25R STUCL 16 | L | 25 | 200 | 17 |
| A25R STUCR 16 | R | 25 | 200 | 17 |
| A32S STUCL 16 | L | 32 | 250 | 22 |
| A32S STUCR 16 | R | 32 | 250 | 22 |
