Tool Holders / S-System Boring Bars
S40U SVJBL 16
SVJBR/L series · see all 6 sizes
Insert compatibility
This size is built for the insert designation VB.T 1604 (as listed in the catalogue data).

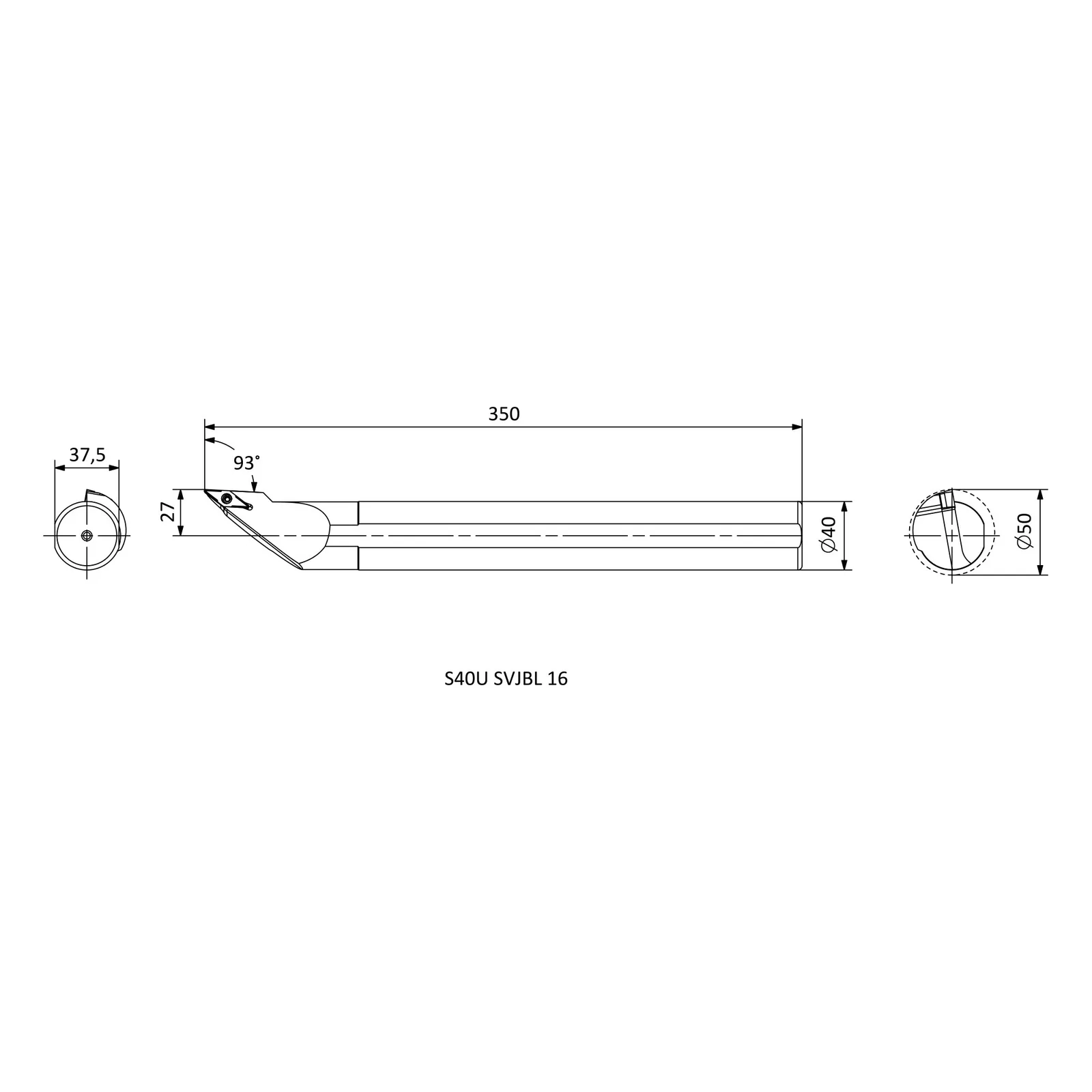

Specifications — S40U SVJBL 16
| Insert Code | Insert designation | VB.T 1604.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | L |
| DCON | Connection diameter (mm) | 40 |
| LF | Functional length (mm) | 350 |
| WF | Functional width (mm) | 27 |
| H | Shank height (mm) | 37.5 |
| D min | Minimum working diameter (mm) | ≥50 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in SVJBR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S25S SVJBL 16 | L | 25 | 250 | 17 |
| S25S SVJBR 16 | R | 25 | 250 | 17 |
| S32T SVJBL 16 | L | 32 | 300 | 22 |
| S32T SVJBR 16 | R | 32 | 300 | 22 |
| S40U SVJBL 16 | L | 40 | 350 | 27 |
| S40U SVJBR 16 | R | 40 | 350 | 27 |
