Tool Holders / S-System Boring Bars
A12H SVJCR 11
SVJCR/L series · see all 12 sizes
Insert compatibility
This size is built for the insert designation VC.T 1103 (as listed in the catalogue data).

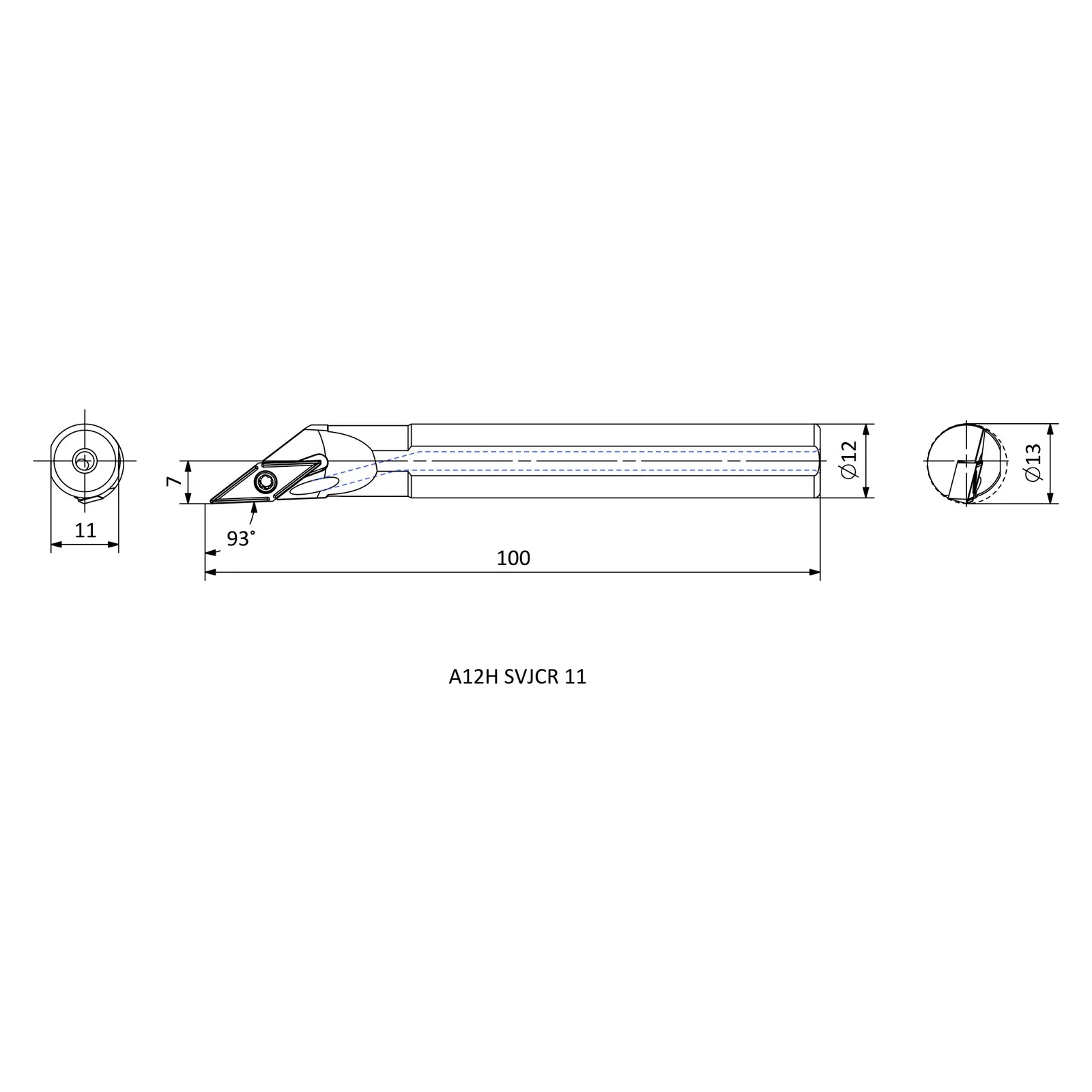

Specifications — A12H SVJCR 11
| Insert Code | Insert designation | VC.T 1103.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 12 |
| LF | Functional length (mm) | 100 |
| WF | Functional width (mm) | 7 |
| H | Shank height (mm) | 11 |
| D min | Minimum working diameter (mm) | ≥13 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 12 sizes in SVJCR/L
