Tool Holders / S-System Boring Bars
S0608H SWLCR 03
SWLCR/L series · see all 4 sizes
Insert compatibility
This size is built for the insert designation WC.. 0302 (as listed in the catalogue data).

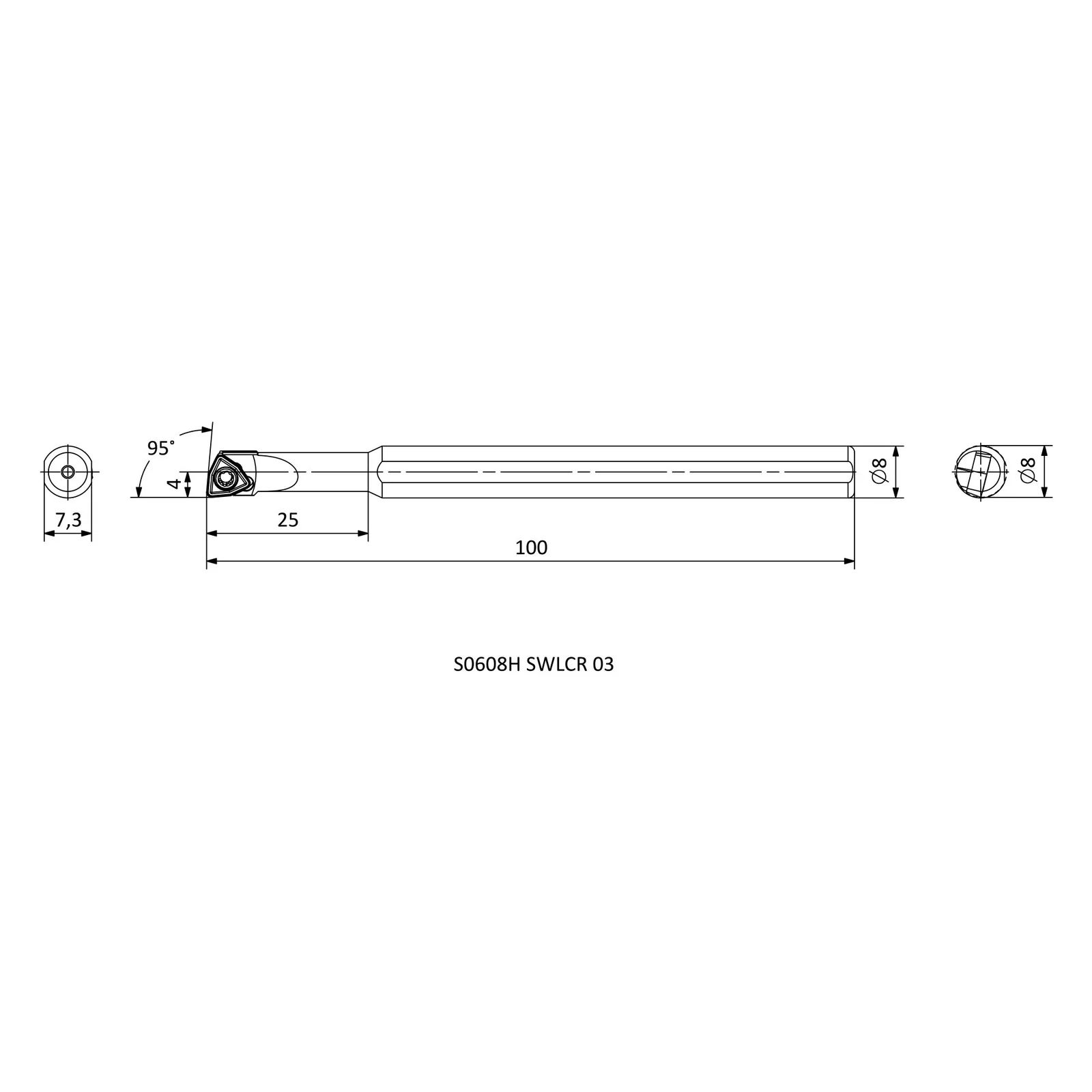

Specifications — S0608H SWLCR 03
| Insert Code | Insert designation | WC.. 0302.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 8 |
| LF | Functional length (mm) | 100 |
| WF | Functional width (mm) | 4 |
| H | Shank height (mm) | 7.3 |
| D min | Minimum working diameter (mm) | ≥08 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 4 sizes in SWLCR/L
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Functional width (mm) |
|---|---|---|---|---|
| S0608H SWLCL 03 | L | 8 | 100 | 4 |
| S0608H SWLCR 03 | R | 8 | 100 | 4 |
| S0810K SWLCL 03 | L | 10 | 125 | 6 |
| S0810K SWLCR 03 | R | 10 | 125 | 6 |
