Tool Holders / S-System Cartridge
SCSCR 12CA 12
SCSCR/L series · see all 6 sizes
Insert compatibility
This size is built for the insert designation CC.T 120408 (as listed in the catalogue data).

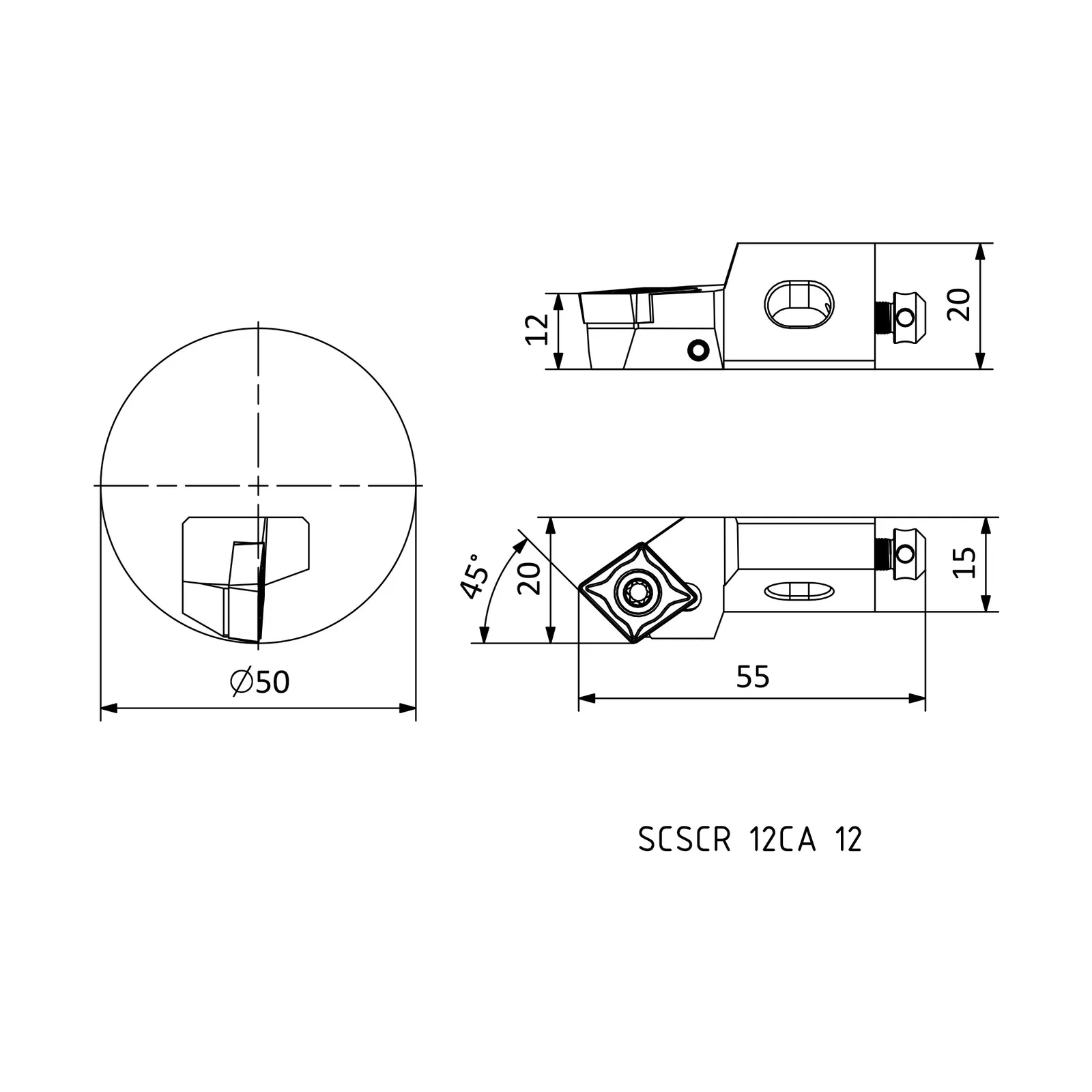

Specifications — SCSCR 12CA 12
| Insert Code | Insert designation | CC.T 120408 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 55 |
| WF | Functional width (mm) | 20 |
| B | Shank width (mm) | 15 |
| H | Shank height (mm) | 20 |
| HF | Functional height (mm) | 12 |
| D min | Minimum working diameter (mm) | ≥50 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in SCSCR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Shank width (mm) |
|---|---|---|---|---|
| SCSCL 06CA 06 | L | 30 | 8 | 6 |
| SCSCR 06CA 06 | R | 30 | 8 | 6 |
| SCSCL 10CA 09 | L | 50 | 14 | 11 |
| SCSCR 10CA 09 | R | 50 | 14 | 11 |
| SCSCL 12CA 12 | L | 55 | 20 | 15 |
| SCSCR 12CA 12 | R | 55 | 20 | 15 |
