Tool Holders / S-System Cartridge
SSKCR 10CA 09
SSKCR/L series · see all 4 sizes
Insert compatibility
This size is built for the insert designation SC.T 09T308 (as listed in the catalogue data).

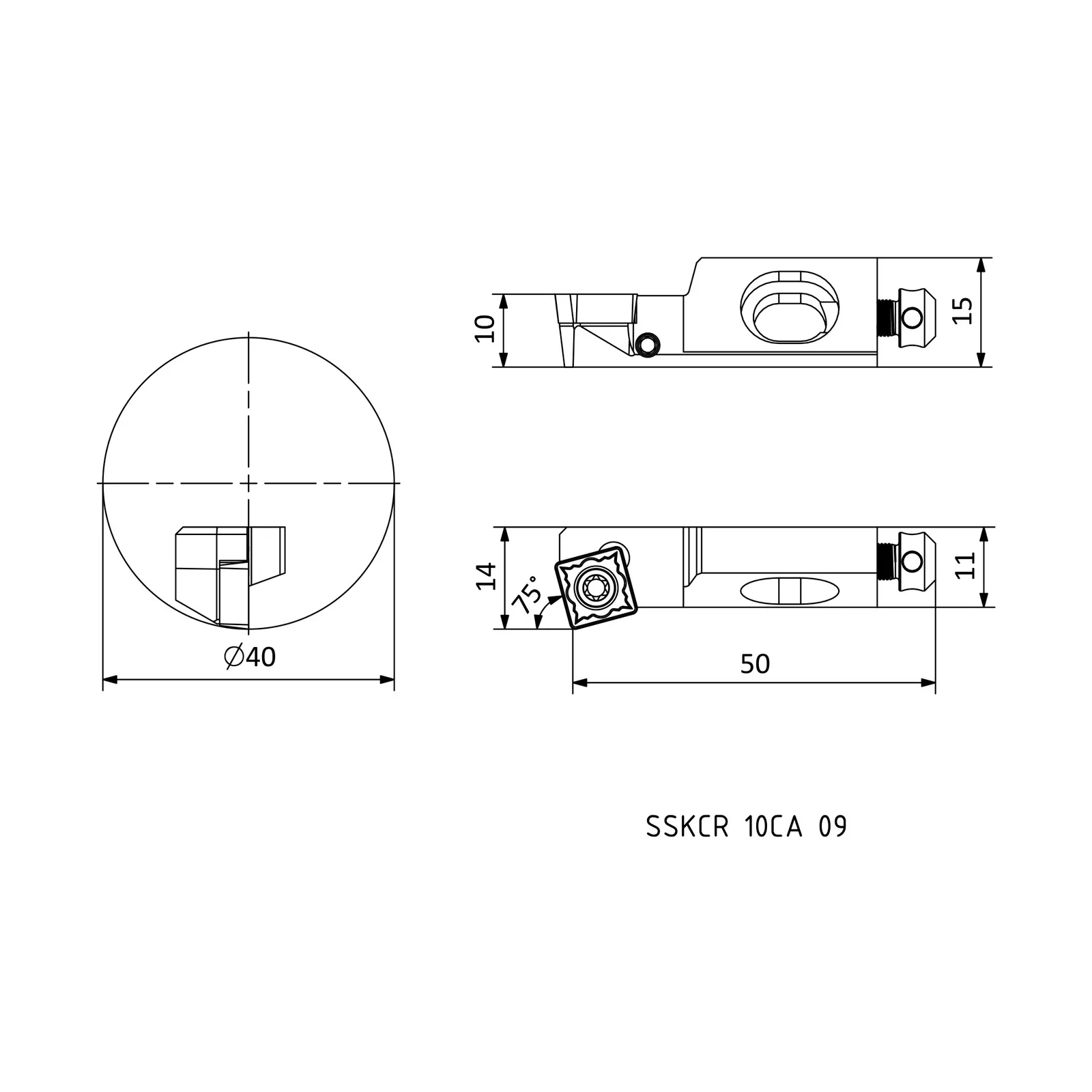

Specifications — SSKCR 10CA 09
| Insert Code | Insert designation | SC.T 09T308 |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 50 |
| WF | Functional width (mm) | 14 |
| B | Shank width (mm) | 11 |
| H | Shank height (mm) | 15 |
| HF | Functional height (mm) | 10 |
| D min | Minimum working diameter (mm) | ≥40 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 4 sizes in SSKCR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Shank width (mm) |
|---|---|---|---|---|
| SSKCL 10CA 09 | L | 50 | 14 | 11 |
| SSKCR 10CA 09 | R | 50 | 14 | 11 |
| SSKCL 12CA 12 | L | 55 | 20 | 15 |
| SSKCR 12CA 12 | R | 55 | 20 | 15 |
