Tool Holders / S-System Cartridge
STTCR 12CA 16
STTCR/L series · see all 6 sizes
Insert compatibility
This size is built for the insert designation TC.T 16T3 (as listed in the catalogue data).

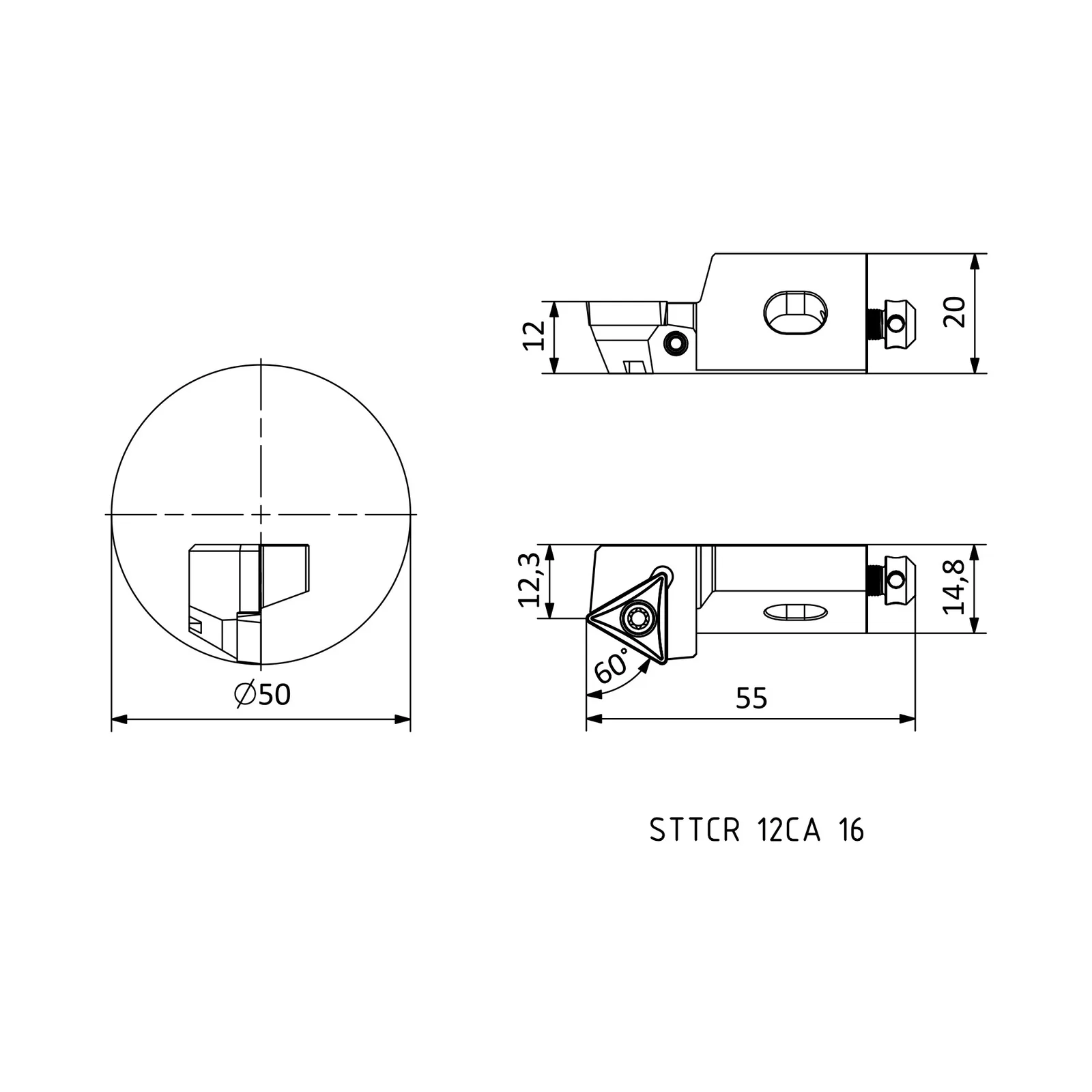

Specifications — STTCR 12CA 16
| Insert Code | Insert designation | TC.T 16T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| LF | Functional length (mm) | 55 |
| WF | Functional width (mm) | 20 |
| B | Shank width (mm) | 14.8 |
| H | Shank height (mm) | 20 |
| HF | Functional height (mm) | 12 |
| D min | Minimum working diameter (mm) | ≥50 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 6 sizes in STTCR/L
| Product code | Cutting direction (hand) | Functional length (mm) | Functional width (mm) | Shank width (mm) |
|---|---|---|---|---|
| STTCL 08CA 09 | L | 32 | 6 | 8 |
| STTCR 08CA 09 | R | 32 | 6 | 8 |
| STTCL 10CA 11 | L | 50 | 9 | 11 |
| STTCR 10CA 11 | R | 50 | 9 | 11 |
| STTCL 12CA 16 | L | 55 | 20 | 14.8 |
| STTCR 12CA 16 | R | 55 | 20 | 14.8 |
