Tool Holders / S-System End Mills

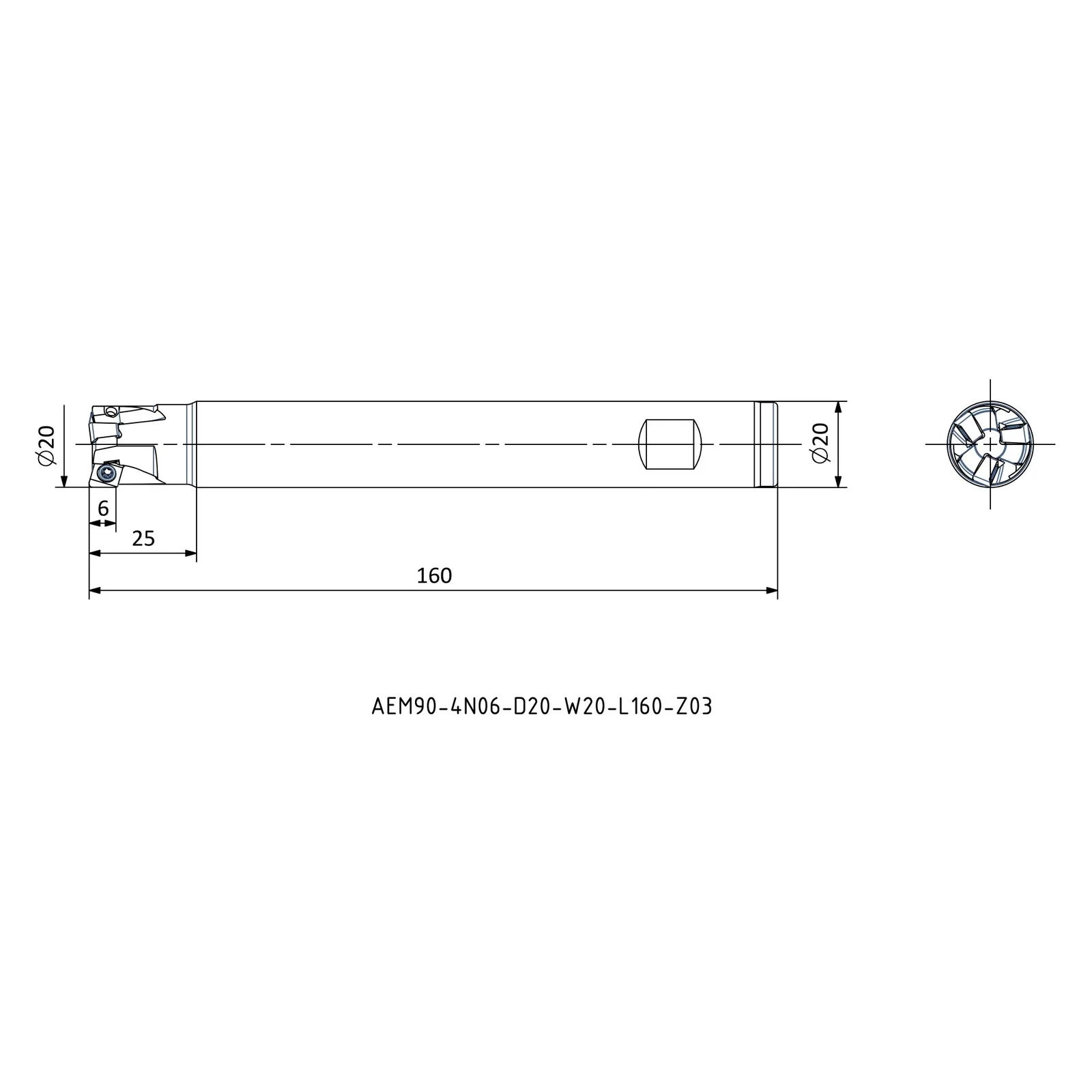

AEM90-4N06-D20-W20-L160-Z03
AEM90-4N series · see all 5 sizes
Insert compatibility
This size is built for the insert designation 4NKT (as listed in the catalogue data).
Specifications — AEM90-4N06-D20-W20-L160-Z03
| Insert Code | Insert designation | 4NKT 0603.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 20 |
| DCON | Connection diameter (mm) | 20 |
| LF | Functional length (mm) | 160 |
| LH | Head length (mm) | 25 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 6 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 5 sizes in AEM90-4N
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-4N06-D16-W16-L120-Z02-H | R | 16 | 16 | 120 |
| AEM90-4N06-D16-W16-L160-Z02 | R | 16 | 16 | 160 |
| AEM90-4N06-D20-W16-L120-Z03-H | R | 20 | 16 | 120 |
| AEM90-4N06-D20-W16-L160-Z03 | R | 20 | 16 | 160 |
| AEM90-4N06-D20-W20-L160-Z03 | R | 20 | 20 | 160 |
