Tool Holders / S-System End Mills

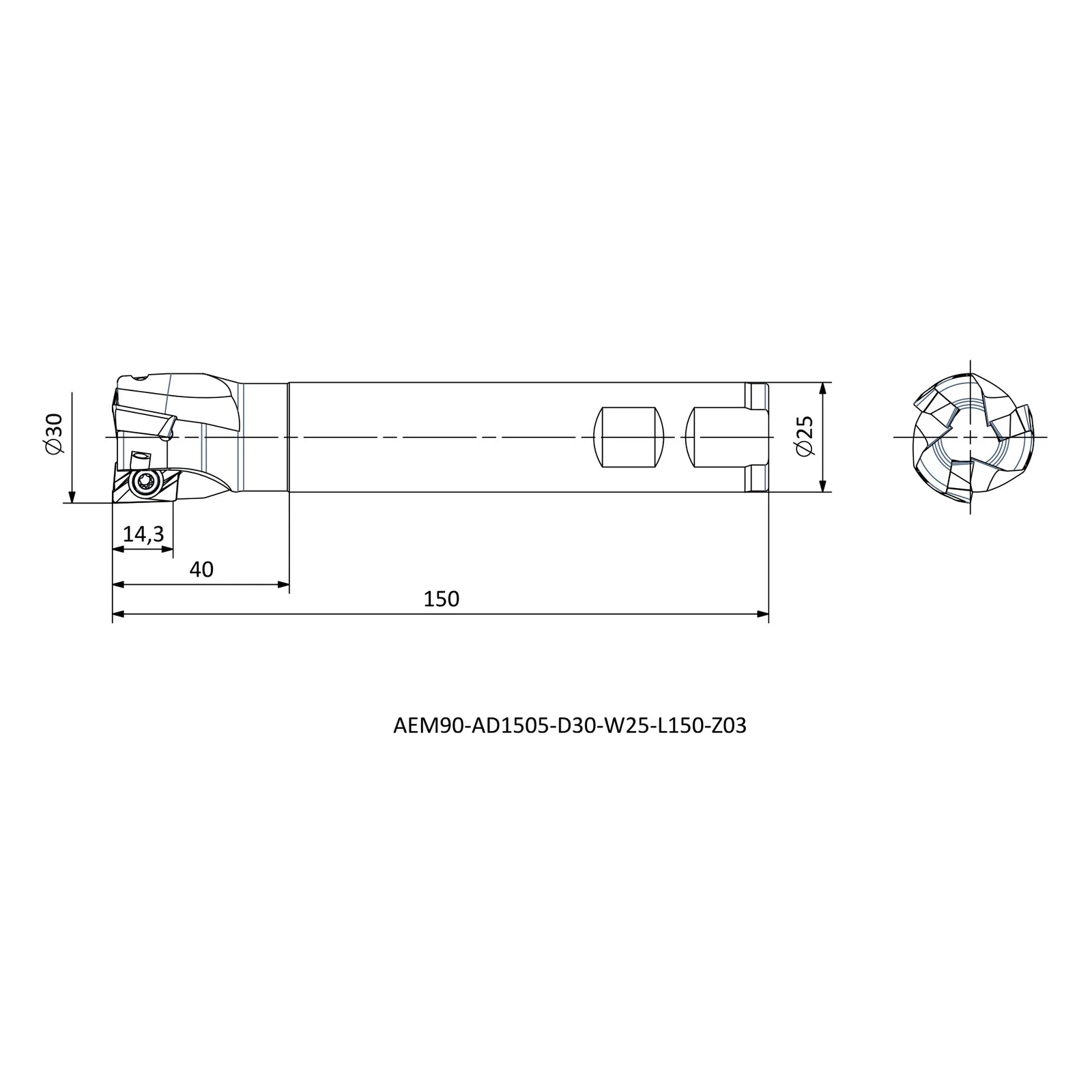

AEM90-AD1505-D30-W25-L150-Z03
AEM90-AD series · see all 3 sizes
Insert compatibility
This size is built for the insert designation AD.. 1505 (as listed in the catalogue data).
Specifications — AEM90-AD1505-D30-W25-L150-Z03
| Insert Code | Insert designation | AD.. 1505.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 30 |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 150 |
| LH | Head length (mm) | 40 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 14.3 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 3 sizes in AEM90-AD
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-AD1505-D25-W25-L150-Z02 | R | 25 | 25 | 150 |
| AEM90-AD1505-D30-W25-L150-Z03 | R | 30 | 25 | 150 |
| AEM90-AD1505-D32-W32-L150-Z03 | R | 32 | 32 | 150 |
