Tool Holders / S-System End Mills
AEM90-AD07-D10-C10-L80-Z02-H
AEM90-AD series · see all 21 sizes
Insert compatibility
This size is built for the insert designation ADMX 0702 (as listed in the catalogue data).

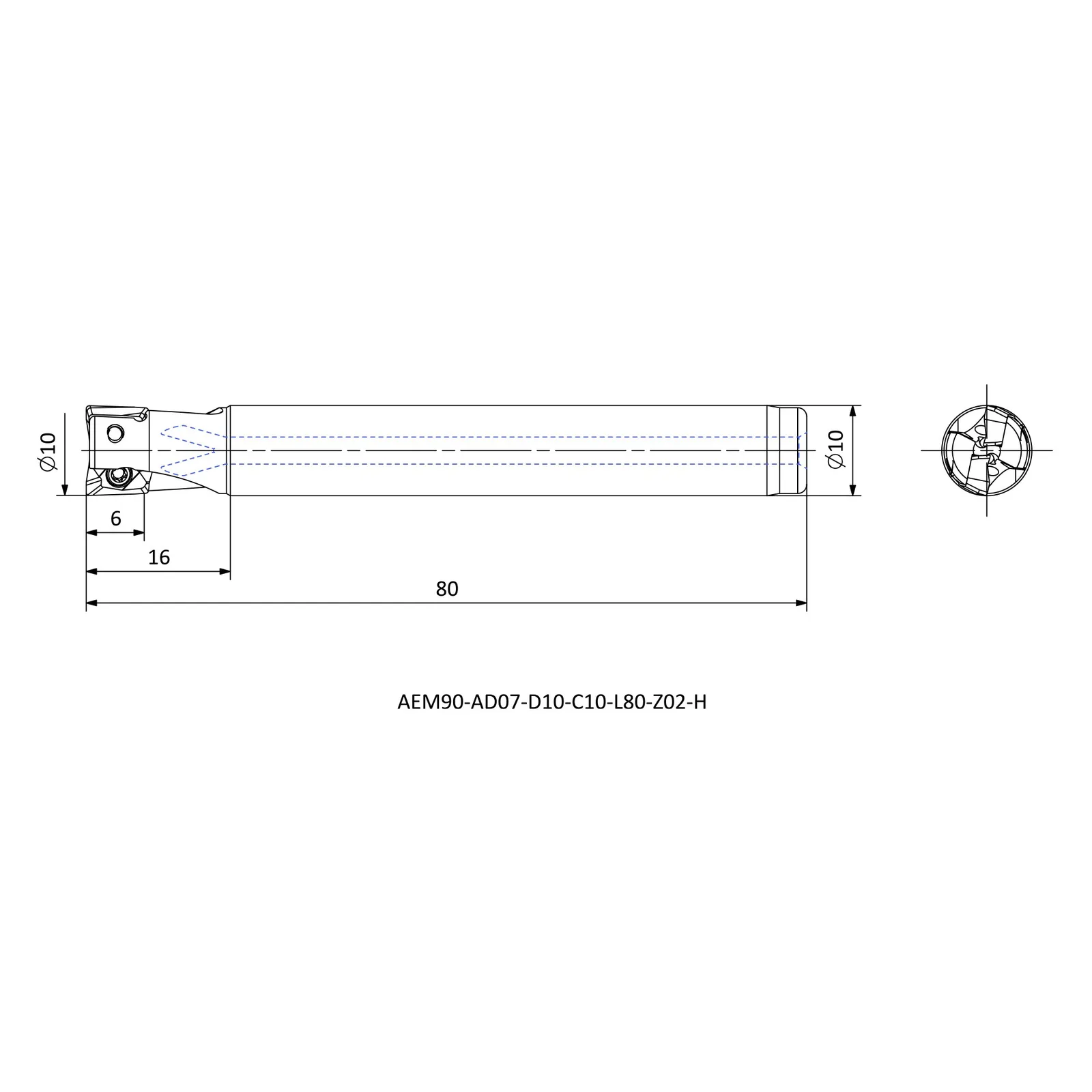

Specifications — AEM90-AD07-D10-C10-L80-Z02-H
| Insert Code | Insert designation | ADMX 0702.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 10 |
| DCON | Connection diameter (mm) | 10 |
| LF | Functional length (mm) | 80 |
| LH | Head length (mm) | 16 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 6 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 21 sizes in AEM90-AD
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-AD07-D20-C20-L125-Z05-H | R | 20 | 20 | 125 |
| AEM90-AD11-D20-C20-L150-Z03-H | R | 20 | 20 | 150 |
| AEM90-AD07-D10-C08-L90-Z02-H | R | 10 | 8 | 90 |
| AEM90-AD07-D16-C16-L110-Z04-H | R | 16 | 16 | 110 |
| AEM90-AD11-D16-C16-L135-Z02-H | R | 16 | 16 | 135 |
| AEM90-AD11-D20-C20-L150-Z02-H | R | 20 | 20 | 150 |
| AEM90-AD11-D22-C20-L150-Z03-H | R | 22 | 20 | 150 |
| AEM90-AD11-D25-C25-L170-Z03-H | R | 25 | 25 | 170 |
| AEM90-AD11-D25-C25-L170-Z04-H | R | 25 | 25 | 170 |
| AEM90-AD07-D10-C10-L80-Z02-H | R | 10 | 10 | 80 |
| AEM90-AD07-D12-C12-L90-Z03-H | R | 12 | 12 | 90 |
| AEM90-AD11-D18-C16-L160-Z02-H | R | 18 | 16 | 160 |
| AEM90-AD11-D30-C25-L200-Z04-H | R | 30 | 25 | 200 |
| AEM90-AD11-D30-C25-L165-Z04-H | R | 30 | 25 | 165 |
| AEM90-AD11-D22-C20-L200-Z03-H | R | 22 | 20 | 200 |
| AEM90-AD07-D25-C25-L140-Z06-H | R | 25 | 25 | 140 |
| AEM90-AD11-D28-C25-L165-Z04-H | R | 28 | 25 | 165 |
| AEM90-AD07-D12-C10-L80-Z03-H | R | 12 | 10 | 80 |
| AEM90-AD11-D18-C16-L135-Z02-H | R | 18 | 16 | 135 |
| AEM90-AD11-D28-C25-L200-Z04-H | R | 28 | 25 | 200 |
| AEM90-AD11-D32-C32-L195-Z05-H | R | 32 | 32 | 195 |
