Tool Holders / S-System End Mills
AEM90-AD13-D25-C25-L170-Z02-H
AEM90-AD series · see all 10 sizes
Insert compatibility
This size is built for the insert designation AD.. 1304 (as listed in the catalogue data).

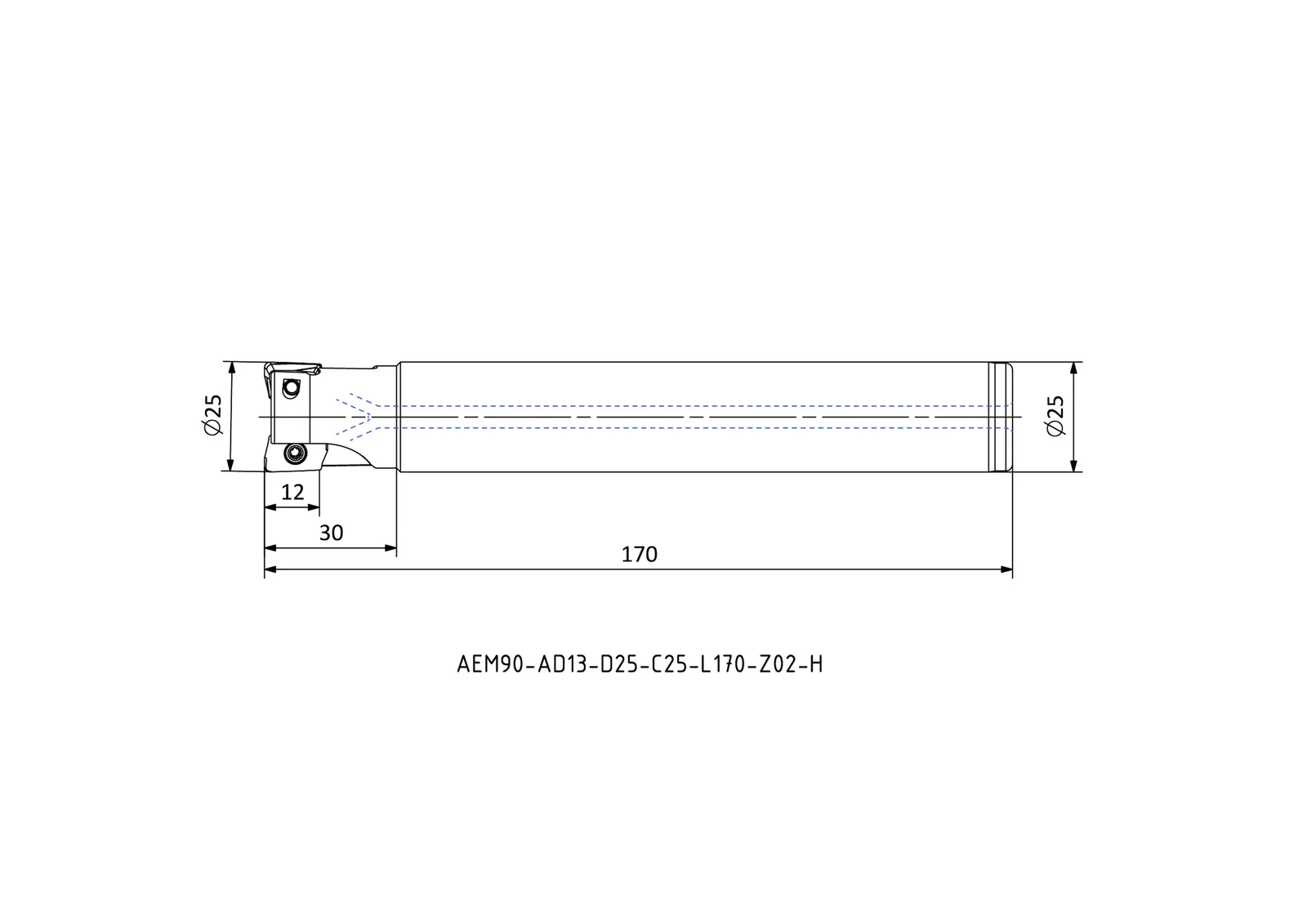

Specifications — AEM90-AD13-D25-C25-L170-Z02-H
| Insert Code | Insert designation | AD.. 1304.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 170 |
| DCX | Maximum diameter (mm) | 25 |
| LH | Head length (mm) | 30 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 12 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 10 sizes in AEM90-AD
| Product code | Cutting direction (hand) | Connection diameter (mm) | Functional length (mm) | Maximum diameter (mm) |
|---|---|---|---|---|
| AEM90-AD06-D10-C10-L100-Z02-H | R | 10 | 1000 | 10 |
| AEM90-AD06-D12-C12-L120-Z02-H | R | 12 | 120 | 12 |
| AEM90-AD06-D16-C16-L160-Z03-H | R | 16 | 160 | 16 |
| AEM90-AD10PR-D16-C15-L170-Z02-H | R | 15 | 170 | 16 |
| AEM90-AD10PR-D16-C16-L170-Z02-H | R | 16 | 170 | 16 |
| AEM90-AD10PR-D20-C19-L170-Z03-H | R | 19 | 170 | 20 |
| AEM90-AD10PR-D20-C20-L170-Z03-H | R | 20 | 170 | 20 |
| AEM90-AD10PR-D25-C25-L200-Z03-H | R | 25 | 200 | 25 |
| AEM90-AD13-D20-C20-L150-Z02-H | R | 20 | 150 | 20 |
| AEM90-AD13-D25-C25-L170-Z02-H | R | 25 | 170 | 25 |
