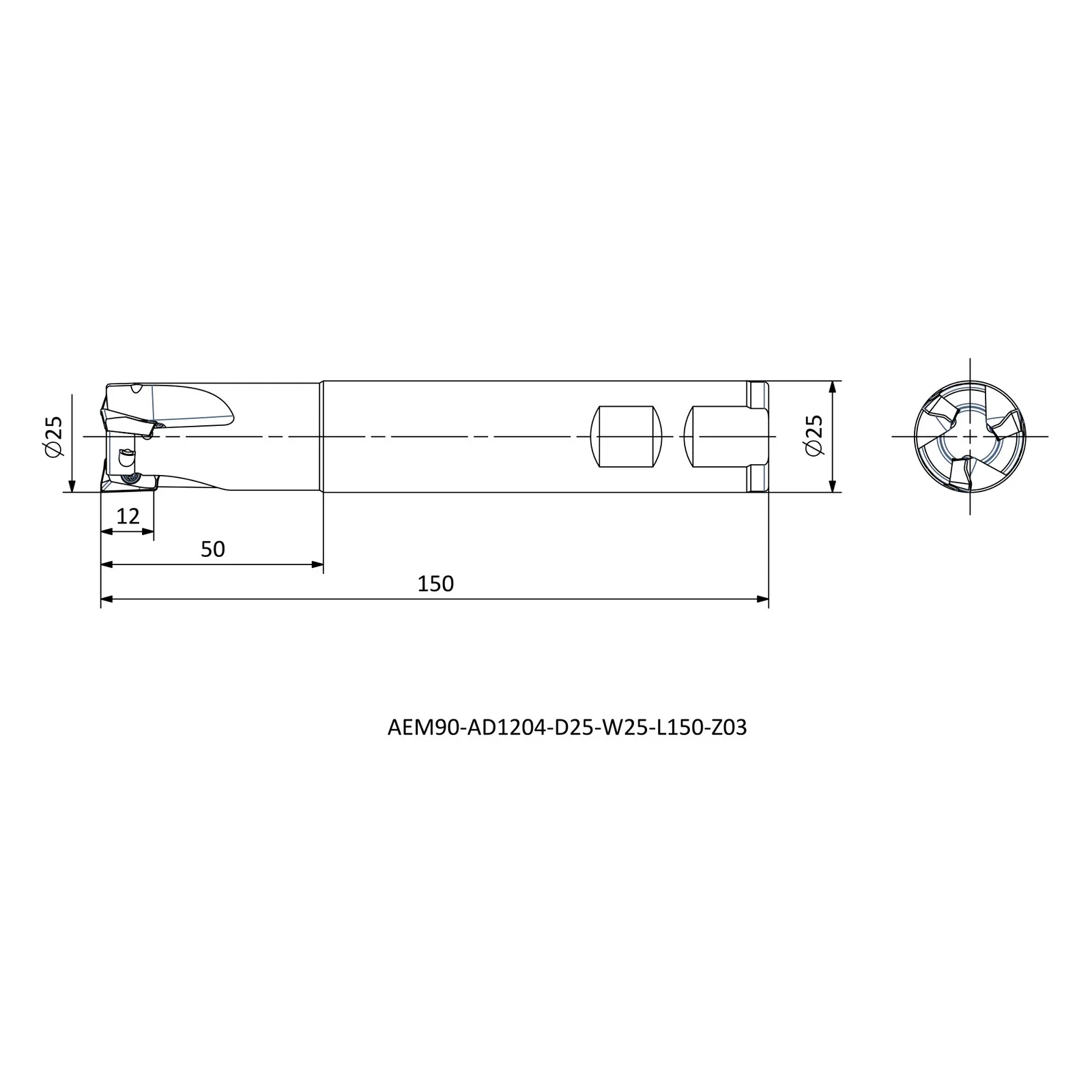

AEM90-AD1204-D25-W25-L150-Z03

Name: AEM90-AD1204-D25-W25-L150-Z03
Brand: Axior
SKU: AEM90-AD1204-D25-W25-L150-Z03

AEM90-AD-MT series · see all 26 sizes

This size is built for the insert designation ADMT 1204 (as listed in the catalogue data).

Specifications — AEM90-AD1204-D25-W25-L150-Z03

Dimensions in millimetres unless noted. Values are the manufacturer's published figures.

Product code	Cutting direction (hand)	Cutting diameter (mm)	Connection diameter (mm)	Functional length (mm)
AEM90-AD0803-D16-W16-L150-Z02	R	16	16	150
AEM90-AD10T3-D16-C16-L200-Z02	R	16	16	200
AEM90-AD10T3-D16-W16-L150-Z02	R	16	16	150
AEM90-AD10T3-D17-W16-L200-Z02	R	17	16	200
AEM90-AD10T3-D25-W25-L100-Z03-H	R	25	25	100
AEM90-AD0803-D21-W20-L200-Z03	R	21	20	200
AEM90-AD1606-D25-W25-L150-Z02	R	25	25	150
AEM90-AD0803-D20-W20-L150-Z03	R	20	20	150
AEM90-AD0803-D17-W16-L150-Z02	R	17	16	150
AEM90-AD10T3-D16-W16-L100-Z02-H	R	16	16	100
AEM90-AD10T3-D20-W20-L70-Z03	R	20	20	70
AEM90-AD1204-D21-C20-L150-Z02	R	21	20	150
AEM90-AD1204-D22-C20-L150-Z02	R	22	20	150
AEM90-AD1606-D32-W32-L150-Z03	R	32	32	150
AEM90-AD10T3-D20-W20-L100-Z03-H	R	20	20	100
AEM90-AD10T3-D25-W25-L100-Z04-H	R	25	25	100
AEM90-AD1204-D20-W20-L150-Z02	R	20	20	150
AEM90-AD1204-D26-W25-L180-Z03	R	26	25	180
AEM90-AD1204-D32-W32-L150-Z04	R	32	32	150
AEM90-AD10T3-D20-C20-L150-Z03	R	20	20	150
AEM90-AD10T3-D20-C20-L200-Z03	R	20	20	200
AEM90-AD1204-D25-W25-L150-Z03	R	25	25	150
AEM90-AD10T3-D17-W16-L150-Z02	R	17	16	150
AEM90-AD10T3-D20-W20-L150-Z03	R	20	20	150
AEM90-AD10T3-D25-W25-L150-Z03	R	25	25	150
AEM90-AD0803-D17-W16-L200-Z02	R	17	16	200
