Tool Holders / S-System End Mills
AEM90-AN1607-D40-C32-L150-Z03
AEM90-AN series · see all 2 sizes
Insert compatibility
This size is built for the insert designation AN.X 1607 (as listed in the catalogue data).

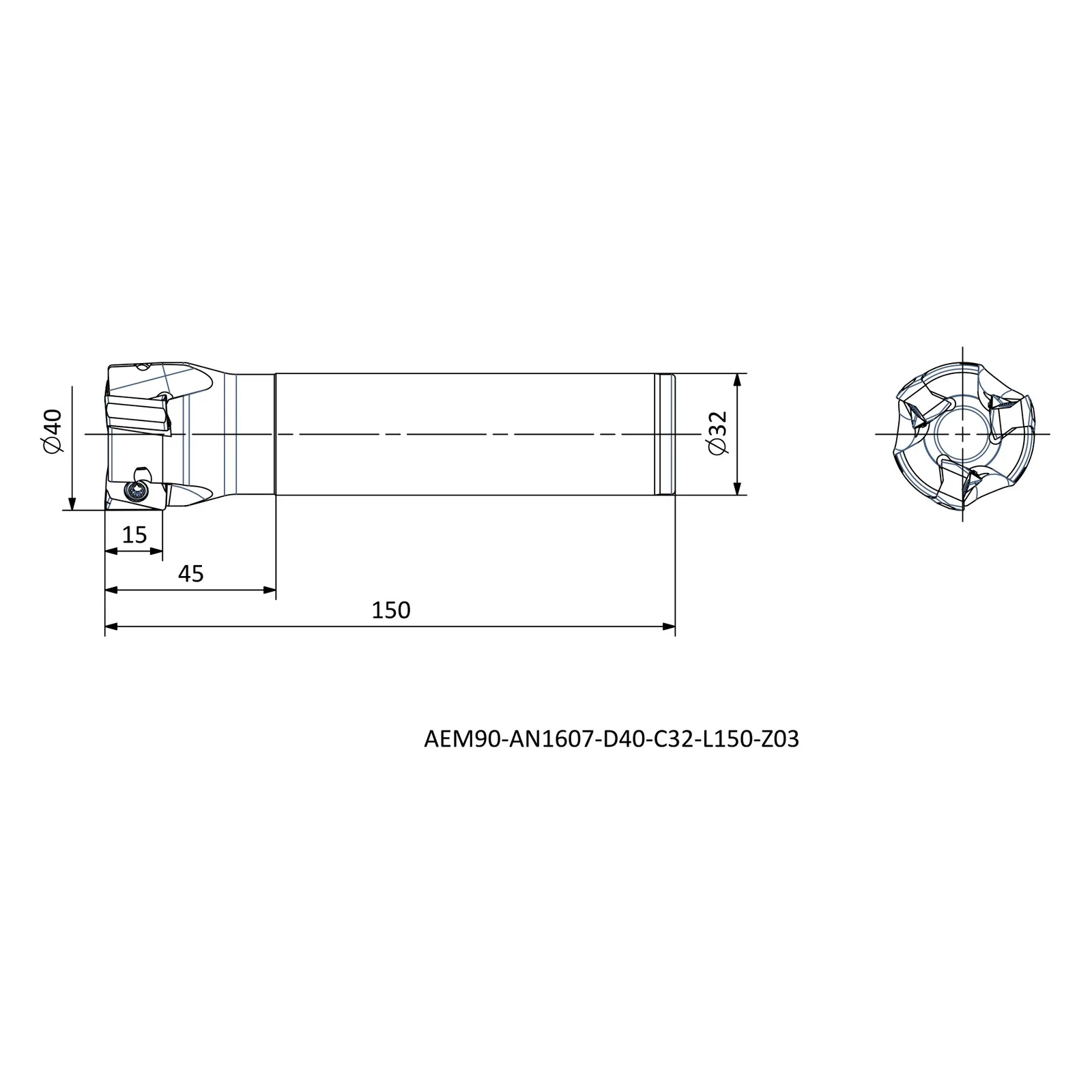

Specifications — AEM90-AN1607-D40-C32-L150-Z03
| Insert Code | Insert designation | AN.X 1607.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 40 |
| DCON | Connection diameter (mm) | 32 |
| LF | Functional length (mm) | 150 |
| LH | Head length (mm) | 50 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 15 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 2 sizes in AEM90-AN
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-AN1607-D32-C25-L150-Z02 | R | 32 | 25 | 150 |
| AEM90-AN1607-D40-C32-L150-Z03 | R | 40 | 32 | 150 |
