Tool Holders / S-System End Mills
AEM90-AO1236-D26-C25-L150-Z04-H
AEM90-AO series · see all 15 sizes
Insert compatibility
This size is built for the insert designation AO.. 1236 (as listed in the catalogue data).

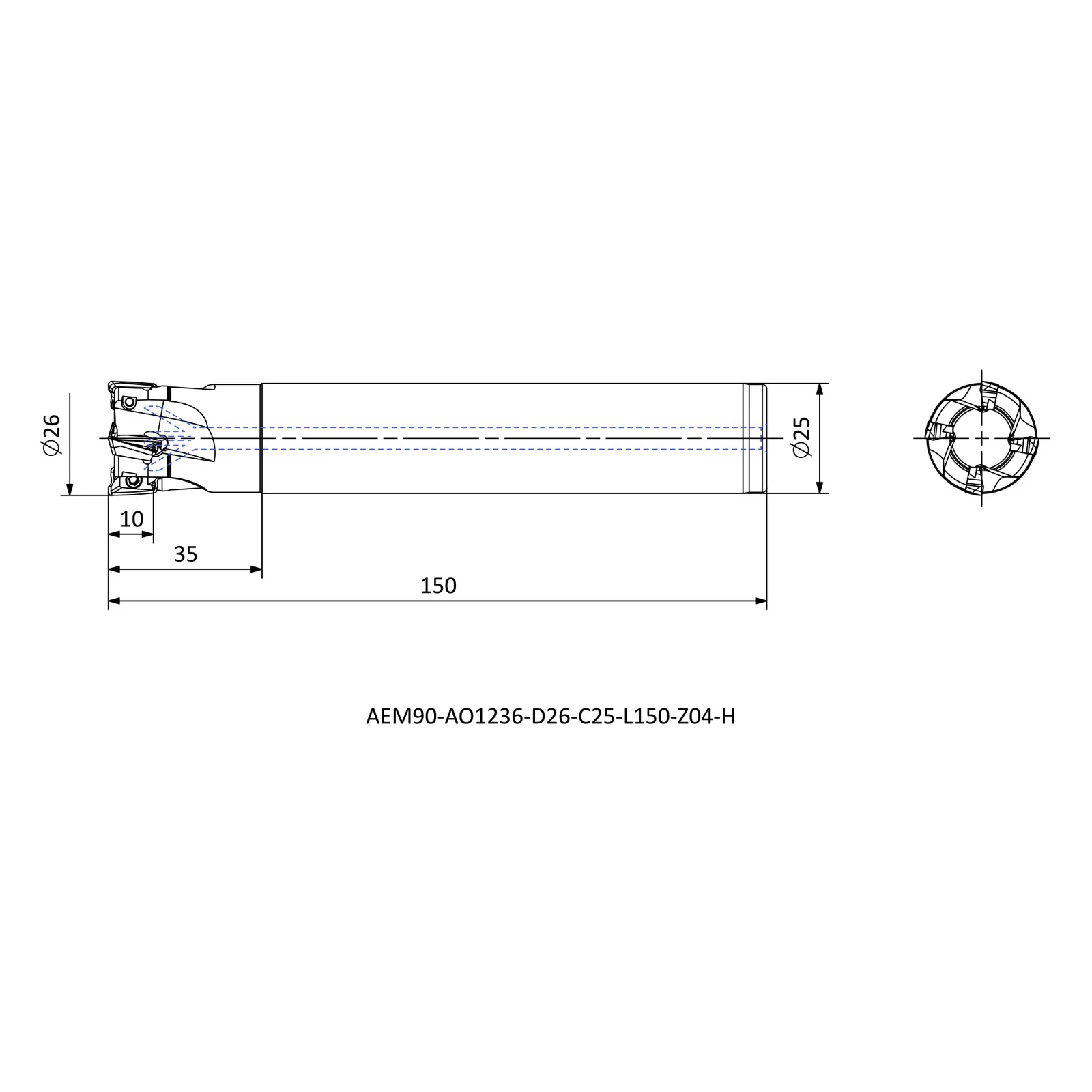

Specifications — AEM90-AO1236-D26-C25-L150-Z04-H
| Insert Code | Insert designation | AO.. 1236.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 26 |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 150 |
| LH | Head length (mm) | 35 |
| ZEFP | Effective cutting edges | 4 |
| APMX | Depth of cut, maximum (mm) | 10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 15 sizes in AEM90-AO
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-AO1236-D16-W16-L150-Z02 | R | 16 | 16 | 150 |
| AEM90-AO1236-D16-C16-L160-Z02-H | R | 16 | 16 | 160 |
| AEM90-AO1236-D17-C16-L150-Z02-H | R | 17 | 16 | 150 |
| AEM90-AO1236-D18-C16-L160-Z02-H | R | 18 | 16 | 160 |
| AEM90-AO1236-D20-C20-L160-Z03-H | R | 20 | 20 | 160 |
| AEM90-AO1236-D20-C20-L100-Z02 | R | 20 | 20 | 100 |
| AEM90-AO1236-D21-C20-L220-Z03-H | R | 21 | 20 | 220 |
| AEM90-AO1236-D22-C20-L160-Z03-H | R | 22 | 20 | 160 |
| AEM90-AO1236-D25-C25-L115-Z02 | R | 25 | 25 | 150 |
| AEM90-AO1236-D25-C25-L160-Z04-H | R | 25 | 25 | 160 |
| AEM90-AO1236-D25-W25-L150-Z03 | R | 25 | 25 | 150 |
| AEM90-AO1236-D26-C25-L150-Z04-H | R | 26 | 25 | 150 |
| AEM90-AO1236-D26-C25-L160-Z04-H | R | 26 | 25 | 160 |
| AEM90-AO1236-D32-W32-L150-Z04 | R | 32 | 32 | 150 |
| AEM90-AO1236-D32-C32-L160-Z05-H | R | 32 | 32 | 160 |
