Tool Holders / S-System End Mills

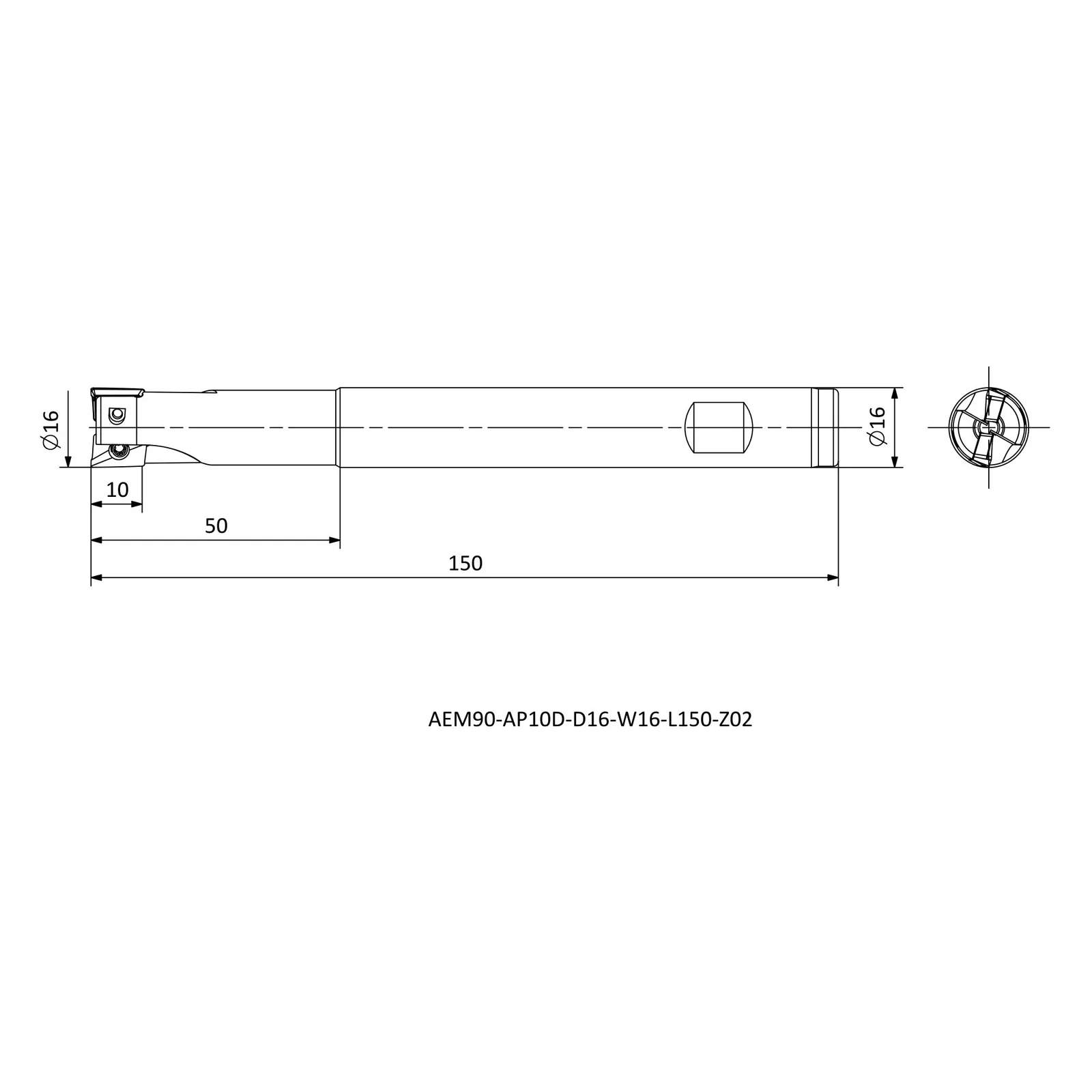

AEM90-AP10D-D16-W16-L150-Z02
AEM90-AP-DJT series · see all 8 sizes
Insert compatibility
This size is built for the insert designation AP.. 1003 (as listed in the catalogue data).
Specifications — AEM90-AP10D-D16-W16-L150-Z02
| Insert Code | Insert designation | AP.. 1003.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 16 |
| DCON | Connection diameter (mm) | 16 |
| LF | Functional length (mm) | 150 |
| LH | Head length (mm) | 50 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 10 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 8 sizes in AEM90-AP-DJT
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-AP10D-D25-W20-L150-Z03 | R | 25 | 20 | 150 |
| AEM90-AP16DJ-D25-W25-L150-Z02 | R | 25 | 25 | 150 |
| AEM90-AP16DJ-D32-C32-L200-Z03 | R | 32 | 32 | 200 |
| AEM90-AP16DJ-D32-W32-L150-Z03 | R | 32 | 32 | 150 |
| AEM90-AP10D-D20-W20-L150-Z03 | R | 20 | 20 | 150 |
| AEM90-AP16DJ-D32-C32-L180-Z03 | R | 32 | 32 | 180 |
| AEM90-AP16DJ-D25-C25-L200-Z02 | R | 25 | 25 | 200 |
| AEM90-AP10D-D16-W16-L150-Z02 | R | 16 | 16 | 150 |
