Tool Holders / S-System End Mills
AEM90-AP11KR-D25-W25-L115-Z03-H
AEM90-AP.-KRLY series · see all 7 sizes
Insert compatibility
This size is built for the insert designation AP.. 11T3 (as listed in the catalogue data).

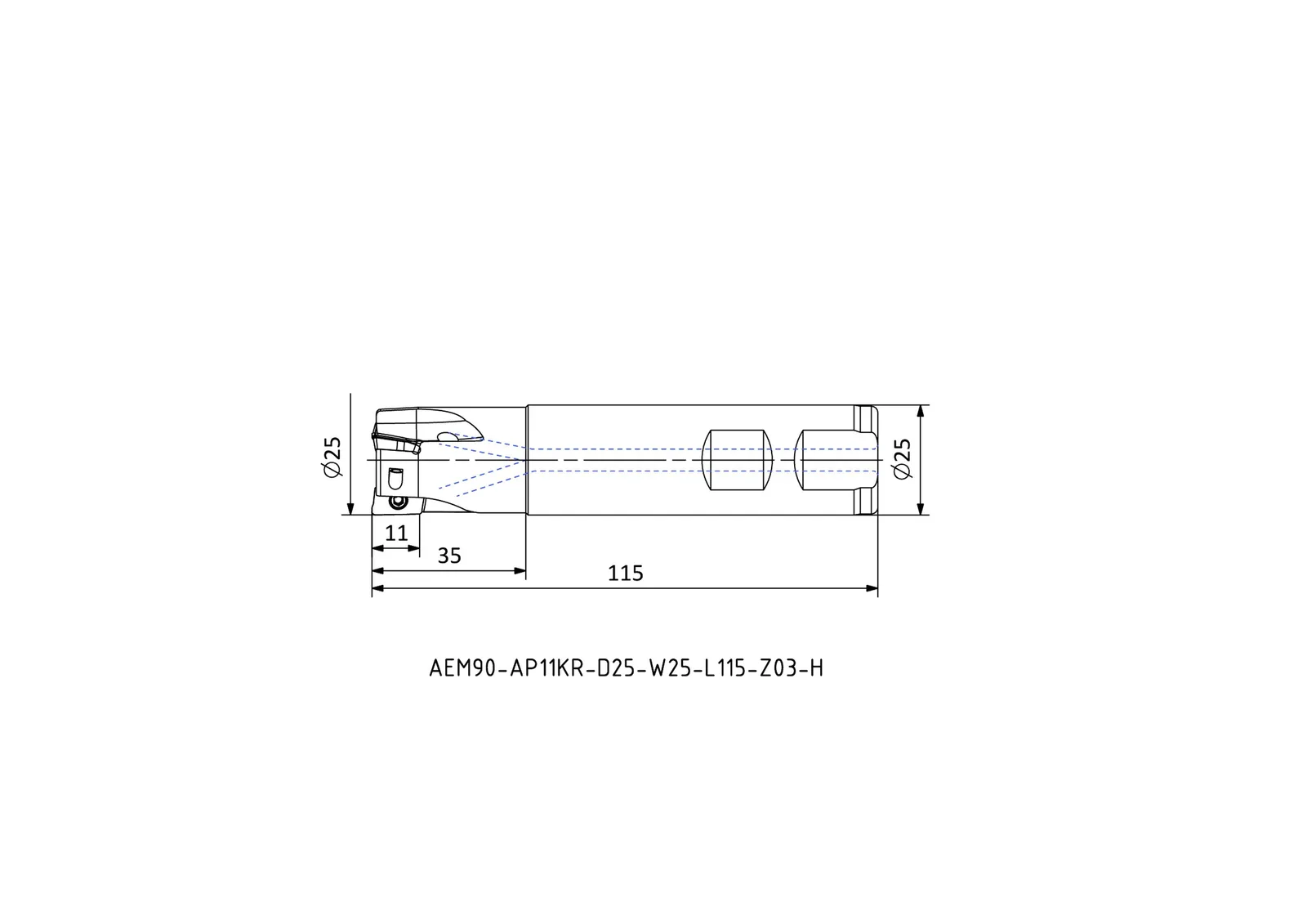

Specifications — AEM90-AP11KR-D25-W25-L115-Z03-H
| Insert Code | Insert designation | AP.. 11T3.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 25 |
| DCON | Connection diameter (mm) | 25 |
| LF | Functional length (mm) | 115 |
| LH | Head length (mm) | 35 |
| ZEFP | Effective cutting edges | 3 |
| APMX | Depth of cut, maximum (mm) | 11 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 7 sizes in AEM90-AP.-KRLY
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-AP11KR-D16-W16-L090-Z02-H | R | 16 | 16 | 90 |
| AEM90-AP11KR-D20-W20-L100-Z02-H | R | 20 | 20 | 100 |
| AEM90-AP11KR-D20-W20-L100-Z03-H | R | 20 | 20 | 100 |
| AEM90-AP11KR-D22-W20-L115-Z03-H | R | 22 | 20 | 115 |
| AEM90-AP11KR-D25-W25-L115-Z03-H | R | 25 | 25 | 115 |
| AEM90-AP11KR-D32-W32-L125-Z04-H | R | 32 | 32 | 125 |
| AEM90-AP11KR-D25-C25-L180-Z04 | R | 25 | 25 | 180 |
