Tool Holders / S-System End Mills
AEM90-AP0903-D17-C16-L150-Z02
AEM90-AP-KRLY series · see all 14 sizes
Insert compatibility
This size is built for the insert designation APMT 0903 (as listed in the catalogue data).

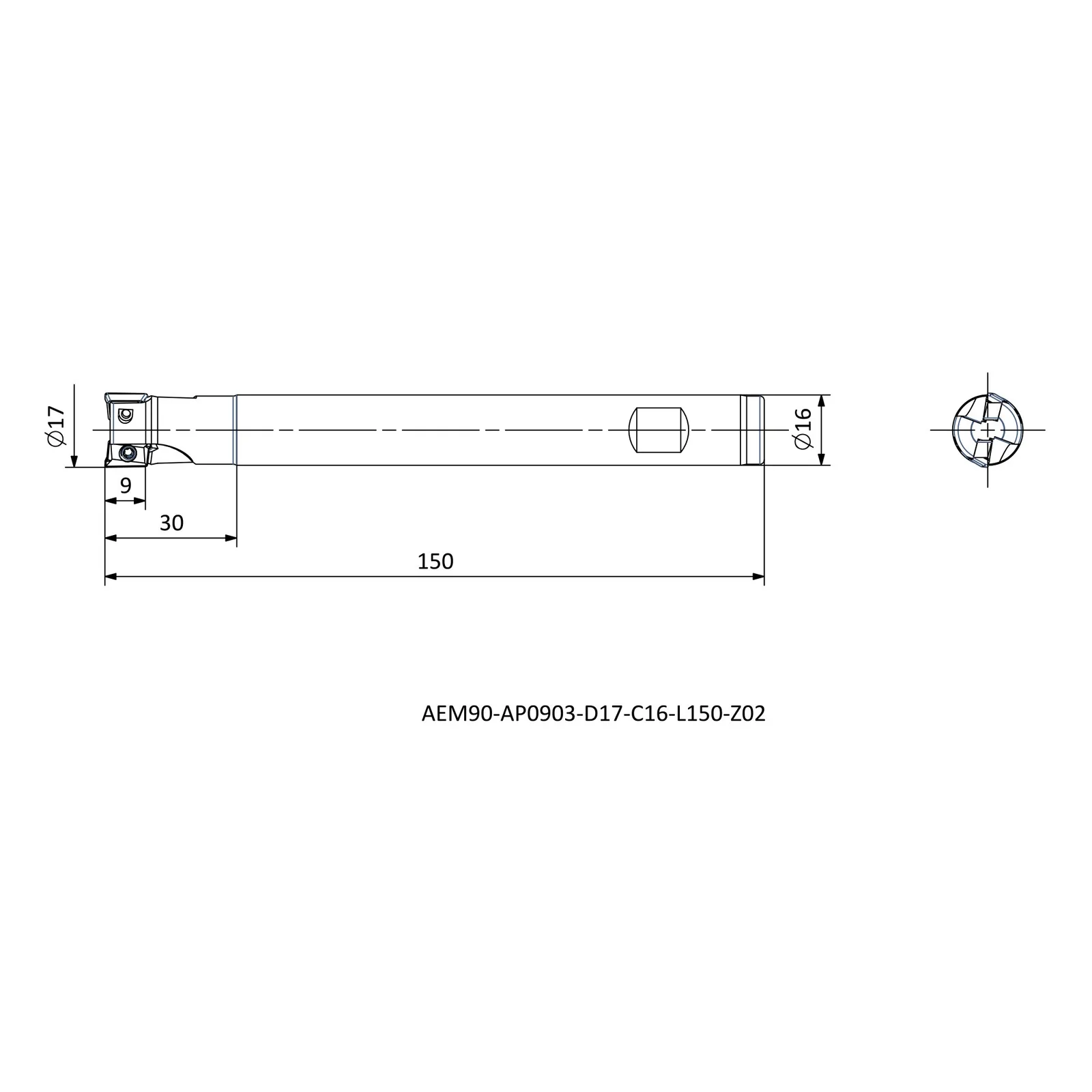

Specifications — AEM90-AP0903-D17-C16-L150-Z02
| Insert Code | Insert designation | APMT 0903.. |
|---|---|---|
| Product Direction | Cutting direction (hand) | R |
| DC | Cutting diameter (mm) | 17 |
| DCON | Connection diameter (mm) | 16 |
| LF | Functional length (mm) | 150 |
| LH | Head length (mm) | 30 |
| ZEFP | Effective cutting edges | 2 |
| APMX | Depth of cut, maximum (mm) | 9 |
Dimensions in millimetres unless noted. Values are the manufacturer's published figures.
All 14 sizes in AEM90-AP-KRLY
| Product code | Cutting direction (hand) | Cutting diameter (mm) | Connection diameter (mm) | Functional length (mm) |
|---|---|---|---|---|
| AEM90-AP0903-D18-C16-L090-Z02-H | R | 18 | 16 | 90 |
| AEM90-AP0903-D25-C25-L200-Z02 | R | 25 | 25 | 200 |
| AEM90-AP06-D10-C10-L120-Z02 | R | 10 | 10 | 120 |
| AEM90-AP0903-D16-C16-L090-Z02 | R | 16 | 16 | 90 |
| AEM90-AP0903-D20-C20-L110-Z03 | R | 20 | 20 | 110 |
| AEM90-AP0903-D21-C20-L150-Z02 | R | 21 | 20 | 150 |
| AEM90-AP0903-D25-C25-L120-Z03 | R | 25 | 25 | 120 |
| AEM90-AP0903-D12-C16-L080-Z01-H | R | 12 | 16 | 80 |
| AEM90-AP0903-D20-C20-L200-Z02 | R | 20 | 20 | 200 |
| AEM90-AP0903-D25-C25-L150-Z03 | R | 25 | 25 | 150 |
| AEM90-AP06-D12-C12-L120-Z02 | R | 12 | 12 | 120 |
| AEM90-AP0903-D16-C16-L150-Z02 | R | 16 | 16 | 150 |
| AEM90-AP0903-D20-C20-L150-Z02 | R | 20 | 20 | 150 |
| AEM90-AP0903-D17-C16-L150-Z02 | R | 17 | 16 | 150 |
